Product Description

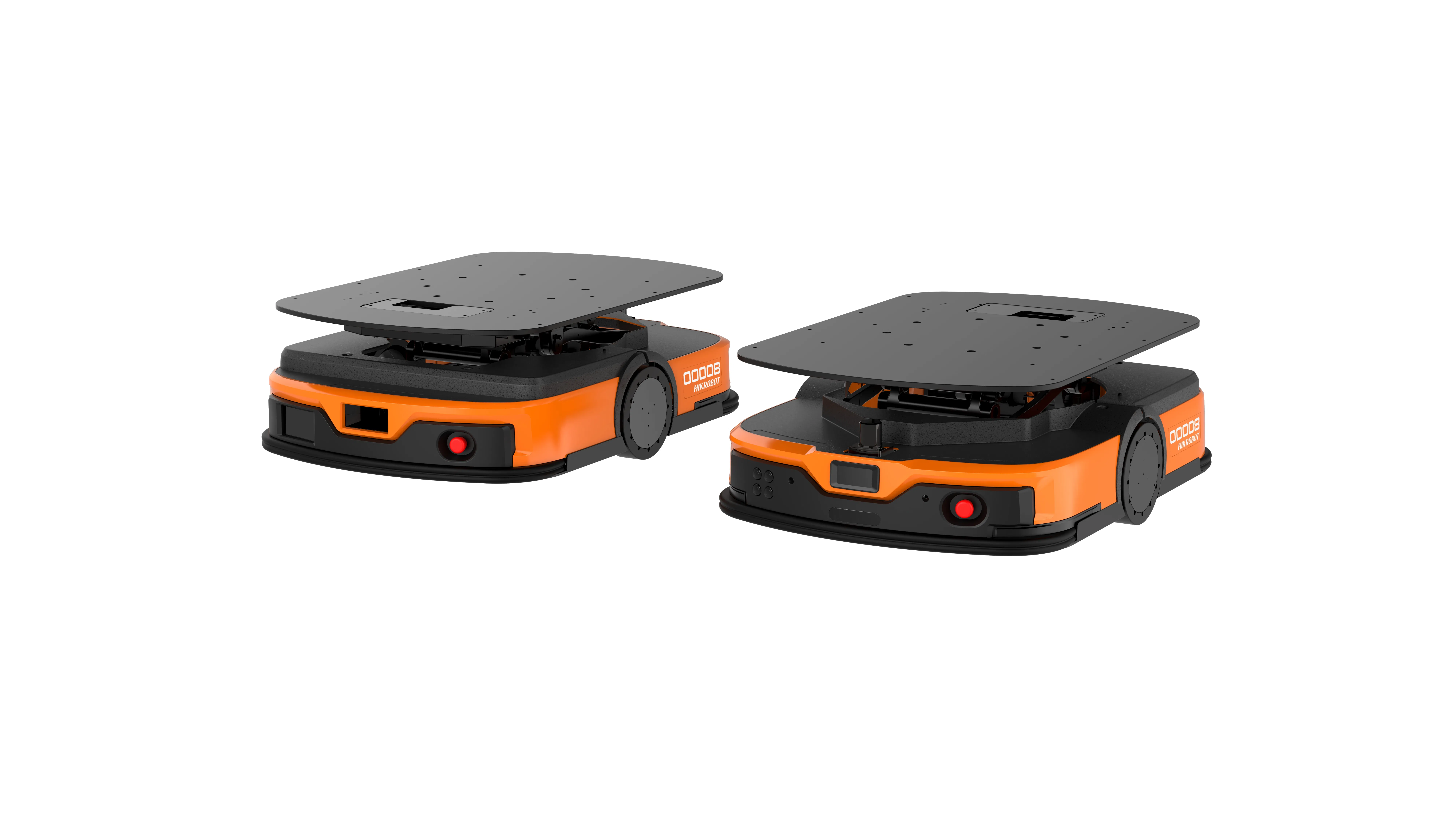

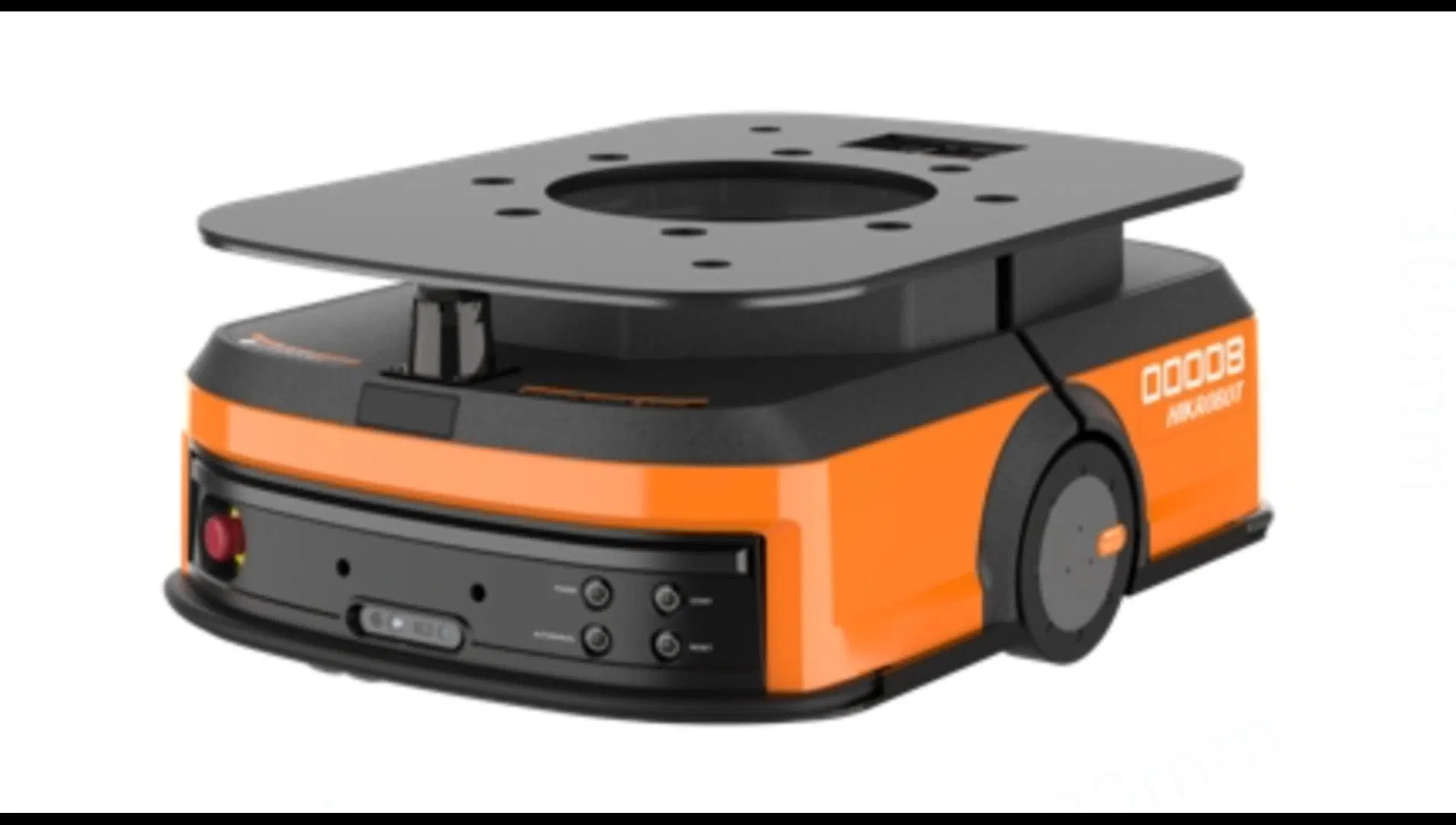

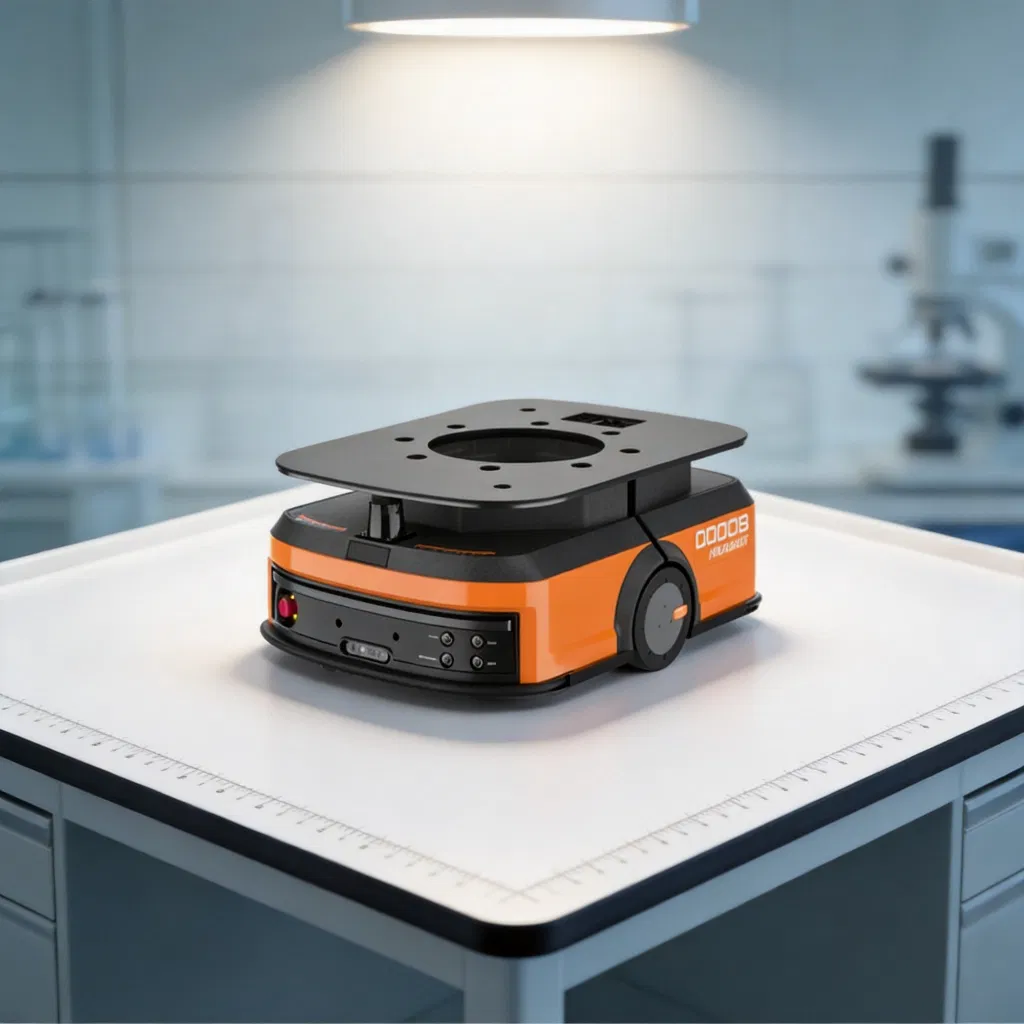

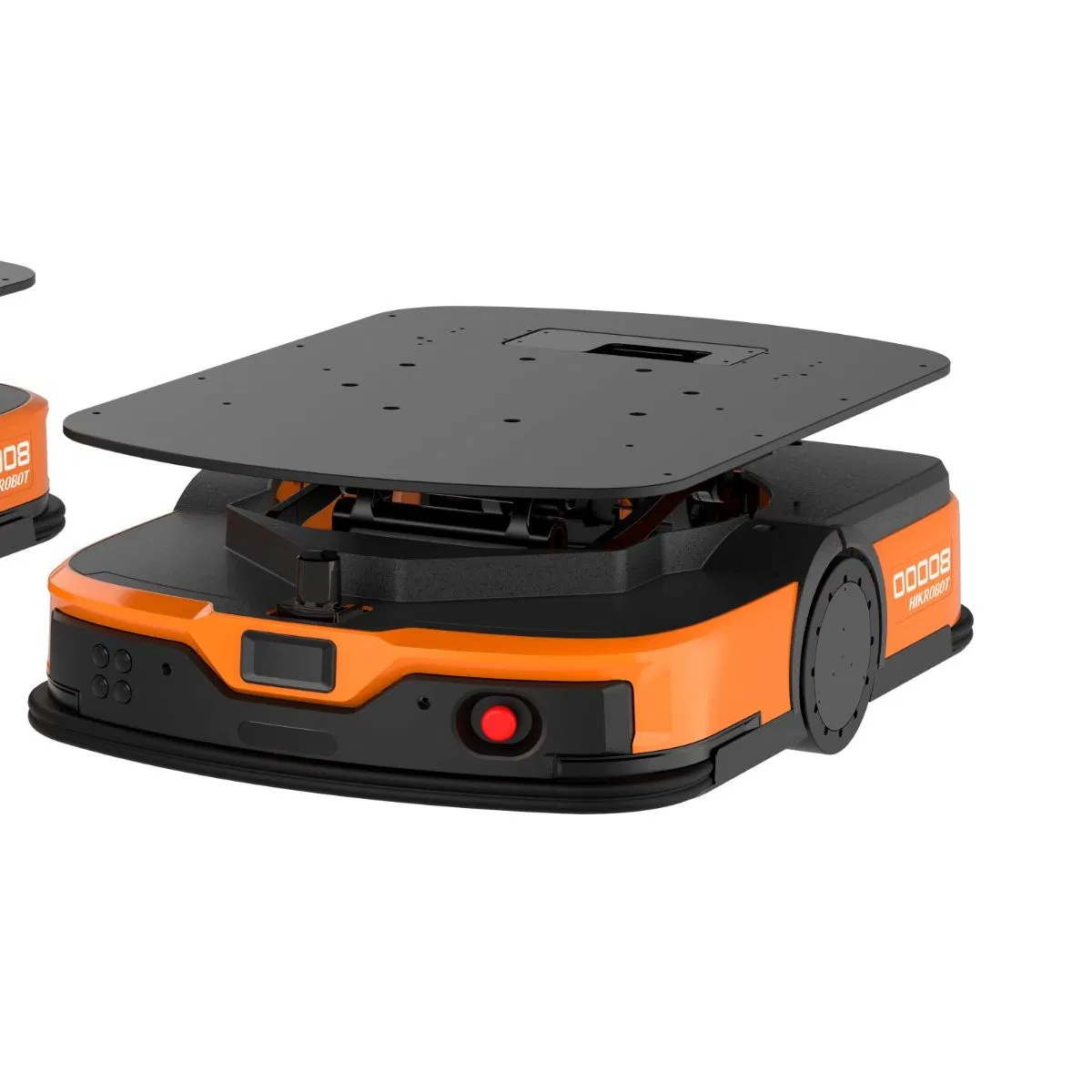

Warehouse Agv Mobile Robot for Hassle-Free Pallet Movement

A lifting LMR is an automated logistics device designed for autonomous loading, lifting, and transport. Equipped with a reliable lifting structure, it elevates goods to designated positions for carrying and storage tasks. This system is widely applied in modern industrial and warehousing logistics to boost productivity and reduce operational costs.

Basic Specifications

Parameter Details
Model NO.	Q3-600D
Load Capacity	600kg
Safety Features	Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner
Type	AMR (Autonomous Mobile Robot)
Rotation Diameter (mm)	820
Chassis Above Ground (mm)	30
Lifting Platform Dimension (mm)	724 * 504
Lifting Stroke (mm)	60
Lifting Structure Type	Electric
Weight (Kg)	93
Rated Load (Kg)	600
Navigation Mode	2D Barcode / L-Slam / V-Slam
Human-Machine Interaction	Touchscreen
Other Control Mode	Point to Point Control
Specification	780 * 545 * 300
Origin	China

Packaging & Delivery

Package Size: 135.00cm * 110.00cm * 50.00cm

Package Gross Weight: 220.000kg

Key Features

High Extensibility

Extension modules: enables rapid deployment and easy operation.
Third-party devices: configurable one-stop third-party integrations.

High Flexibility

Integrated sensing: combines data from multiple sensors.
Precise control: high-accuracy motion and docking.
Navigation modes: V-SLAM, L-SLAM, and 2D barcode options.
Safety protection: multi-directional and layered safety measures.

Strong Scene Adaptability

High load ratio: exceptional loading capacity.
Long endurance: efficient transmission and lasting battery.
Carrier adaptability: transfers various-sized carriers.
Cluster collaboration: manages large-scale cluster scheduling.

Application Environments

Photovoltaic cell transport

Lithium PACK line transport

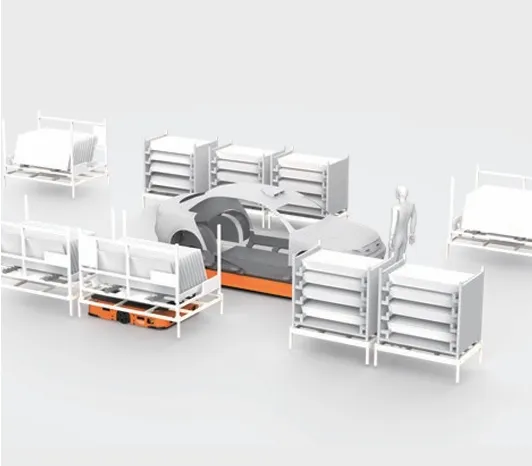

Automotive parts transport

Technical Specifications

Custom configurations are available upon request to fit specific engineering needs.

Model	Q2-400D	Q3-600D	Q7-1000E	Q8-2000A
Front protection	Laser	Laser	Laser	Laser
Sound and light alarm	Support	Support	Support	Support
Bumper strip	Support	Support	Support	Support
Emergency stop button	Support	Support	Support	Support
Rated running speed (empty) (mm/s)	2000	2000	2000	2000
Rated acceleration (empty) (mm/s²)	800	1200	1000	500
Positioning accuracy (mm)/(°)	± 10 / ± 1	± 10 / ± 1	± 10 / ± 1	± 10 / ± 1
Run time (h)	6-8	6-8	6-8	6-8
Charging time (h)	≤ 1.5	≤ 1.5	≤ 1.5	≤ 1.5

Project Cases

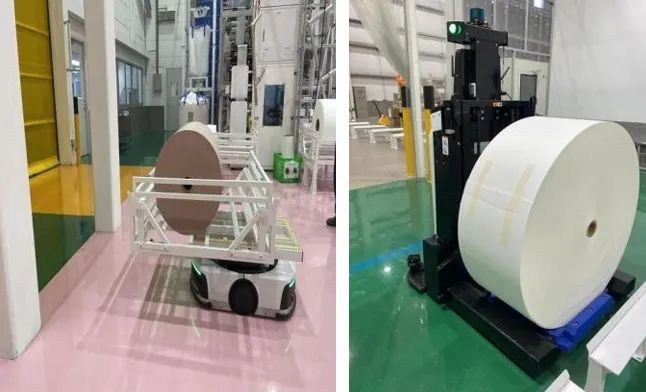

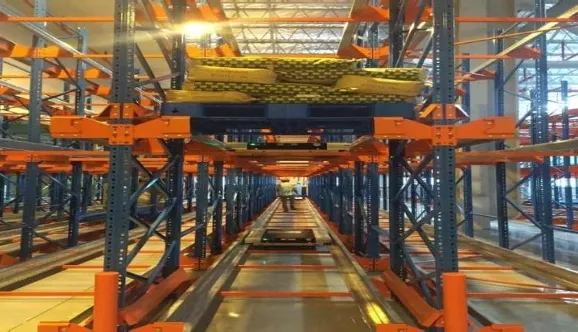

Case Study 1: Shuttle & Latent Robot Integration

Project Highlights: Automated warehouse, AGVs, shuttle racking system, forklift, and latent mobile robots.

Project Scope: 60 shuttles, 30 racks, 840 storage spots, 52 LMRs. Capacity of 100 pallets per hour (P/H). Delivery timeline: 30 days for shuttle-based warehouse setup; 60 days for AGV logistics and handling deployment.

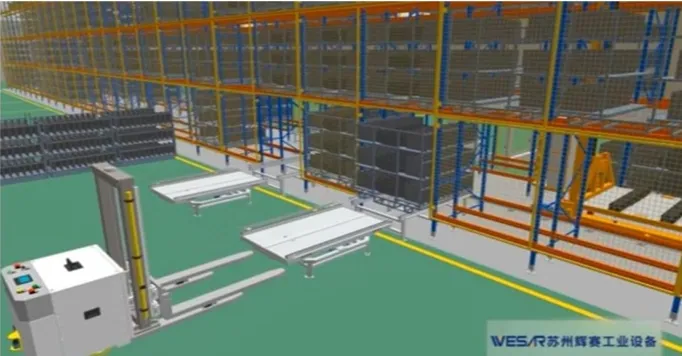

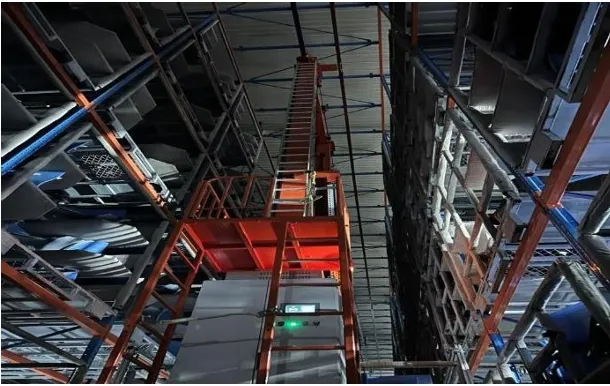

Case Study 2: Stacker Crane & FMR System

Project Highlights: Automated warehouse design, on-site stacker crane rendering.

Project Scope: 1 stacker crane, 2 racks, 468 storage spots, 4 FMRs. Capacity of 46 pallets per hour (P/H). Timeline: 70 days for engineering design, 100 days to construct and deliver the automated warehouse, and 30-day delivery for the AGV logistics systems.

After Sales Service

Standard Warranty: 12 months or 2,000 hours, whichever comes first.
Extended Warranty: Optional coverage available up to 36 months.
Global Support: 24/7 technical assistance and prompt spare parts supply.
Training: Comprehensive on-site or remote operations and maintenance training.

Company Overview

Our organization provides high-efficiency smart factory solutions, including intelligent shelving, logistics robots, and warehouse system designs. Our capability spans consulting, software development, advanced hardware manufacturing, and reliable after-sales support for ASRS, AGVs, and AMRs.

Founded in 2014, our expert team consists of more than 100 dedicated specialists in software algorithms and mechanical hardware design. Collaborating with global leaders in automotive, 3C electronics, and pharmaceutical sectors, we expanded international operations in 2023, delivering automated projects in Bulgaria, Germany, and Thailand.

Why Choose Us?

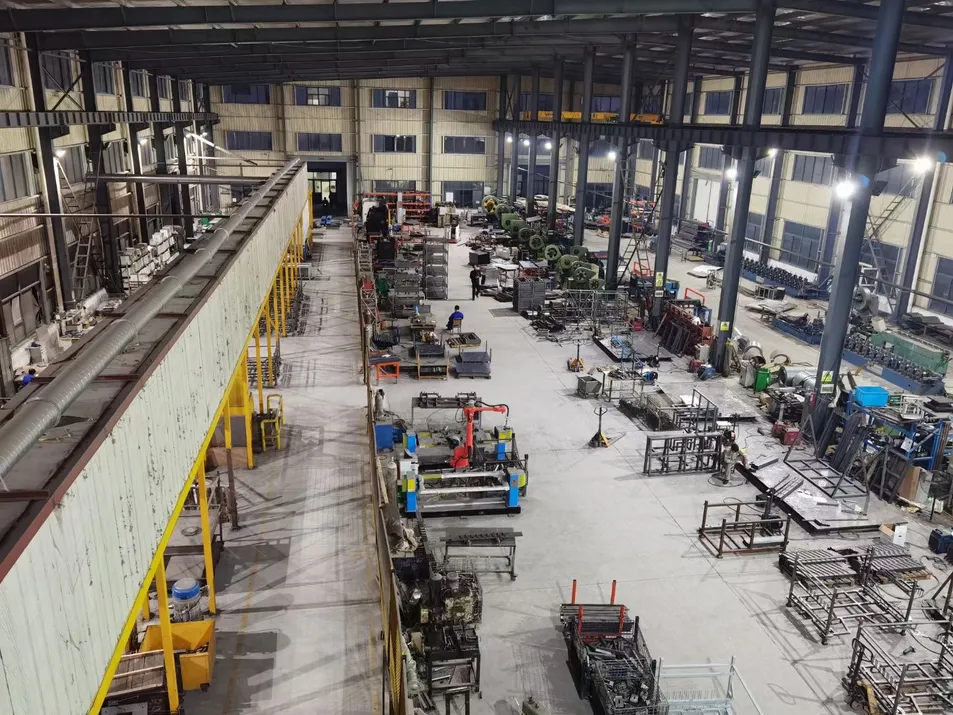

Our operation comprises over 110 skilled employees, featuring 6 core software developers and 16 experienced system integration engineers, operating from a modern 7,000-square-meter manufacturing plant.

System Planning & Consultation
Customized Structure Design

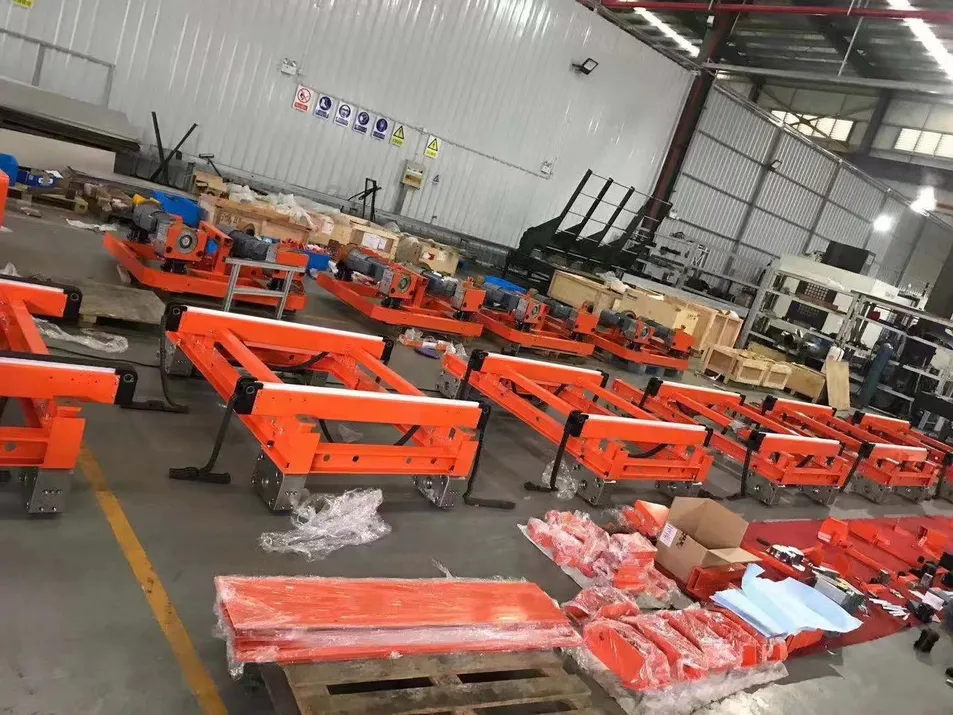

Precision Hardware Manufacturing
On-site Installation & Commissioning
Comprehensive After-sales Maintenance

Product Portfolio

Our solutions target operational efficiency across multiple domains:

Intelligent Warehousing Systems
Latent Mobile Robots (LMR)
Forklift Mobile Robots (FMR)
Carton Transfer Units (CTU)
Proprietary Software Control Platforms

Frequently Asked Questions

What is the typical lead time for standard and customized orders?

Standard AMR and AGV models typically ship within 15–30 days. For custom configurations or tailored structural designs, the lead time is approximately 30–45 days.

Do you offer on-site after-sales service and technical support overseas?

Yes, we provide global technical support, remote troubleshooting, and on-site support through our network of partnered service centers in major target regions.

Can we request customized load capacities or attachment dimensions?

Absolutely. We offer customizable configuration options including custom dimensions, lifting stroke variations, and specific carrier interface structures to suit your factory needs.

What export documents do you provide for custom clearance?

We supply a complete export documentation package containing Commercial Invoices, Packing Lists, Bills of Lading, Certificate of Conformity (COC), and any necessary regional compliance documentation.

What navigation modes are supported by your mobile robots?

Our AMRs support multiple advanced navigation methods including V-SLAM (Visual SLAM), L-SLAM (Laser SLAM), and 2D barcode navigation, allowing flexible deployment in various environments.

How can we place an order or request a quotation?

Please reach out to our team with your project requirements. We will analyze your warehouse layout and send you a detailed engineering proposal and commercial quotation.
