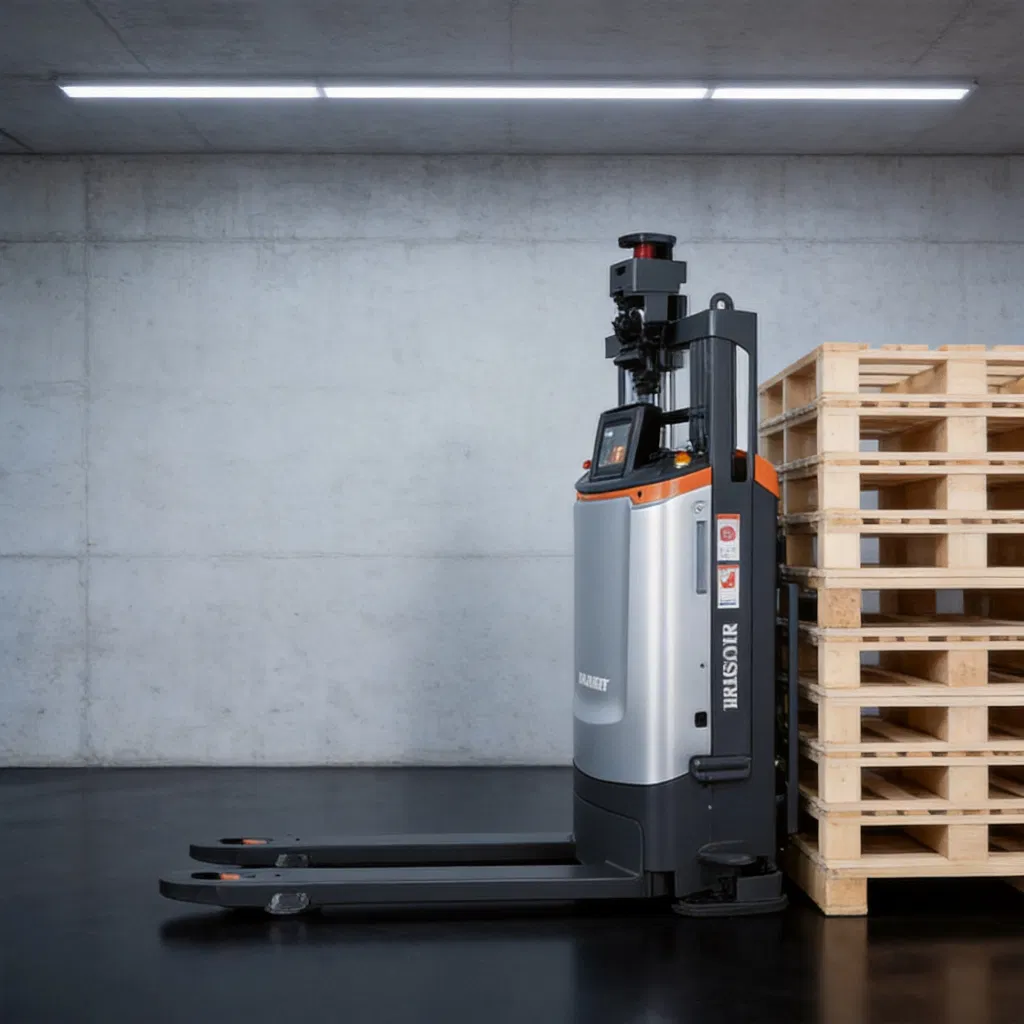

1000kg Omnidirectional Pallet Handling Material Handling Compact Warehouse Agv AMR Forklift Mobile Robot

1 / 5

1000kg Omnidirectional Pallet Handling Material Handling Compact Warehouse Agv AMR Forklift Mobile Robot

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Omnidirectional Pallet Handling Material Handling Compact Warehouse Agv AMR Forklift Mobile Robot

Basic Info

Model NO. F1-1000U

Load Capacity 1000 kg

Safety Features Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner

Type AMR (Autonomous Mobile Robot)

Dimension (L × W × H) (mm) 1650*990*1984

Weight (with Battery) (Kg) 825

Rated Load (Kg) 1000

Load Center Distance (C) (mm) 600

Fork Lifting Height (H3+H13) (mm) 2049

Fork Above Ground After Lowering (H13) 99

Fork Dimension (S/E/L) (mm) 60/255/1215

Applicable Pallet Dimension (mm) 1200*1200

Fork Outer Width (B5) (mm) 720

Other Control Mode Point to Point Control

Transport Package Wooden Box

Specification 1650*990*1984

Origin China

Packaging & Delivery

Package Size 114.00cm * 196.00cm * 225.00cm

Package Gross Weight 800.000kg

Product Description

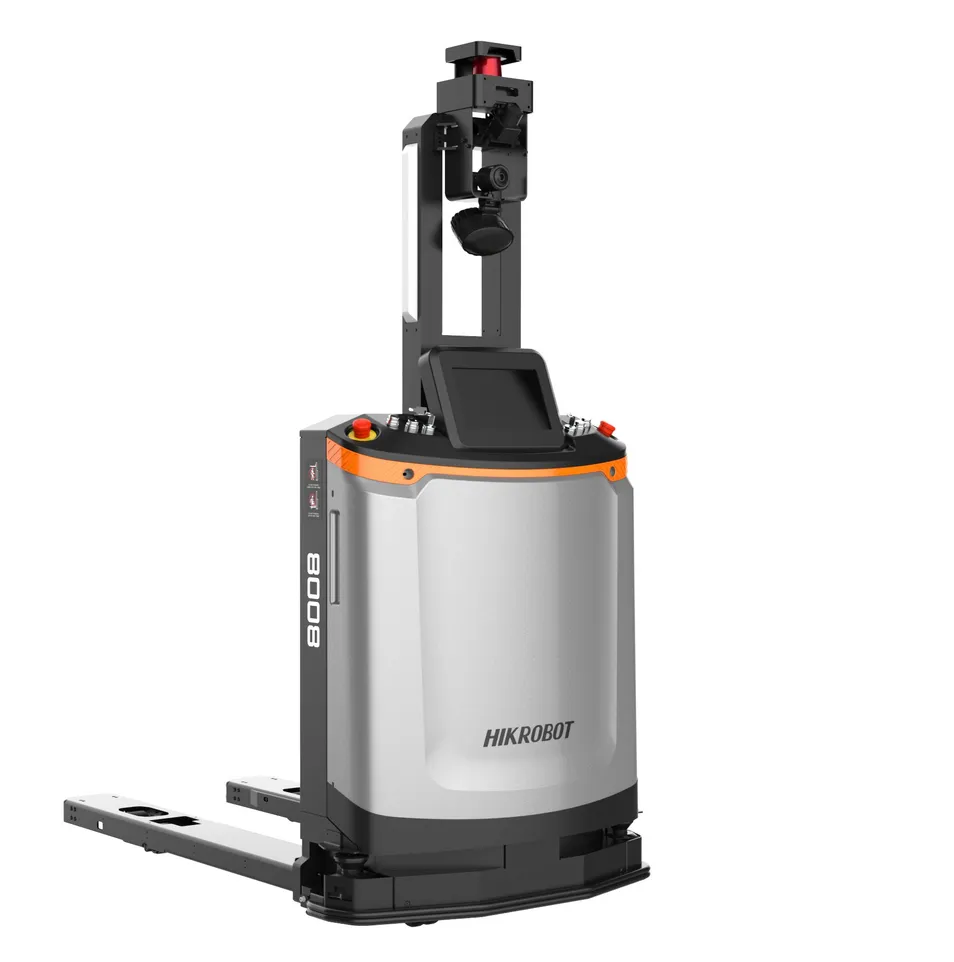

1000kg Omnidirectional Pallet Handling Robot

Key Features

Superior Performance

Efficient transportation: maximum steady running speed up to 1.5m/s
Wide load coverage: fully independent design, with load ranging from 300kg to 1,400kg
Safe and reliable: 360° stereo sensing, recognizing various environments and objects
Precise positioning: millimeter-level positioning accuracy, combining laser and vision positioning

Full-Featured Movement

Arbitrary attitude movement: straight line, skew, arc, in-place rotation
Carrier recognition: autonomous fork picking based on carrier offset
Suspended low detection: supports detecting suspended obstacles and low obstacles

Rich Scenarios & Models

Human-machine collaboration: organic synergy between manual and autonomous operations
Rich scenarios: covering lineside carrying, material stacking, and deep storage
Diversified docking devices: dock with other types of AMRs, elevators, automatic doors, conveyors, and third-party devices

Specifications

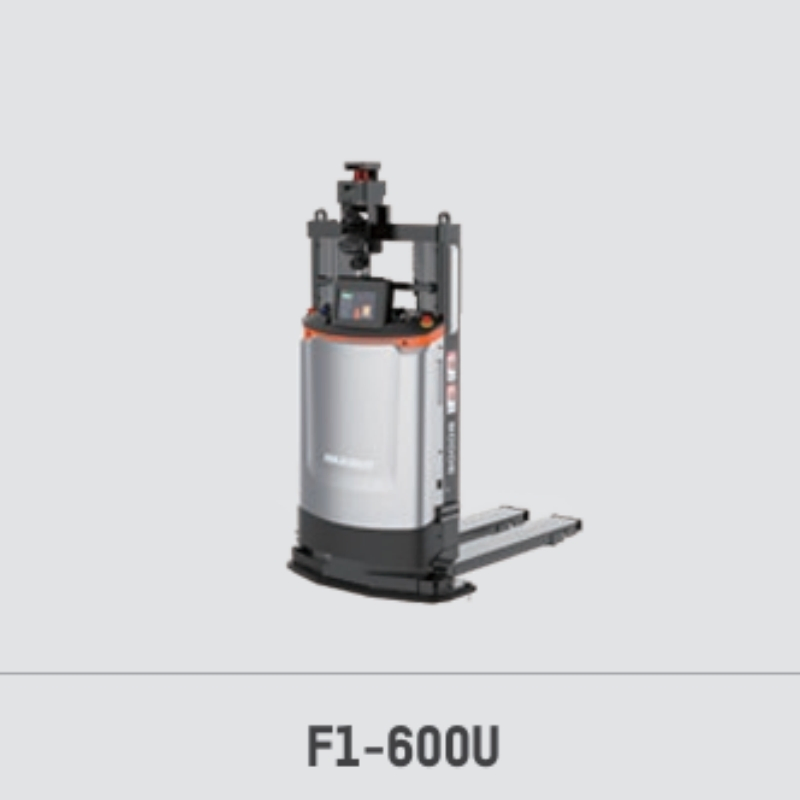

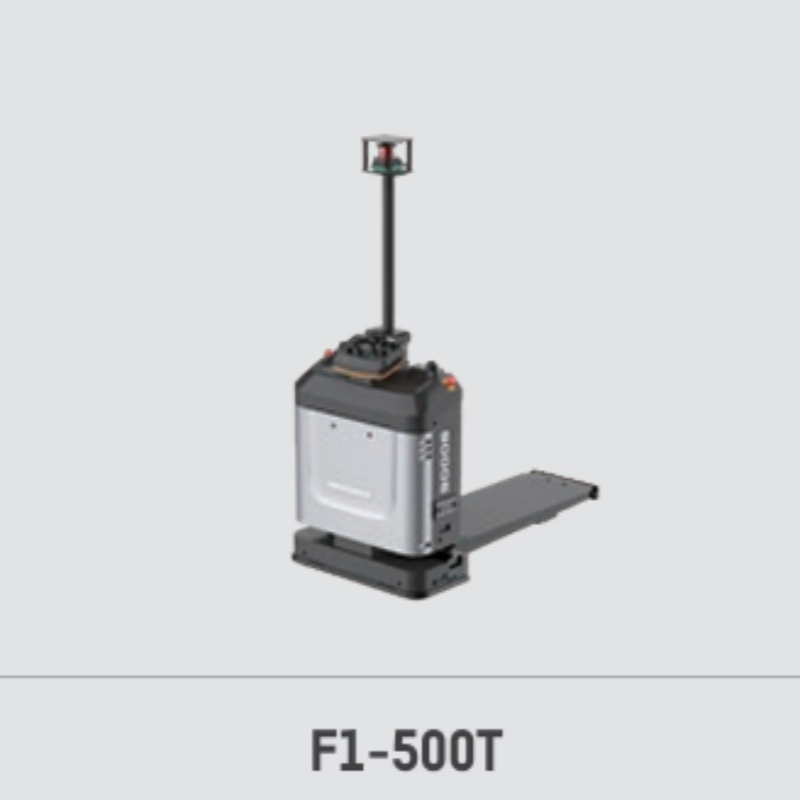

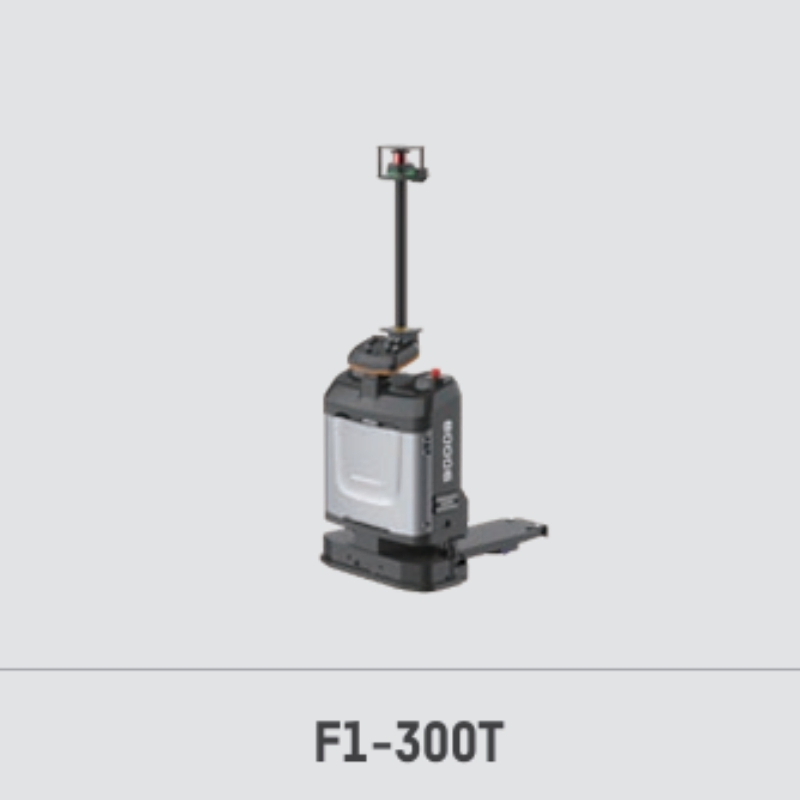

Model	F1-300T	F1-500T	F1-600U	F1-1000U
Rated running speed (m/s)	1	1	1.2	1.2
Positioning accuracy (mm)/(°)	±10/1	±10/1	±10/1	±10/1
Min. rotation radius (Wa) (mm)	585	727	933	933
Motion method	Omnidirectional driving	Omnidirectional driving	Omnidirectional driving	Omnidirectional driving
Min. aisle width (Ast) (mm)	1370	1754	1866	1866
Run time (h)	6-8	6-8	6-8	6-8
Charging time (h)	≤ 1.5	≤ 1.5	≤ 1.5	≤ 2
Laser obstacle avoidance	Support	Support	Support	Support
Recorder	Support	Support	Support	Support
Bumper Strip Detection	Support	Support	Support	Support
Pallet in-position detection	Support	Support	Support	Support
Fork collision detection	Support	Support	Support	Support
Emergency stop button	Support	Support	Support	Support
Indication light	Support	Support	Support	Support
Sound and light alarm	Support	Support	Support	Support
Human-machine interaction	Touchscreen	Touchscreen	Touchscreen	Touchscreen
Navigation Mode	L-SLAM/ 3D L-SLAM (Customizable)	L-SLAM/ 3D L-SLAM (Customizable)	L-SLAM/ 3D L-SLAM (Customizable)	L-SLAM/ 3D L-SLAM (Customizable)
Fork size customization	Customizable	Customizable	Customizable	Customizable
Pallet attitude recognition	Customizable	Customizable	Customizable	Customizable
Pallet binding recognition	Customizable	Customizable	Customizable	Customizable

Application Scenarios

(Custom configurations available upon request.)

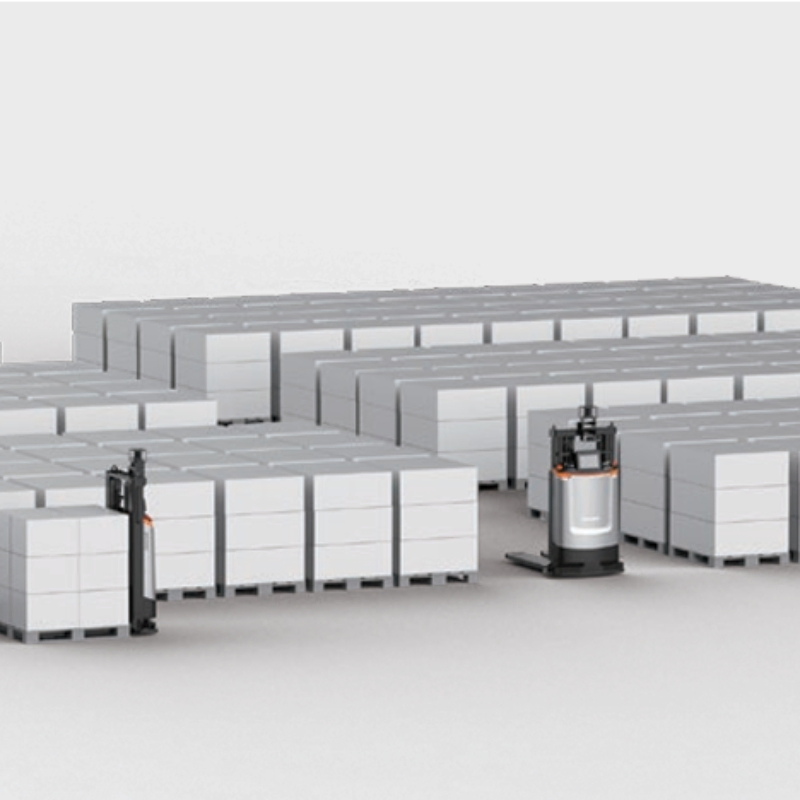

Deep storage warehouse

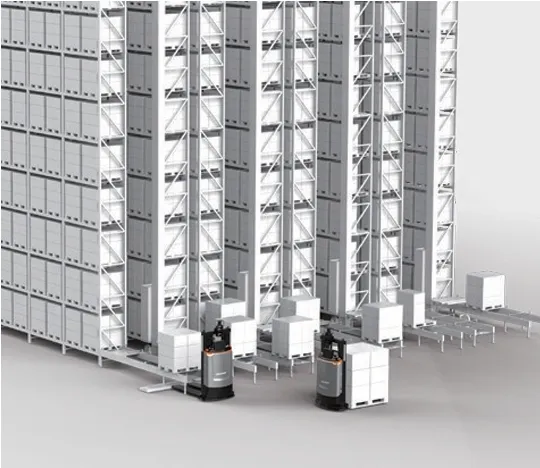

Conveyor docking

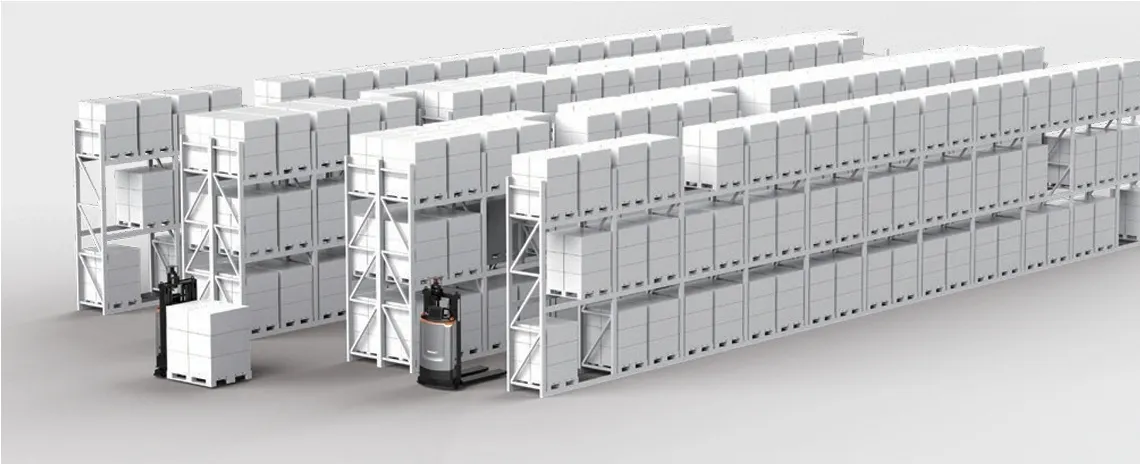

Multi-level rack (low level transferring)

Project Cases

Automated Storage System Project for Raw Material Warehouse

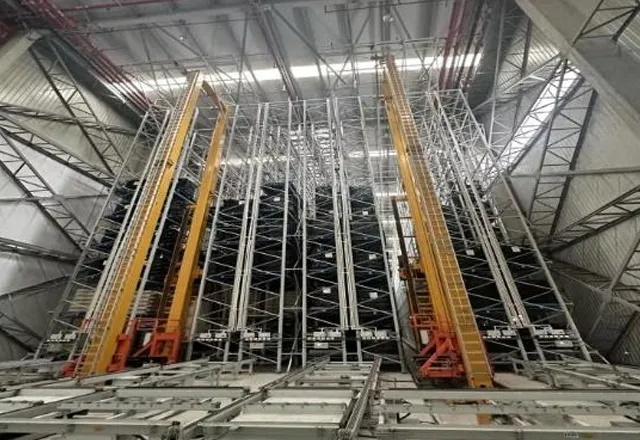

Automated Storage System Raw Material Warehouse Stacker Crane Racks

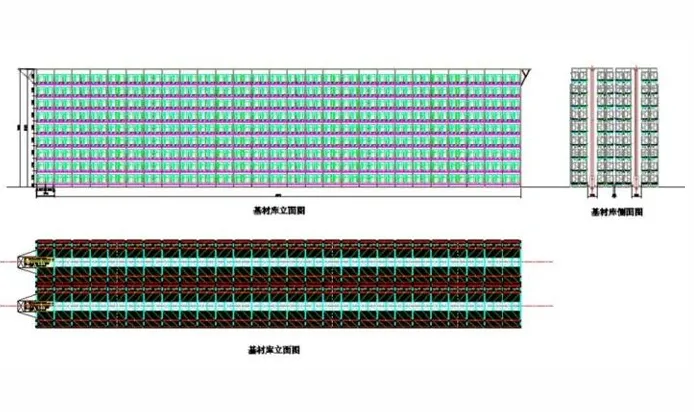

Automated Storage System Project Operations

Project Highlights

Automated warehouse design, stacker crane and system design

Project Scope

2 stacker cranes, 4 sets of racks, 3,888 storage locations.
Inbound and outbound flow rate of 92 pallets per hour (P/H).
79 days for engineering design.
200 days for automated warehouse construction and final delivery.

Automated Warehouse & LMR Project — Home Appliance Manufacturing Industry

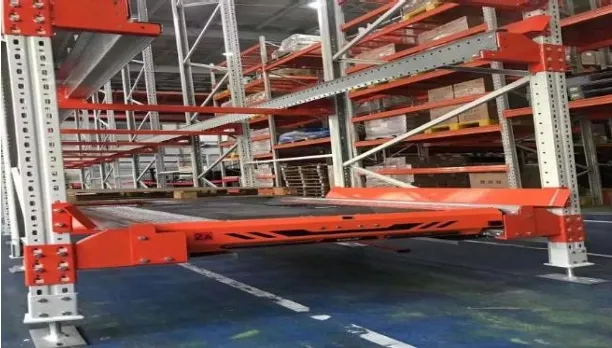

Automated Warehouse LMR Project Home Appliance Industry

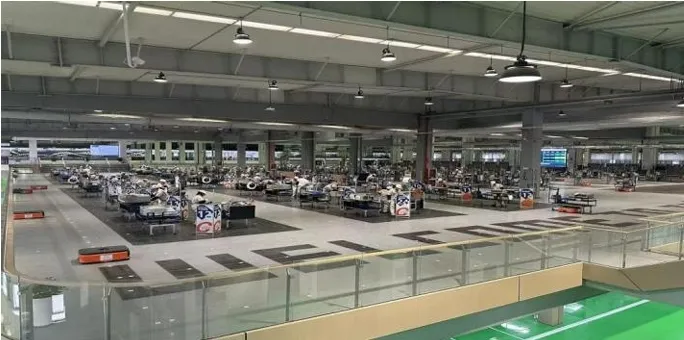

AGV Shuttle Racking System Home Appliance Manufacturing

Project Highlights

Automated warehouse, AGVs, shuttle racking system, latent mobile robots

Project Scope

Automated warehouse system, 120 LMRs.
100 pallets per hour (P/H) and 40% reduction in labor costs.
30 days for shuttle-based automated warehouse delivery.
120 days for AGV logistics and material handling delivery.

Company Profile

Smart Factory Solutions Factory Layout Production line

A professional enterprise providing one-stop smart factory solutions. Core services encompass the production of smart shelving, intelligent logistics and warehousing handling robots, and the design and delivery of smart warehouses. The company specializes in offering customized, expert-level integrated solutions, with service coverage including consulting and planning, software development, the manufacturing of automated production and assembly equipment, shelving manufacturing, automated storage and retrieval systems (ASRS), delivery of AGVs and AMRs, after-sales support, and the integration and application of advanced technologies.

Long-term, in-depth collaborations have been established with renowned enterprises from Japan, Europe, and other regions, spanning industries such as automotive parts manufacturing, 3C product manufacturing, and the pharmaceutical sector. Officially expanding internationally in 2023, smart warehouse projects have been successfully completed and delivered in multiple countries including Bulgaria, Germany, and Thailand.

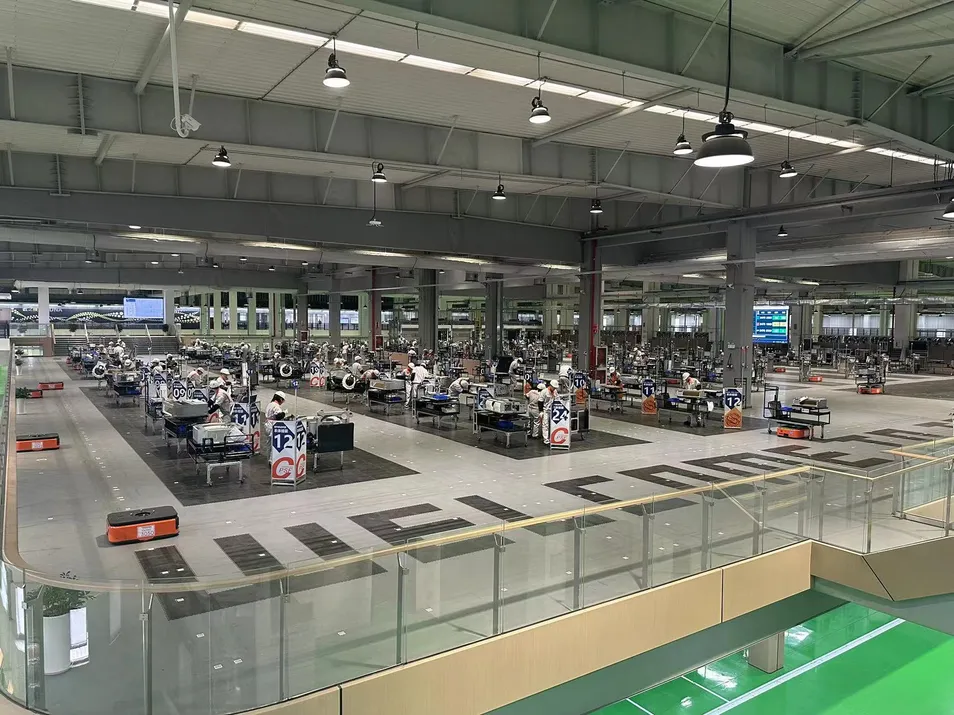

Other warehouse material handling products

Why Choose Us?

Comprising 110+ hardworking employees, 6 talented software developers, and 16 experienced electrical and mechanical engineers, along with a 7,000-square-meter factory.

Business scope:

Planning & Design
Manufacture & Installation
After-sales Service & Support

Other Products

Intelligent warehousing Systems
Latent Mobile Robot
Forklift Mobile Robot
Carton Transfer Unit
Software platforms

After Sales Service Support

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Frequently Asked Questions

How do we select the right AGV for our operations?

We recommend selecting the AGV hardware based on the customer's actual operational requirements. Our team will analyze your requirements and propose the most suitable AGV configuration.

Will the final AGV model match the catalog specifications?

As AGV hardware is continuously updated and upgraded, the final model and version details shall be subject to the final project specifications provided officially.

Is dedicated software required for AGV operation?

Yes. To enable AGV operation, dedicated robot dispatching and control software is required to work in conjunction with the AGV hardware.

Can customers handle AGV commissioning and implementation independently?

AGV commissioning typically requires a high level of professional expertise and hands-on experience. This part of the deployment is handled directly by our engineering team to ensure safe and precise operations.

Can different types of AGVs run simultaneously at the same site?

Yes, absolutely. The system supports the operation of multiple AGVs, including different models and payload types, coordinating together at the same site.

What initial details are required to begin an AGV implementation?

In the initial stage, we require the factory layout, pallet dimensions, and material details. Contact our technical team for specific data requirements.

What is the typical timeline for AGV implementation?

The implementation timeline varies depending on the project scope and specifications. In some standard cases, deployment can be completed in as little as two weeks.
