Explore our engineering-focused cantilever configurations, featuring customized load distribution designs and heavy galvanization for indoor and outdoor operations.
Unlocking Cubic Density, Structural Integrity, and Safe Handling Protocols for Non-Standard Unit Loads in Global Supply Chains.
Unlike standard selective pallet racks that utilize a frontal framework of columns and beams to support uniform loads, cantilever racking systems rely on a structural design comprising vertical columns, solid base anchors, horizontal arms, and cross-bracing sets. The structural integrity relies heavily on managing the *bending moment* (torque) generated by loads extended on the cantilever arms. For design and safety validation, we apply Finite Element Analysis (FEA) to simulate load distribution and prevent arm deflection.
Industrial storage requires meticulous calculation of arm deflection ratios (typically limited to L/180 or L/250, depending on application severity). When designing for heavy pipes, timber, steel plates, or non-standard profiles, material distribution, column height, and run alignment dictate whether a single-sided or double-sided rack profile is required to distribute horizontal forces safely without structural failure.
A primary architectural choice for procurement managers is selecting between roll-formed and hot-rolled structural steel cantilever profiles. Roll-formed systems utilize high-gauge sheet steel cold-formed into C-shaped profiles, which offers a cost-effective, versatile solution for light to medium-duty applications. Structural steel profiles utilize hot-rolled wide-flange H-beams (such as Q355B or Q235B structural grade steel), offering extreme load resistance, durability against forklift impacts, and robust support in high-bay configurations.
| Engineering Attribute | Roll-Formed Steel Systems | Structural Hot-Rolled H-Beam Systems |
|---|---|---|
| Steel Grade | Q235B Cold-Rolled Strip Steel | Q355B / ASTM A572 Structural Grade |
| Load Capacity Per Arm | Up to 1,500 kg (Typical limit) | Up to 5,000 kg+ (Severe-duty engineered) |
| Impact Resistance | Moderate (Susceptible to heavy denting) | Very High (Absorbs forklift collisions) |
| Height Configurations | Up to 6,000 mm | Up to 12,000 mm (High-bay integration) |
| Corrosion Resistance Options | Powder Coating | Hot-Dipped Galvanizing (HDG) / Powder Coating |
In modern industrial and logistics operations, industrial space is a premium asset. Real estate inflation and warehousing costs have driven logistics operators to optimize every cubic meter of storage. For businesses handling oversized materials (such as aluminum profiles, PVC tubing, timber pallets, rebar packs, and heavy industrial rolls), traditional floor stacking leads to high safety risks, product damage, and poor warehouse throughput.
By implementing a strategic cantilever footprint, supply chains can transition from horizontal floor storage to vertically stacked configurations. This modification increases storage density by up to 250% while offering selective 100% accessibility to every stored unit SKU, reducing material retrieval cycle times and minimizing damage to high-value structural components.
A global strategic partner building intelligent, data-driven, and highly resilient warehouse infrastructure systems.
Hangzhou RAB Logistics Co., Ltd. is a professional provider of intelligent warehousing and modern logistics solutions. Built on years of industry experience and continuous technological innovation, RAB Logistics is committed to helping enterprises transform traditional warehouse operations into highly automated, data-driven, and efficient supply chain systems.
Since its establishment, the company has focused on integrating advanced logistics technologies such as Warehouse Management Systems (WMS), Automated Storage and Retrieval Systems (AS/RS), AGV/AMR robotics, intelligent sorting systems, and real-time data visualization platforms. These solutions enable clients to achieve higher operational accuracy, faster fulfillment speed, and significantly reduced logistics costs.
With strong capabilities in system consulting, solution design, equipment integration, software development, and project implementation, Hangzhou RAB Logistics Co., Ltd. delivers end-to-end intelligent logistics solutions tailored to diverse industry needs. Our expertise ensures seamless coordination between hardware and software, creating scalable and future-ready warehouse infrastructures.
RAB Logistics serves a wide range of industries including manufacturing, cross-border e-commerce, fast-moving consumer goods (FMCG), pharmaceuticals, and automotive parts. Our solutions are trusted for their stability, innovation, and proven performance in complex, high-demand environments. By choosing Hangzhou RAB Logistics Co., Ltd., you are selecting a long-term strategic partner dedicated to building smarter warehouses, optimizing supply chains, and empowering businesses with sustainable competitive advantages in the era of intelligent logistics.
Every cantilever rack structure undergoes structural calculation using FEA tools, ensuring safety factors comply with ANSI/RMI MH16.1, FEM 10.2.09, and AS4084 guidelines.
Experienced in high-volume export procedures to North America, Europe, Oceania, and Southeast Asia. We ensure secure container packaging and efficient freight dispatch.
We combine mechanical engineering with automated control layers, integrating smart shuttles and cranes directly with client WMS/WES host architectures.
From high-grade raw steel processing to automated powder coating, our China-based manufacturing facility ensures structural consistency and precision tolerances.
Navigating geopolitical shifts, rising steel tariffs, and transport bottlenecks with optimized sourcing and state-of-the-art automation.
In the highly competitive industrial racking sector, China-based manufacturers continue to provide substantial benefits for international buyers. Leveraging the local raw steel supply chain in regions like Zhejiang and Jiangsu, RAB Logistics secures access to high-grade mill-certified Q235B and Q355B structural steel. This local supply minimizes exposure to global commodity price volatility.
Our facility combines automated CNC structural sawing, robotic spot-welding networks, and specialized electrostatic powder coating lines to maintain high efficiency. The integration of high-speed tooling reduces human error, keeps dimensional deviation within ±1mm, and lowers labor overheads. These savings are passed directly to our export partners through competitive pricing structures.
Additionally, our logistics hub in Hangzhou facilitates rapid access to Ningbo and Shanghai ports. We manage all export documentation, custom tariff coding, and load optimization protocols. This ensures that when containers arrive at local distribution yards in North America, Western Europe, or Australia, unloading is straightforward and zero components are damaged in transit.
Adapting cantilever installations to diverse global terrains while planning for automated, high-density AS/RS integration.
Custom structural calculations for earthquake-prone zones like Western US, Chile, and Japan. Utilizing oversized base-anchors and high-ductility steel grades to handle severe dynamic loads.

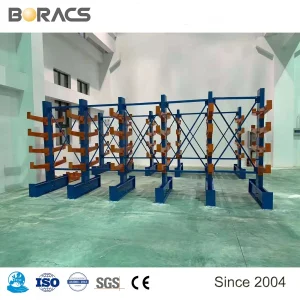

Hot-dip galvanized (HDG) treatments exceeding 80 microns thickness. Ideal for harsh, salty coastal marine atmospheres or chemical storage yards.
Moving toward fully unmanned storage. Standard cantilever configurations can be integrated with computerized crane tracks, automated shuttles, and WMS software to track long profiles in real time.
The next iteration of long-materials storage involves motorized telescopic cantilever designs. In these systems, arms extend and retract on command using remote controls or software signals. This approach allows overhead cranes or heavy-duty side-loaders to access stock instantly without requiring wide service aisles. Minimizing operational space by up to 50% lets you reallocate floor space to high-yield manufacturing tasks.
Ensuring absolute compliance with municipal codes, regional structural mandates, and safety certifications.
Deploying heavy industrial rack configurations requires adherence to local building codes and occupational safety laws. Without appropriate engineering documentation, operators face compliance issues, fines, and safety hazards.
RAB Logistics ensures every racking project meets or exceeds relevant regional standards, including:
Additionally, we supply custom structural layout drawings and calculation reports to support the local permit approval process, simplifying municipal approval steps.
Technical answers to common engineering, procurement, and installation questions regarding heavy-duty cantilever storage.
Select specialized storage solutions designed for automated warehouses, long pipe transport, and high-density material staging.
