ℹ Basic Information
Safety Features
Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner
Type
AGV (Automated Guided Vehicle)
Stop Angle Accuracy
+-1degree
Navigation Docking Accuracy
+-10mm
Application Scenarios
Indoor
Audio-Visual Alarm
Light Indicators and Voice Prompts
Laser Obstacle Avoidance
Front and Rear Dual Lasers with 360° Full Coverage
Navigation Method
Hybrid Navigation: Dual-Laser Slam Qr Code
Transport Package
Wooden Crate
Specification
1720L*990W*1820H mm
📦 Product Description

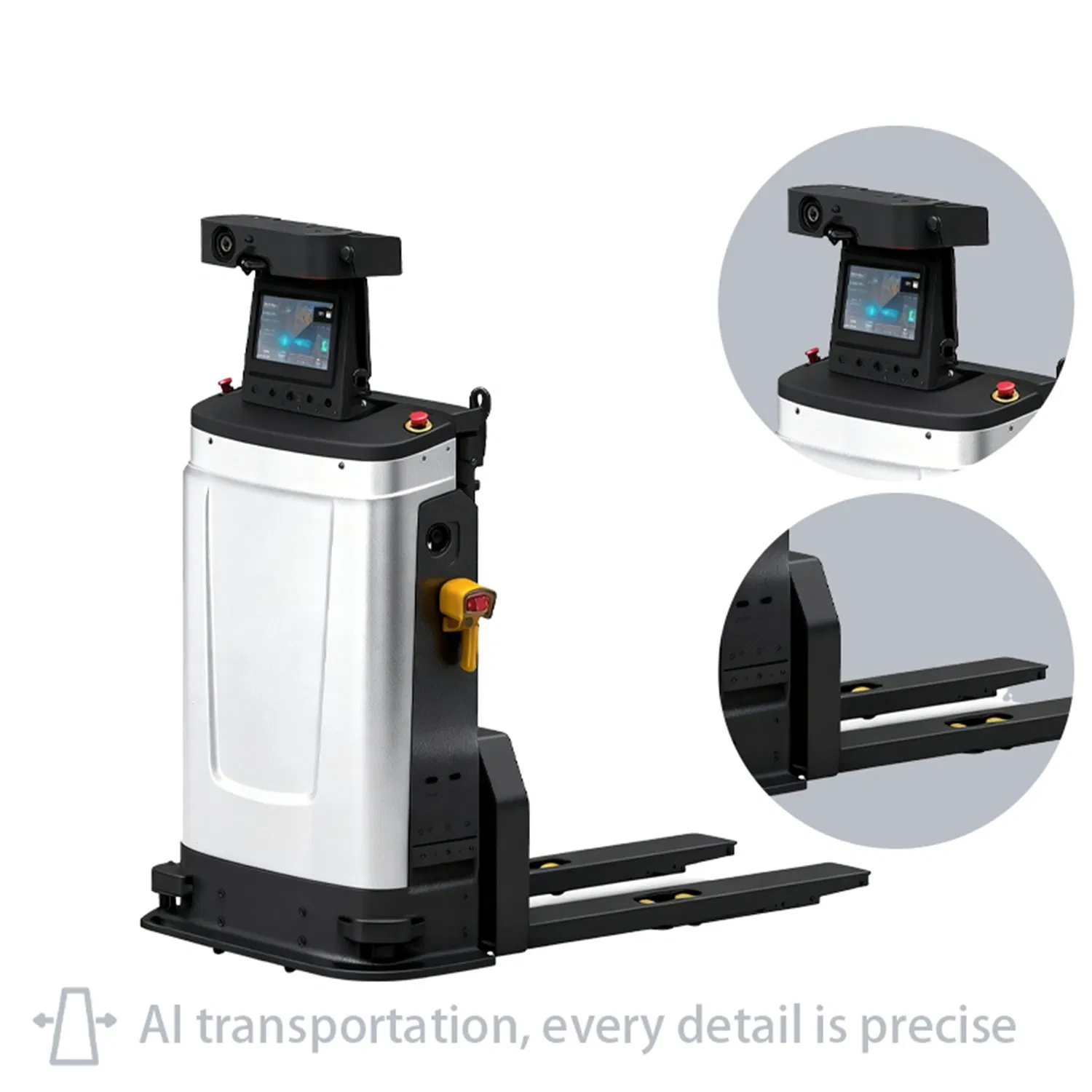

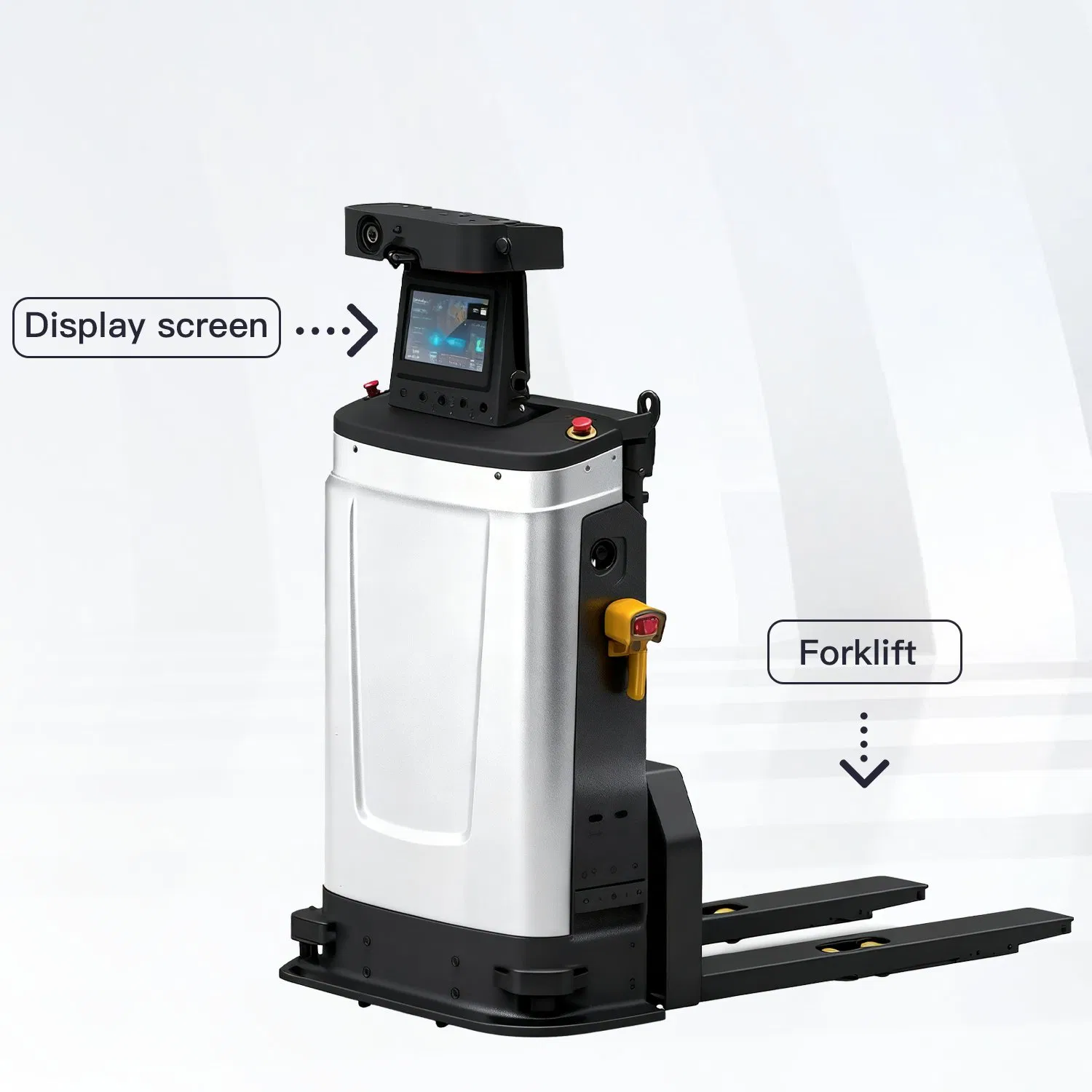

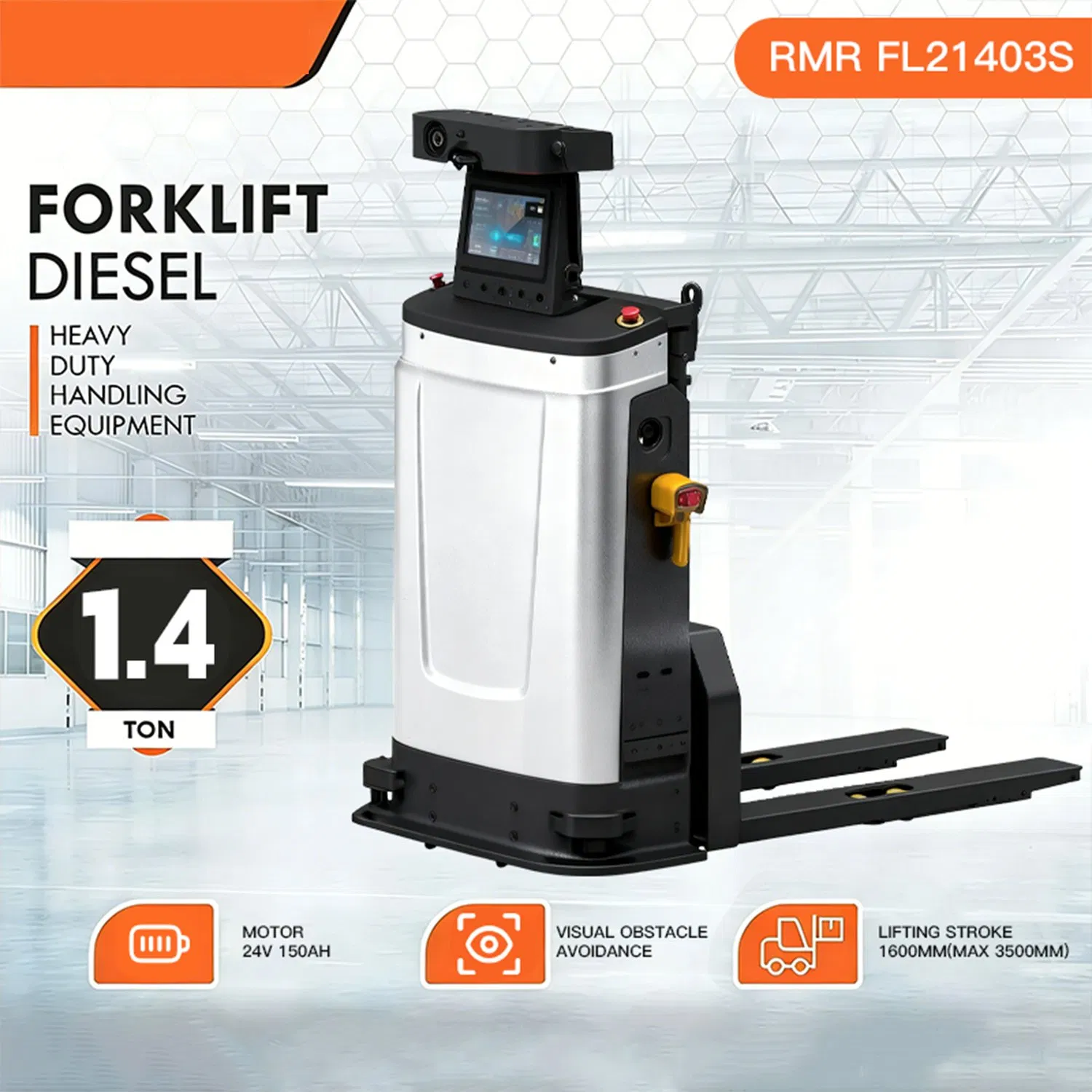

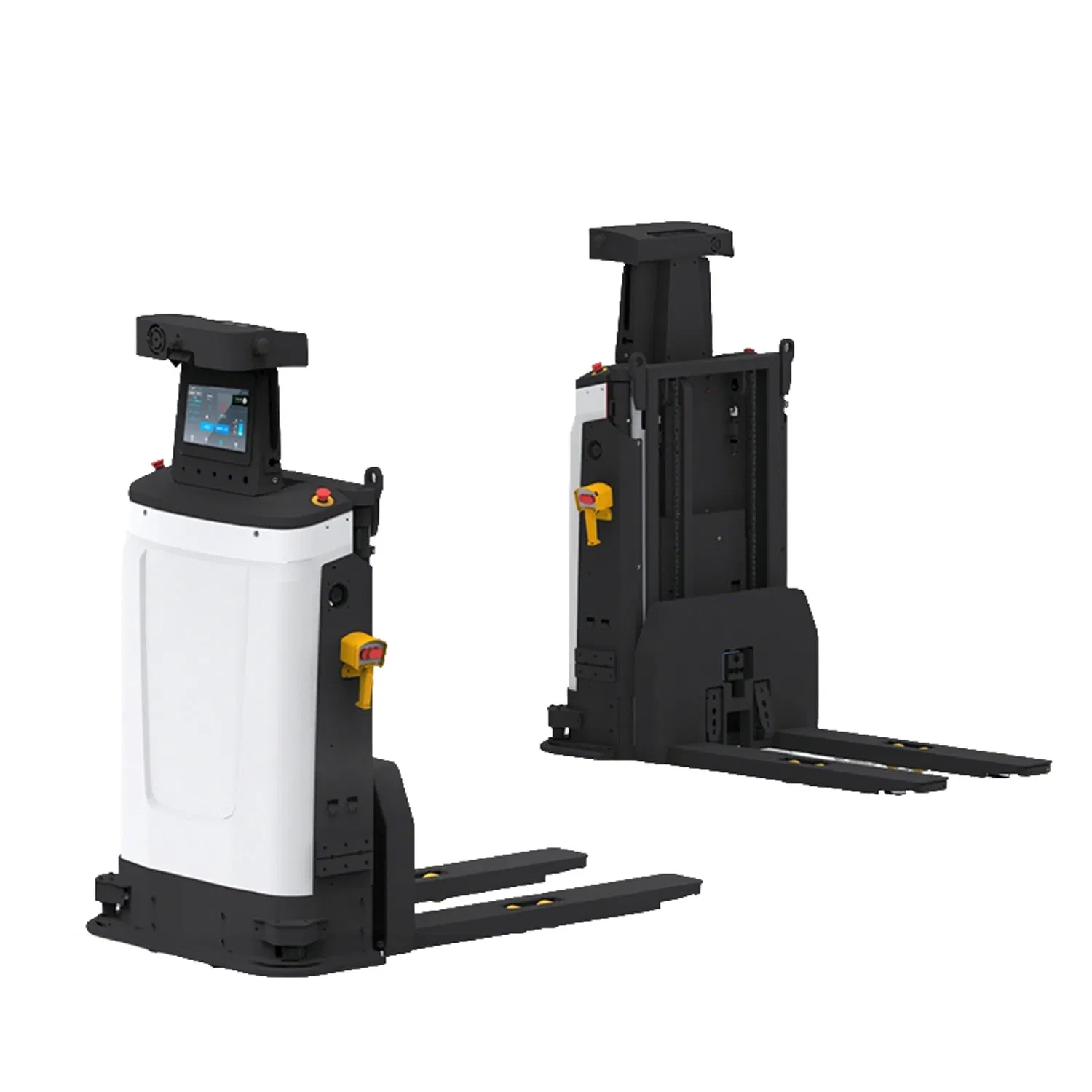

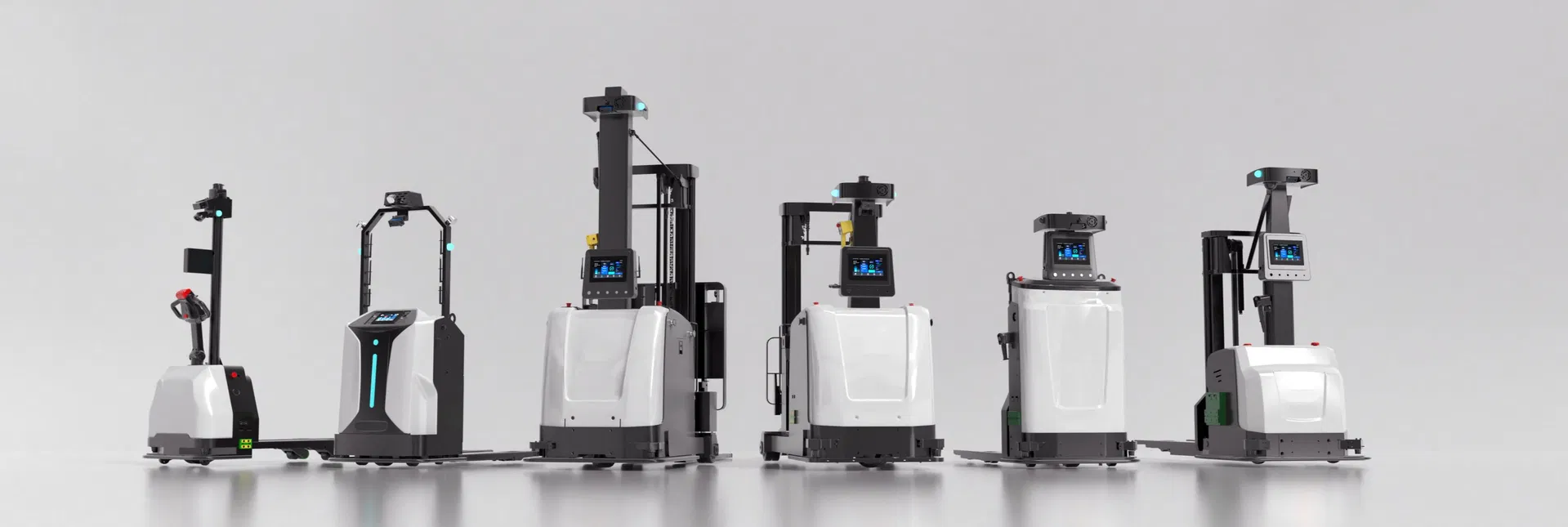

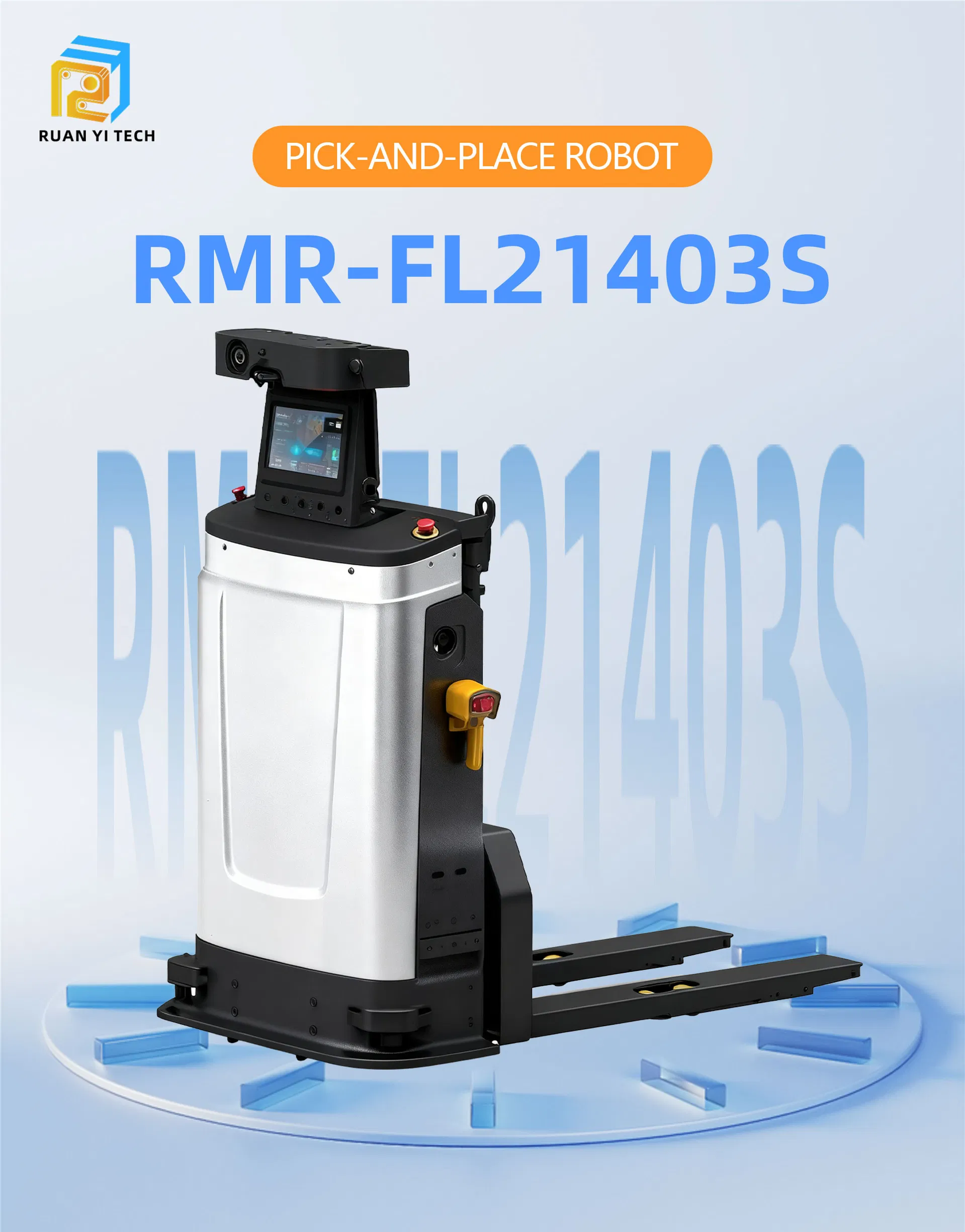

Forklift Mobile Robot Stacking Series
Forklift robot cover the load ranging from 1,000kg to 3,000kg, with the highest lifting height being customized up to 4.5m. The specially designed thickness of the FMR body greatly reduces the operation aisle width, and effectively improves the storage space of materials. Adopting iconic robot head design and modular components, 80% of the components can be used in different scenarios. The whole series obtains full directive CE marking, which are the preferred product series for logistics solutions.
Stacking series RMRs cover the load ranging from 1000kg to 2,000kg, with the highest lifting height being customized up to 4.5m. The specially designed thickness of the FMR body greatly reduces the operation aisle width, and effectively improves the storage space of materials. Adopting iconic robot head design and modular components, 80% of the components can be used in different scenarios. The whole series obtains full directive CE marking, which are the preferred product series for logistics solutions.

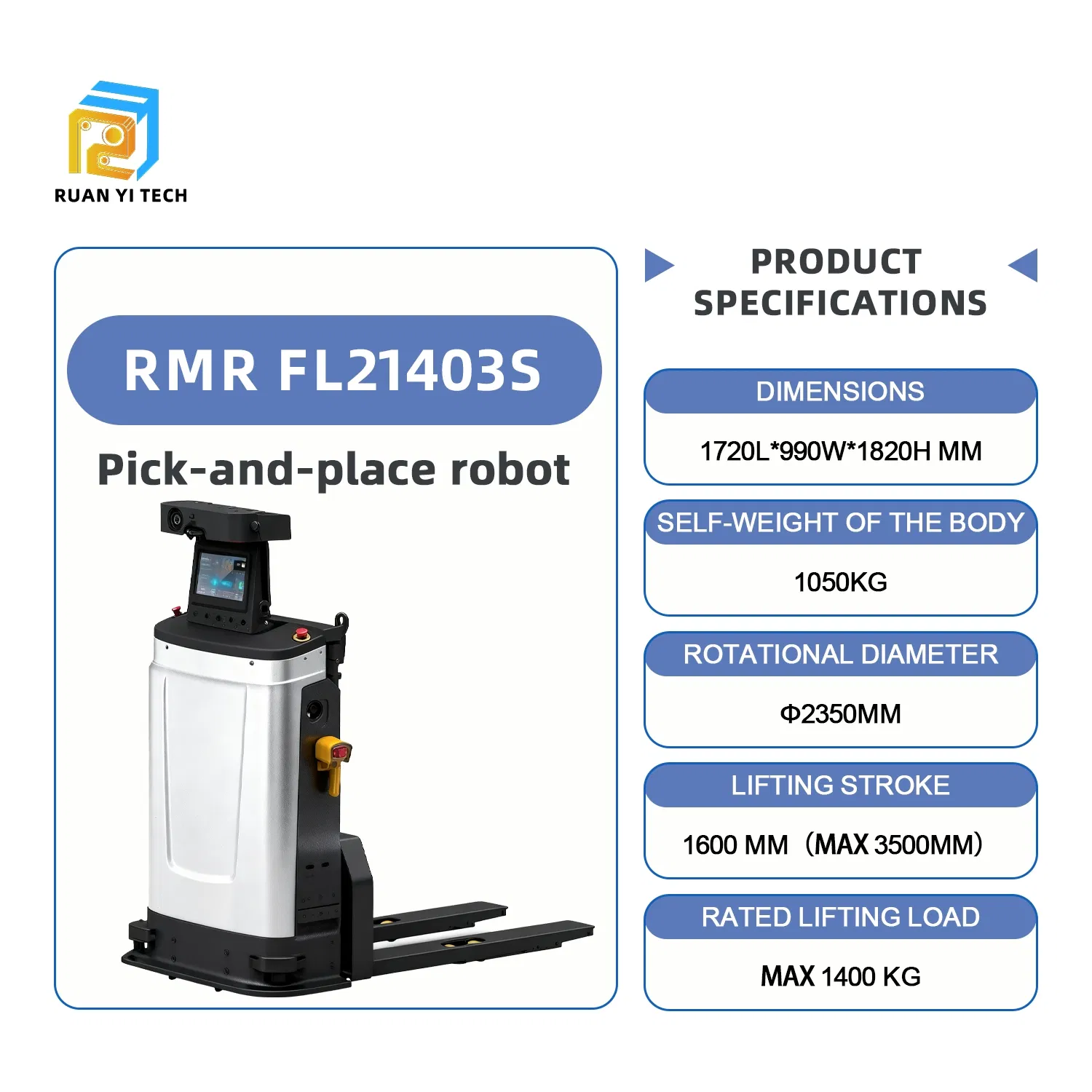

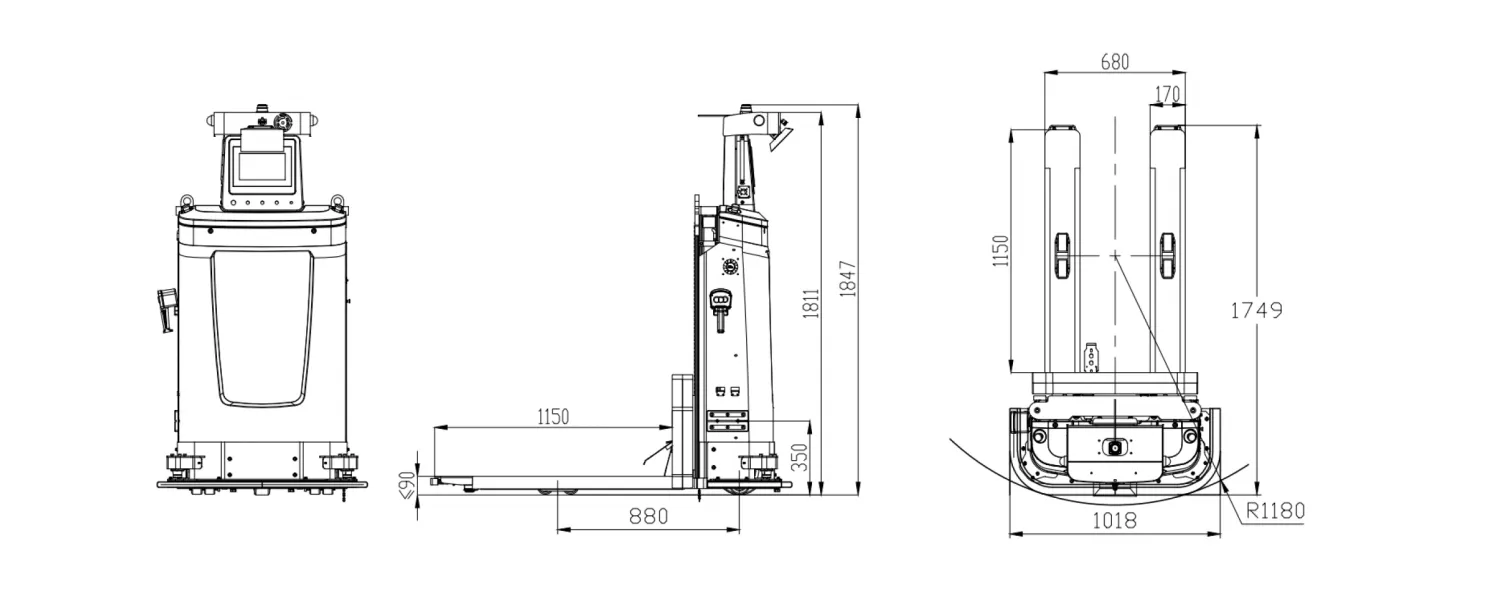

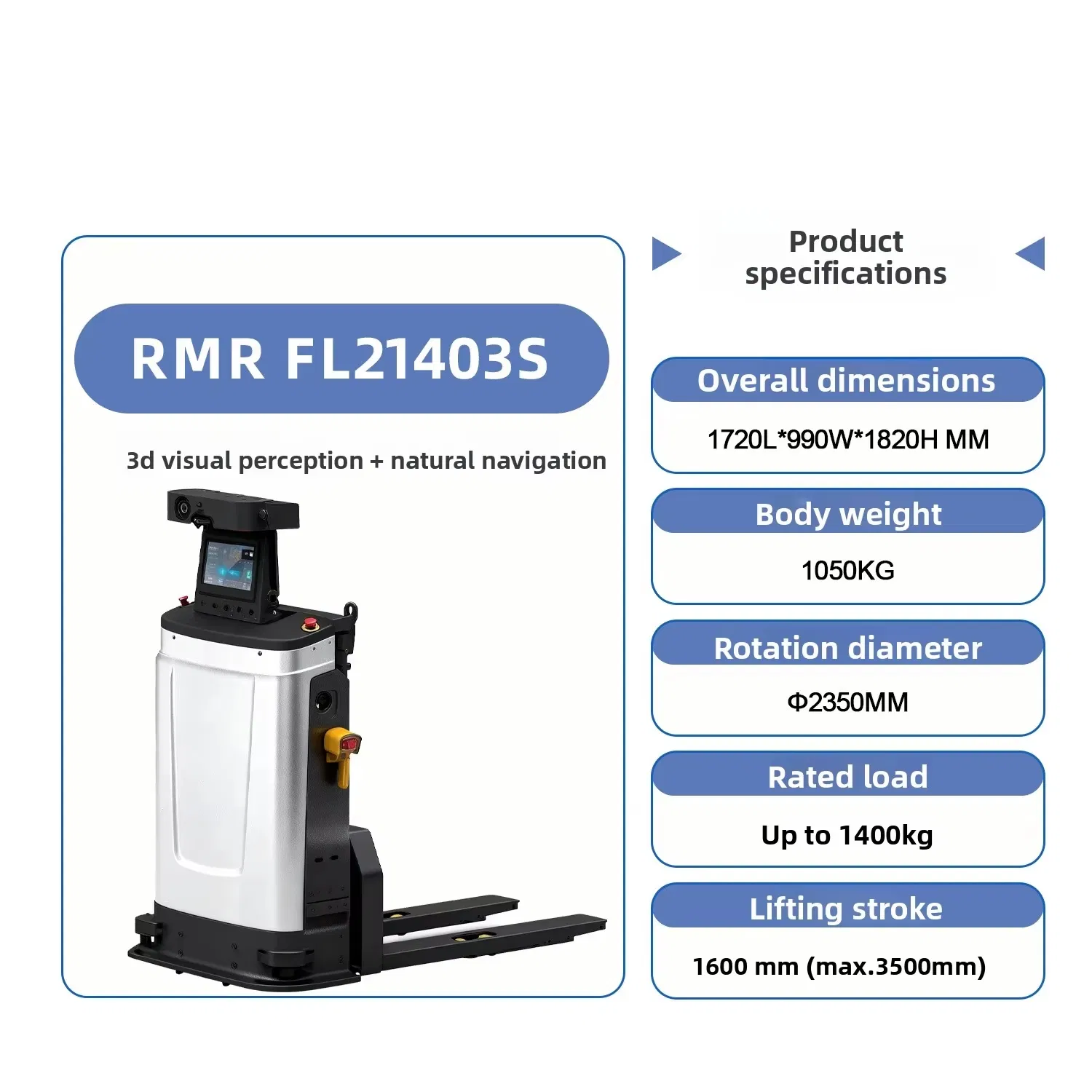

⚙ Technical Specifications
| Basics |
Dimensions |
1750L*1020W*1850H mm |
| Net weight |
1050kg |
| Rotating Diameter |
2360mm |
| Capabilities |

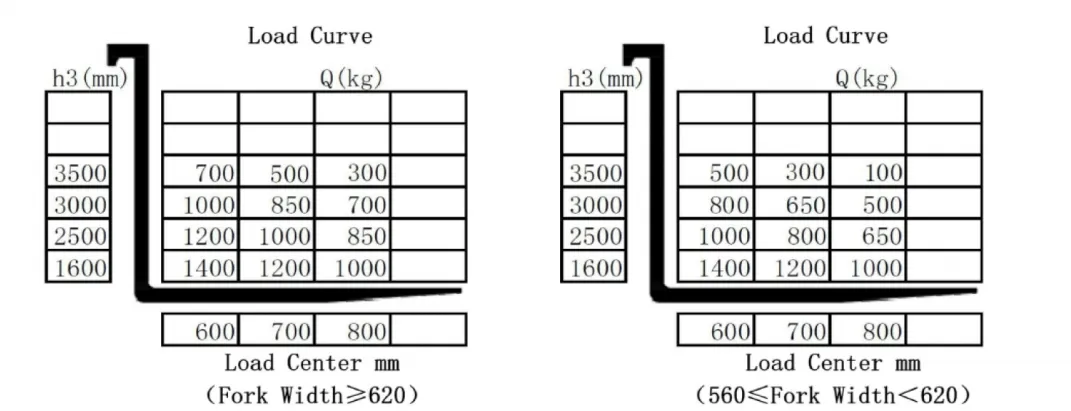

Rated load |
Max 1400kg |
| Lifting height |
1600mm (max 3500mm) |
| Load center distance |
600mm |
| Fork size |
1150L*170W*60H mm*2 |
| Fork outer width |
680mm |
| Motion |
Driving mode |
single steering wheel |
| Navigation mode |
natural navigation, vision / laser SLAM |
| Driving direction |
Forward, backward, rotate, left/right turn |
| Speed |
0-1.5m/s |
| Navigation docking accuracy |
+-10mm |
| Stop angle accuracy |
+-1 degree |
| Battery |
Battery type |
24V150AH |
| Battery life |
6-8H |
| Charge mode |
Automatic/manual |
| Charge time |
<1.5h |
| Life cycle |
2000 cycles |
⭐ Key Features & Performance
Superior Performance
- Efficient transportation: maximum steady running speed up to 1.5m/s
- Wide load coverage: fully independent design, with load ranging from 60kg to 2000kg
- Safe and reliable: 360° stereo sensing, recognizing various environments and objects
- Precise positioning: millimeter-level positioning accuracy, combining laser and vision positioning
Full-Featured Systems
- Carrier recognition: autonomous fork picking based on carrier offset
- Storage location identification: identify storage location with goods, spaces, height, and offset
- Suspended low detection: supports detecting suspended objects and low obstacles
Rich Application Scenarios
- Rich scenarios: covering multi-level storage, material stacking, and deep storage
- Diversified docking: docks with other AMRs, elevators, automatic doors, conveyors, and third-party devices
- Various carriers: supports multiple types of pallets, frames, cage trolleys, flexible packages, rolls, and barrels
🏢 About Us
Deeply engaged in the fields of artificial intelligence and robotics, focusing on providing global manufacturing clients with intelligent, flexible, and highly reliable smart handling solutions. Driven by technological innovation, integrating core technologies such as AI algorithms, robot control, the Internet of Things (IoT), and big data analytics. Build a full-stack smart handling ecosystem covering scenarios such as warehousing and logistics, intelligent manufacturing, and smart factories, assisting enterprises in reducing costs, improving efficiency, and achieving digital transformation. Upholding the principle of "quality first, service paramount, continuous improvement and innovation to satisfy customers", we deliver reliable handling solutions.
❓ Frequently Asked Questions (FAQ)
What navigation system does this forklift robot utilize?
The forklift robot utilizes a Hybrid Navigation system, combining Dual-Laser SLAM and QR code navigation for precise positioning in complex indoor environments.
What is the load capacity and maximum lift height?
This specific model has a rated load capacity of 1400kg. The Stacking Series generally handles loads ranging from 1000kg to 3000kg, with customizable lift heights up to 4.5 meters.
What integrated safety features ensure secure operation?
Safety is ensured through a multi-tier safety system including a Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, and front/rear dual Safety Laser Scanners offering full 360° coverage.
How long does the battery last and how is it charged?
The vehicle is equipped with a high-capacity 24V150AH battery providing a working life of 6 to 8 hours. It supports both automatic and manual charging, taking less than 1.5 hours to recharge.
What are the positioning and stop accuracies of the AGV?
The forklift offers millimeter-level precision with a navigation docking accuracy of +-10mm and a stop angle accuracy of +-1 degree.
Does it support integration with other automated warehouse systems?
Yes, it features diversified docking options to seamlessly interface with other types of AMRs, cargo elevators, automatic warehouse doors, conveyors, and other third-party smart factory hardware.
