| Category | Item | CSL06-YF Details |
|---|---|---|
| Note | - | Standard ○Optional -Not available |

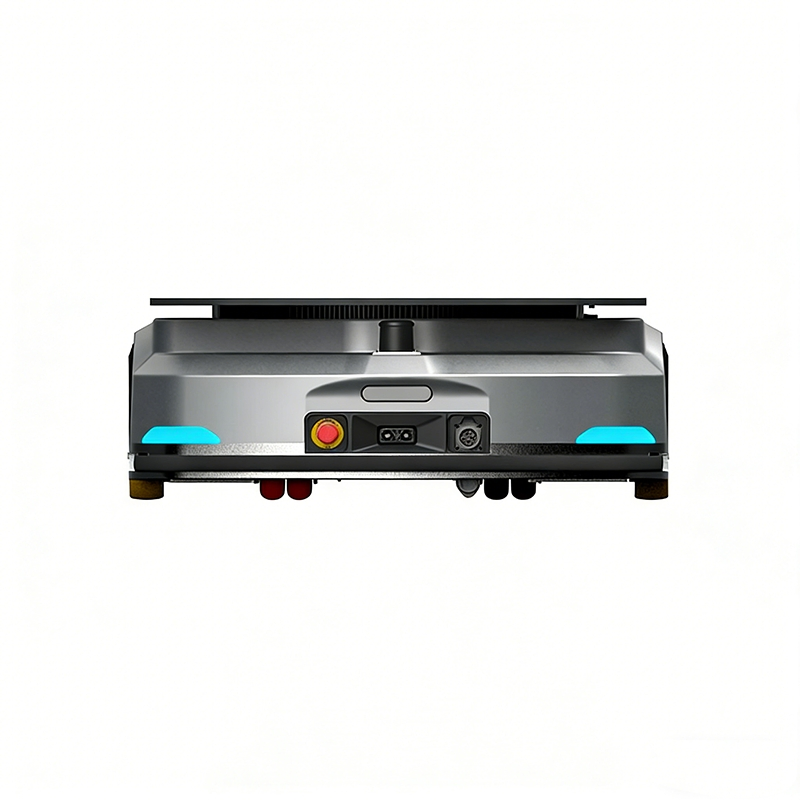

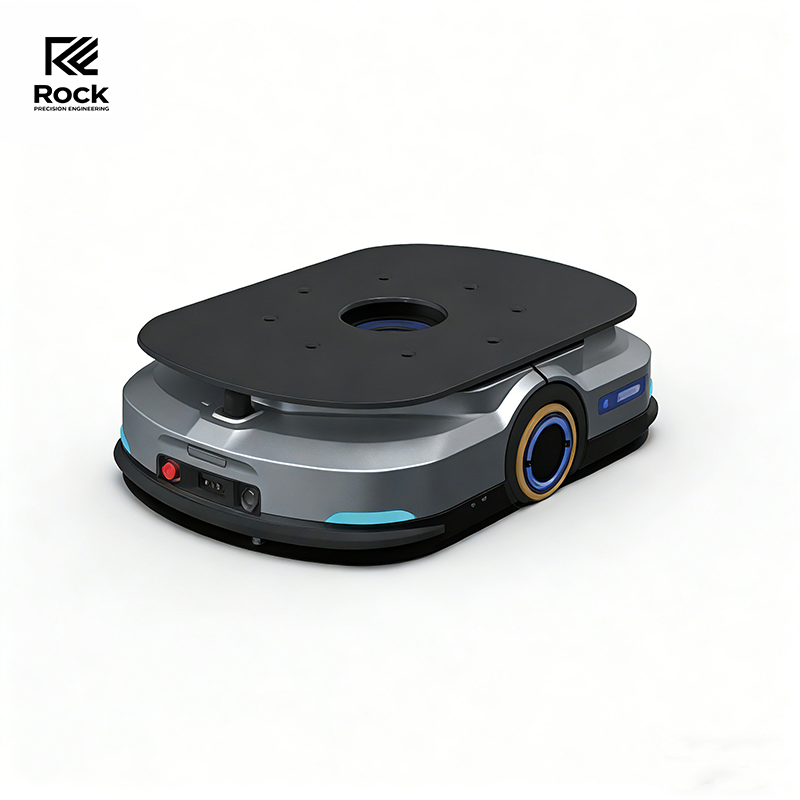

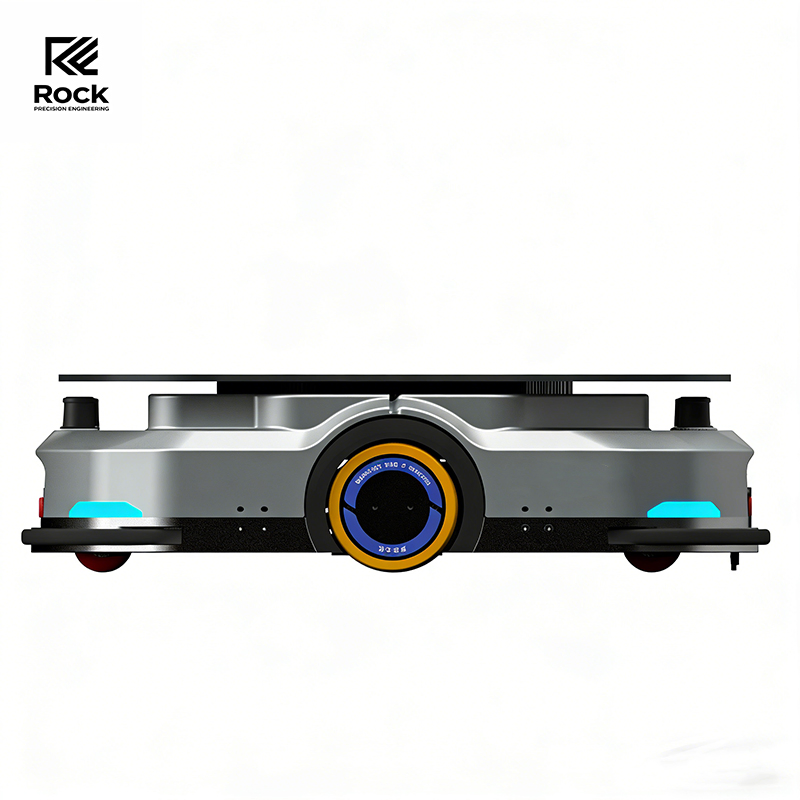

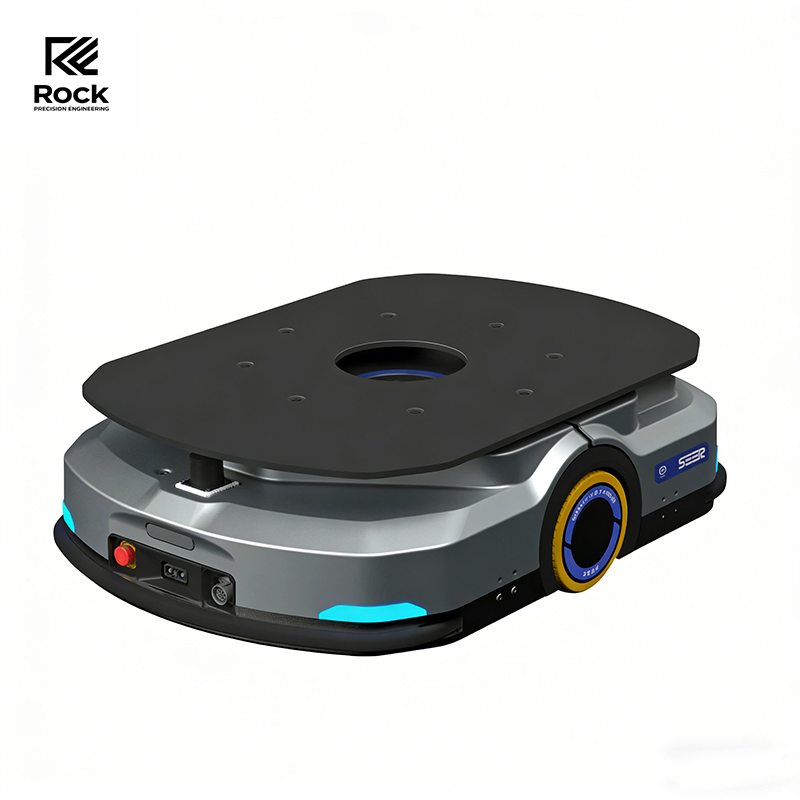

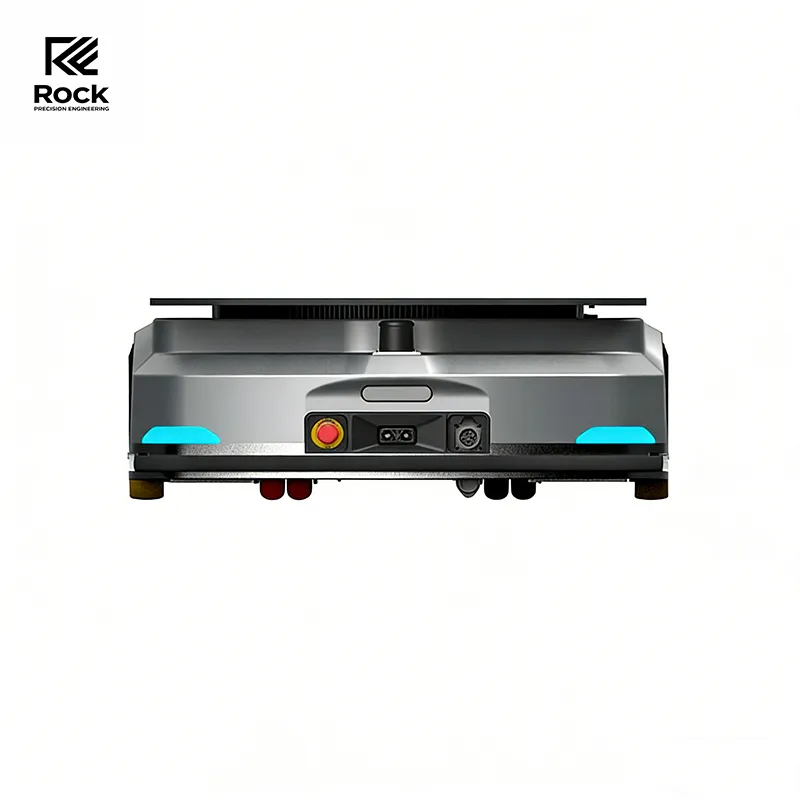

| Basic Info | Model/Navigation | CSL06-YF / Laser SLAM |

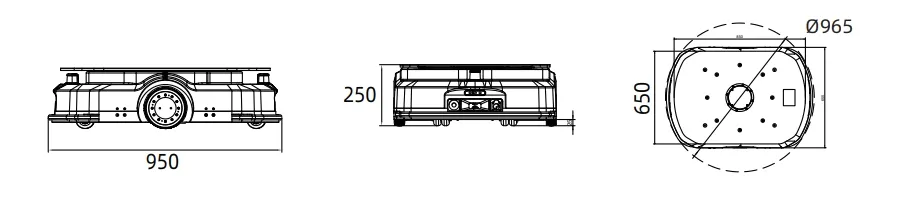

| Core Specs | Dimensions (L×W×H) | 950 × 650 × 250 mm |
| Core Specs | Turning Diameter | 965 mm |
| Core Specs | Weight (w/battery) | 130 kg |
| Core Specs | Max Payload | 600 kg |
| Core Specs | Ground Clearance | 25 mm |
| Core Specs | Lift Platform Size | 850 × 600 mm |
| Core Specs | Max Lift Stroke | 60±2 mm |
| Performance | Temp/Humidity Range | 0ºC~50ºC / ≤5% RH |
| Performance | Passability (Slope/Step/Gap) | ≤5% / 5 mm / 30 mm |
| Performance | Min Passage Width | 790 mm |
| Performance | Position/Angle Accuracy | ±5 mm / ±0.5° |
| Performance | Max Speed | ≤1.5 m/s |
| Battery | Spec | 51.2V / 20Ah (LFP) |
| Battery | Runtime/Charge Time (10%-80%) | 8h / ≤1h |
| Battery | Charging Mode | Manual / Auto |
| Standard Config | LiDAR/Key Parts | 1(H1)+1(C2) / E-Stop/Speaker/Bumper |
| Standard Functions | Core Features | Wi-Fi Roaming/Auto Charging/Rack Recognition/Follow Mode |
| Optional Functions | - | QR Code Positioning/Navigation/Laser Reflector Navigation |
