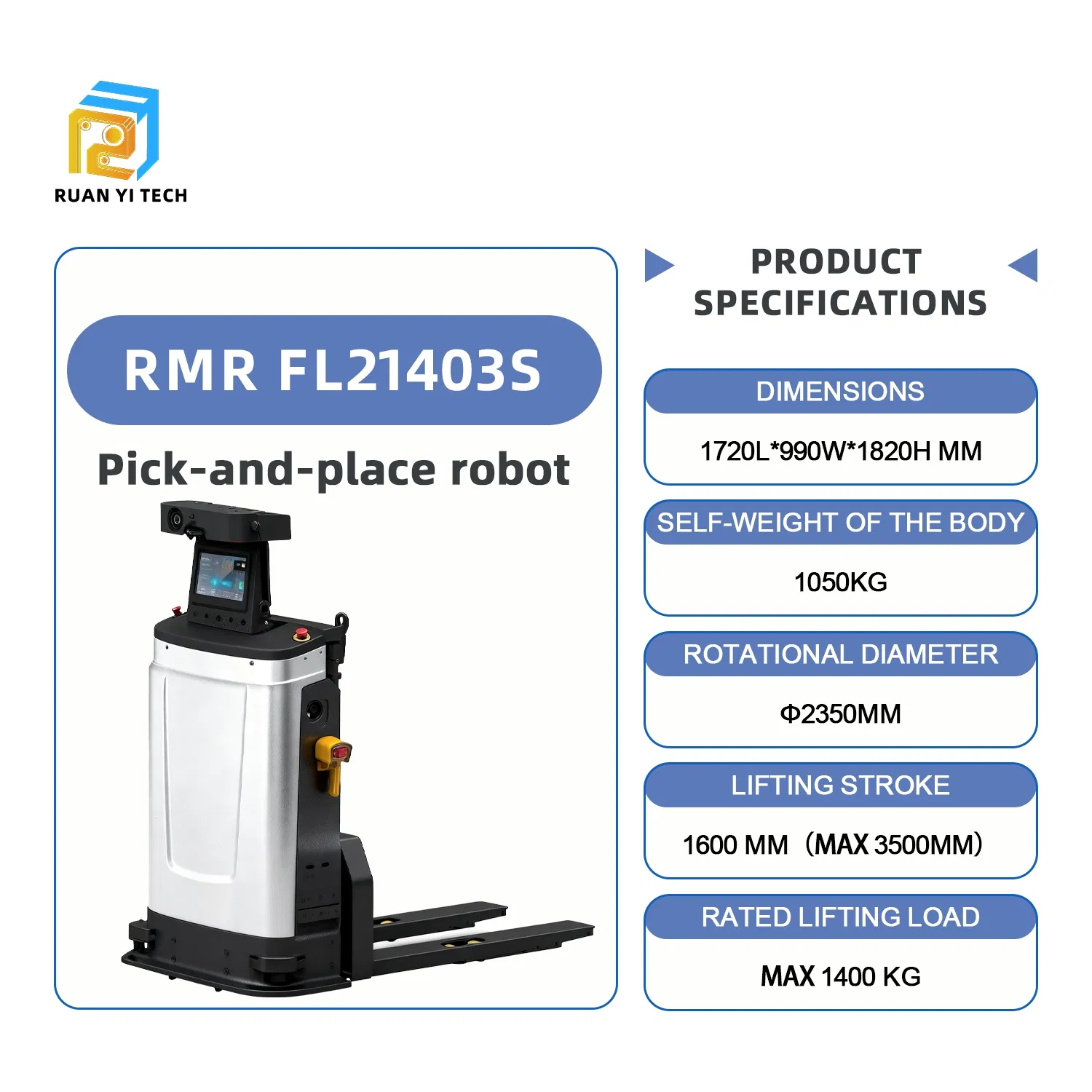

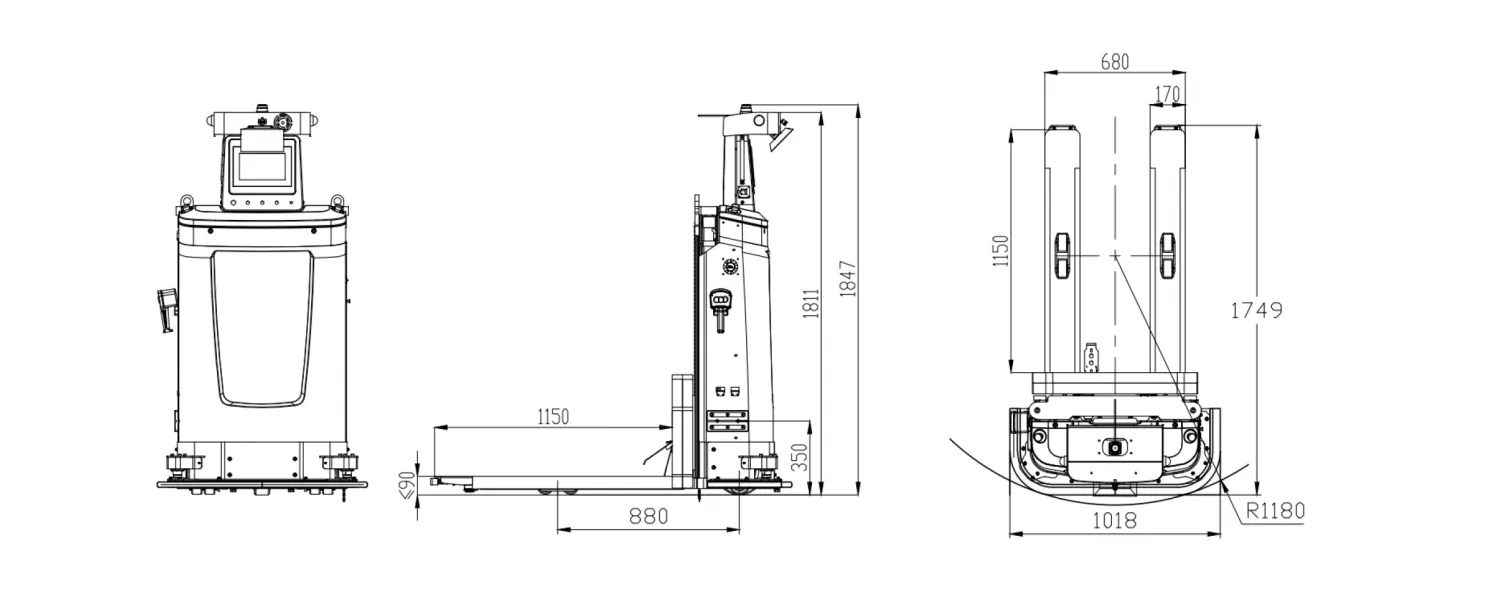

| Basics | Dimensions | 1750L*1020W*1850H mm |
| Net weight | 1050kg | |
| Rotating Diameter | 2360mm | |

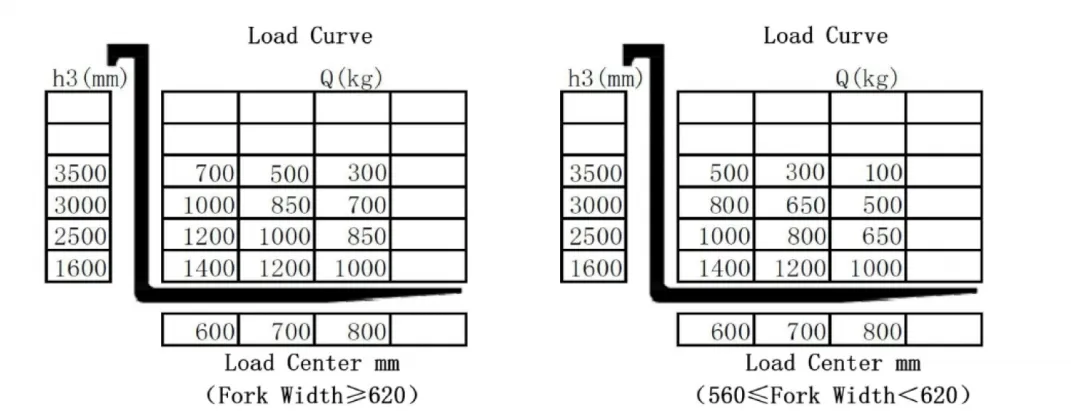

| Capabilities | Rated load | Max 1400kg |
| Lifting height | 1600mm(max 3500mm) | |
| Load center distance | 600mm | |
| Fork size | 1150L*170W*60H mm*2 | |
| Fork outer width | 680mm | |
| Motion | Driving mode | single steering wheel |
| Navigation mode | natural navigation, vision / laser SLAM | |
| Driving direction | Forward, backward, rotate, left / right turn | |
| Speed | 0-1.5m/s | |
| Navigation docking accuracy | +-10mm | |
| Stop angle accuracy | +-1 degree | |
| Battery | Battery type | 24V150AH |
| Battery life | 6-8H | |
| Charge mode | Automatic/manual | |
| Charge time | <1.5h | |
| Life cycle | 2000cycles |
The standard model has a rated load capacity of 1400kg. The stacking series covers loads ranging from 1000kg to 2000kg to suit different material handling needs.
It supports hybrid navigation combining dual-laser SLAM and QR code navigation, providing high precision and stability without relying heavily on physical floor markings.
The forklift robot features full 360° laser obstacle avoidance, front and rear dual lasers, collision avoidance systems, emergency stop buttons, obstacle detection sensors, and audio-visual alarms (light indicators & voice prompts).
Yes, it features both automatic and manual charging. Equipped with a 24V150AH battery, it runs for 6-8 hours on a full charge, and the charging cycle takes less than 1.5 hours.
The vehicle achieves a navigation docking accuracy of +-10mm and a stop angle accuracy of +-1 degree, ensuring highly precise and safe operations in narrow aisles.
Yes, with its advanced carrier recognition system, the robot can autonomously identify and pick up pallets, frames, cage trolleys, and irregularly shaped loads by adjusting its fork based on the offset.
