Product Description

Overview
Basic Info.
Model NO.
F4-2000 (4.5m)
Load Capacity
2000 kg
Safety Features
Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner
Type
AMR (Autonomous Mobile Robot)
Dimension (L×W×H)
2378*1170*1983 mm
Weight (with Battery)
1500 Kg
Rated Load
2000kg
Load Center Distance
600 mm
Fork Lifting Height
5500 mm
Fork Above Ground
107 mm (After Lowering)
Fork Dimension
60/225/1235 mm
Fork Outer Width
680 mm
Applicable Pallet
1200*1000 mm
Other Control Mode
Point to Point Control
Transport Package
Wooden Box
Specification
2378*1170*1983
Origin
China
Packaging & Delivery
Package Size
120.00cm * 200.00cm * 225.00cm
Package Gross Weight
800.000kg
Product Description

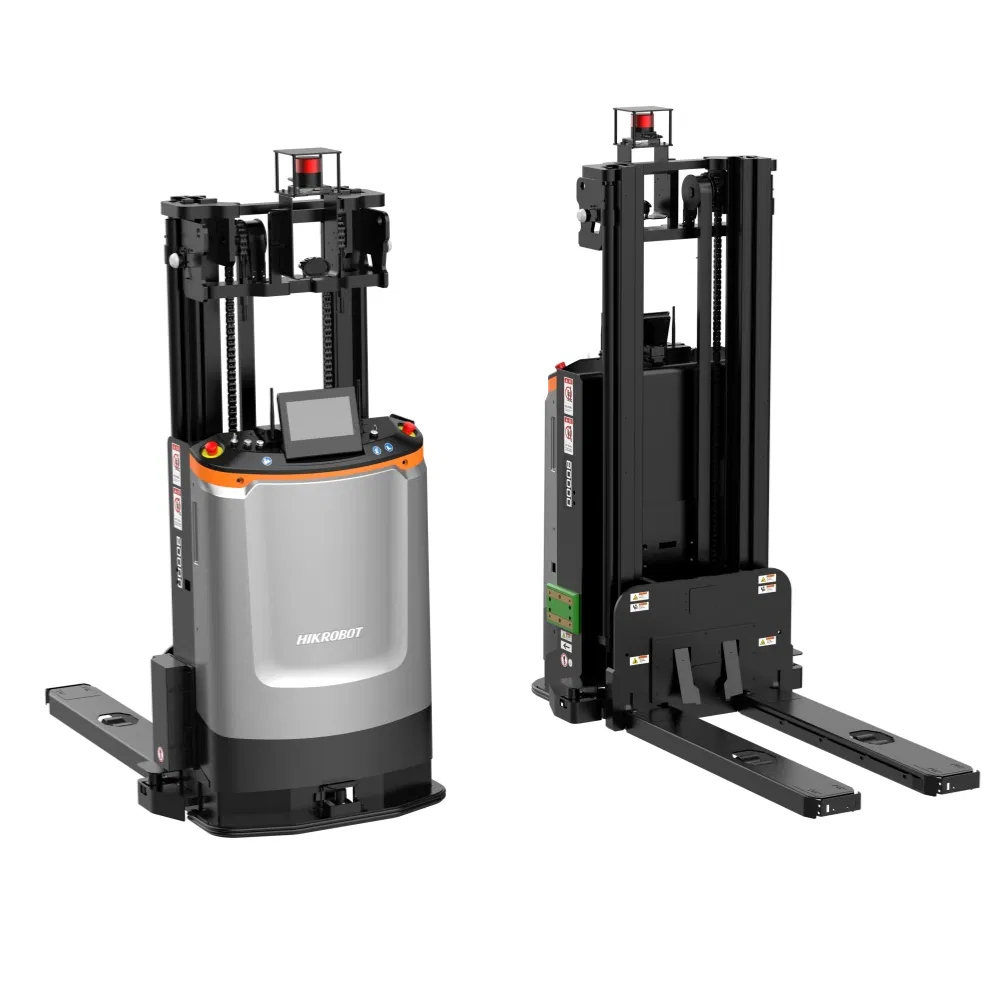

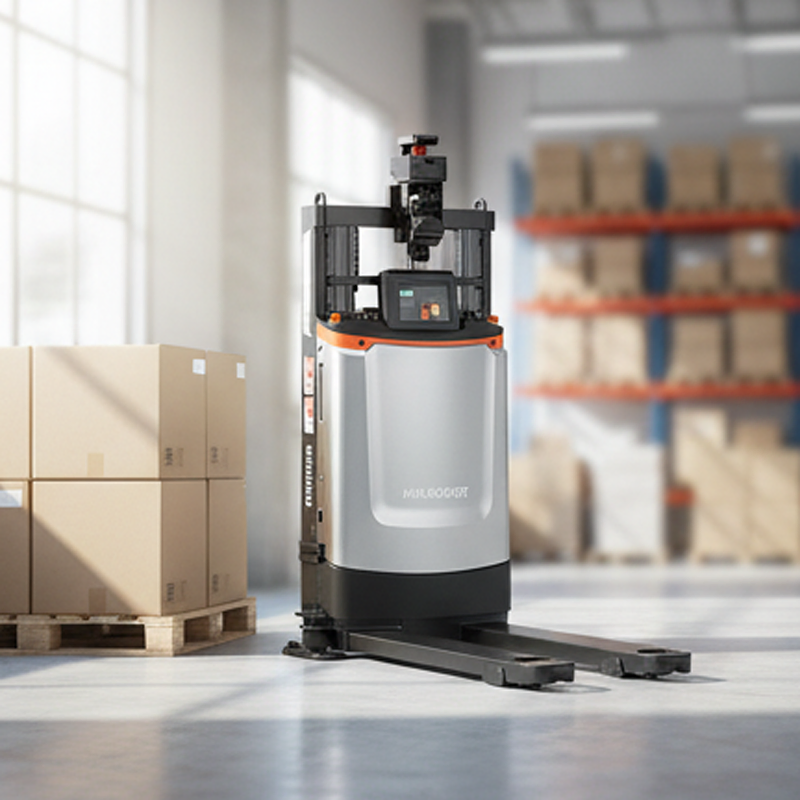

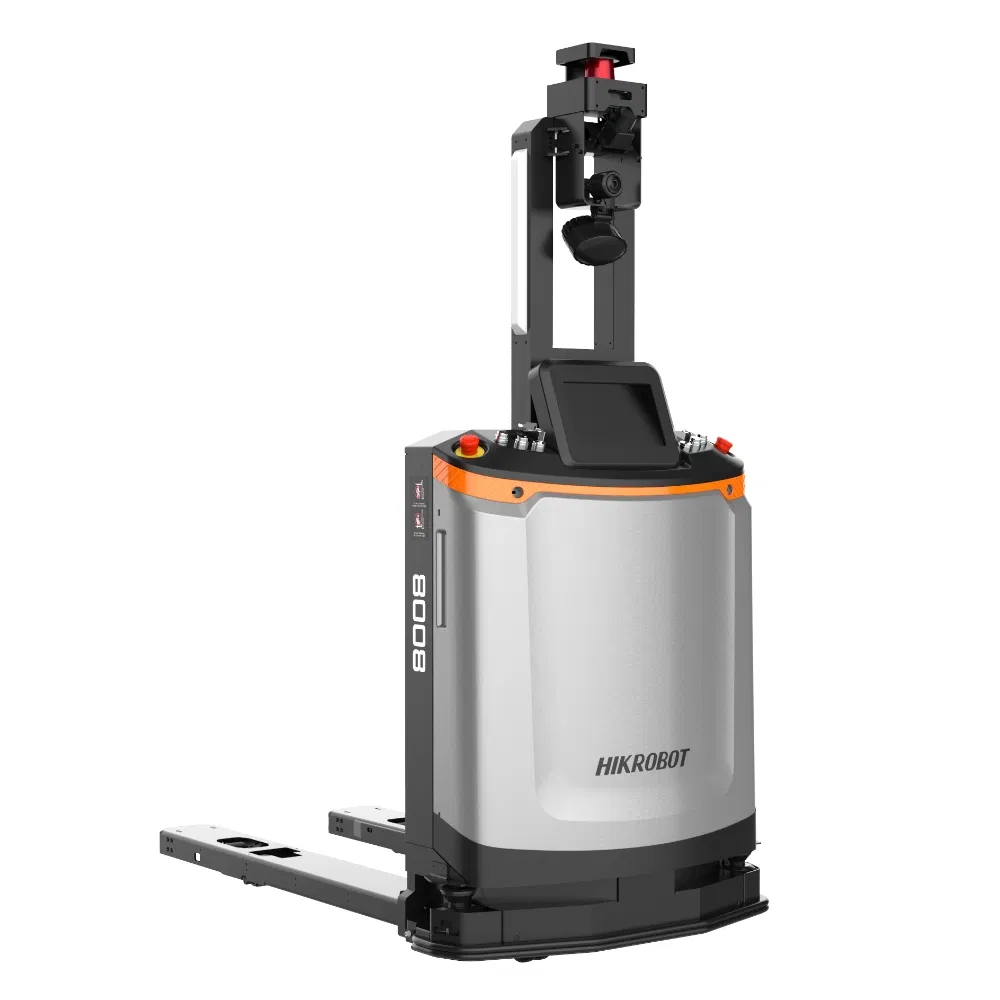

Reliable Heavy Duty Agv Mobile Robot for Material Transport
Forklift Mobile Robot Stacking Series
Stacking series FMRs cover the load ranging from 1,000kg to 3,000kg, with the highest lifting height being customized up to 4.5m. The specially designed thickness of the FMR body greatly reduces the operation aisle width, and effectively improves the storage space of materials. Adopting iconic robot head design and modular components, 80% of the components can be used in different scenarios. The whole series obtains full directive CE marking, which are the preferred product series for logistics solutions.
Specification
Key Features
Superior Performance
  • Efficient transportation: maximum steady running speed up to 1.5m/s
  • Wide load coverage: fully independent design, with load ranging from 300kg to 1,400kg

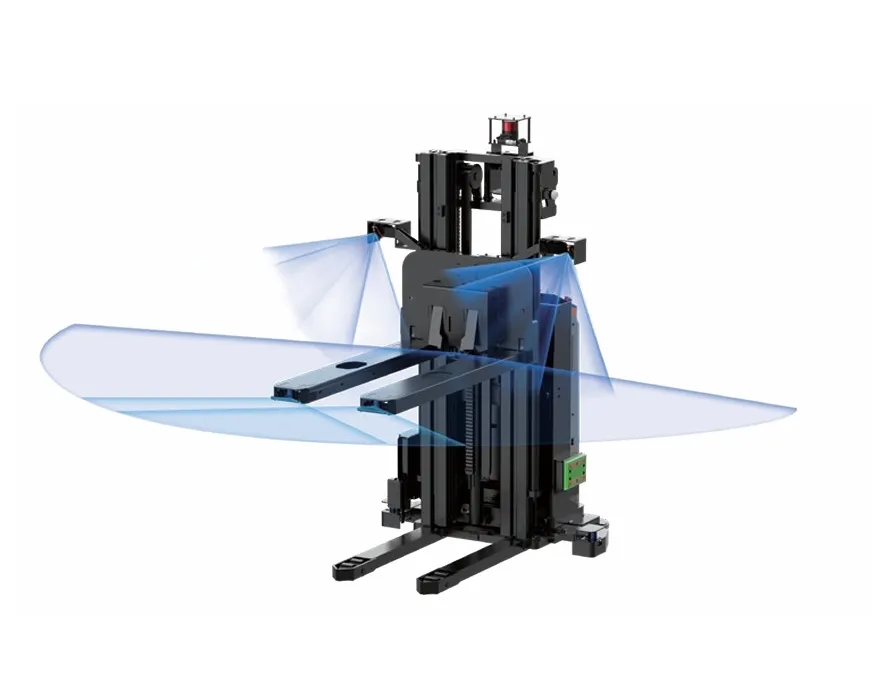

  • Safe and reliable: 360° stereo sensing, recognizing various environments and objects
  • Precise positioning: millimeter-level positioning accuracy, combining laser and vision positioning
Full-Featured
  • Carrier recognition: autonomous fork picking based on carrier offset
  • Storage location identification: identify storage location with goods, spaces, its height and offset
  • Suspended low detection: supports detecting suspended objects and low obstacles
Rich Models & Scenarios
  • Rich scenarios: covering multi-level storage, material stacking, and deep storage
  • Diversified docking devices: dock with other AMRs, elevators, automatic doors, conveyors
  • Various carriers: pallets, frames, cage trolleys, flexible packages, rolls, barrels
Reliable Heavy Duty Agv Mobile Robot for Material Transport

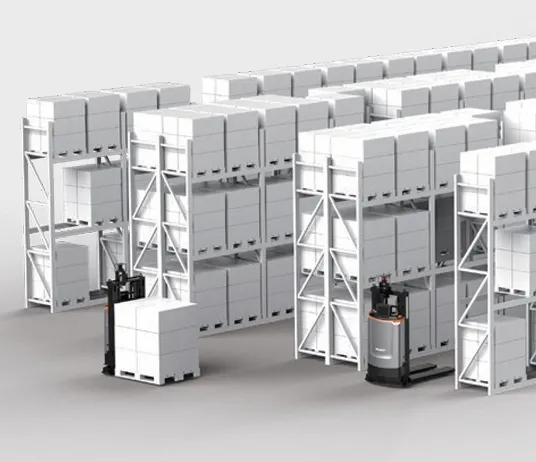

Logistics warehouse
Logistics Warehouse
Upper and lower floor transferring
Upper and Lower Floor Transferring

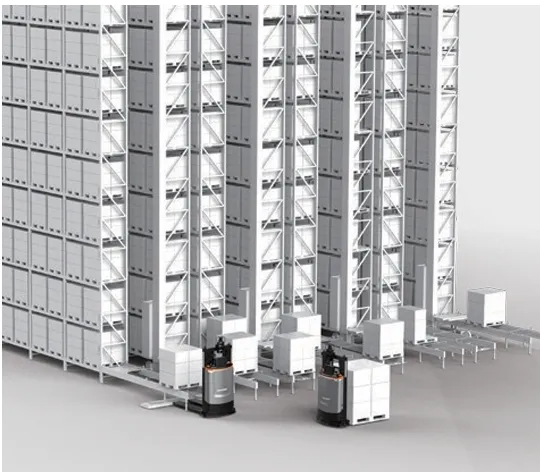

Stereoscopic warehouse conveyor
Stereoscopic Warehouse Conveyor
Model F4-1000C F4-1000C F4-1500 F4-2000 (3m) F4-2000 (4.5m) F4-3000
Rated running speed (m/s) 1.2 1.2 1.2 1.2 1.2 1.5
Positioning accuracy (mm)/(°) ±10/±1 ±10/±1 ±10/±1 ±10/±1 ±10/±1 ±10/±1
Min. rotation radius (Wa) (mm) 1183 1183 1316 1400 1400 1891
Motion method Forward, backward, arc, rotate in place Forward, backward, arc, rotate in place Forward, backward, arc, rotate in place Forward, backward, arc, rotate in place Forward, backward, arc, rotate in place Forward, backward, arc, rotate in place
Min. aisle width (Ast) (mm) 2062 2062 2490 2065 2065 2864
Run time (h) 6-8 6-8 6-8 6-8 6-8 6-8
Charging time (h) ≤ 2 ≤ 2 ≤ 2 ≤ 2 ≤ 2 ≤ 2
Laser obstacle avoidance Support Support Support Support Support Support
Recorder Optional Optional Optional Optional Optional Optional
Bumper Strip Detection Support Support Support Support Support Support
Pallet in-position detection Support Support Support Support Support Support
Fork collision detection Support Support Support Support Support Support
Emergency stop button Support Support Support Support Support Support
Indication light Support Support Support Support Support Support
Sound and light alarm Support Support Support Support Support Support
Human-machine interaction Touchscreen Touchscreen Touchscreen Touchscreen Touchscreen Touchscreen
Navigation Mode L-SLAM/ 3D L-SLAM L-SLAM/ 3D L-SLAM L-SLAM/ 3D L-SLAM L-SLAM/ 3D L-SLAM L-SLAM/ 3D L-SLAM L-SLAM/ 3D L-SLAM
Fork size customization Customizable Customizable Customizable Customizable Customizable Customizable
Applications

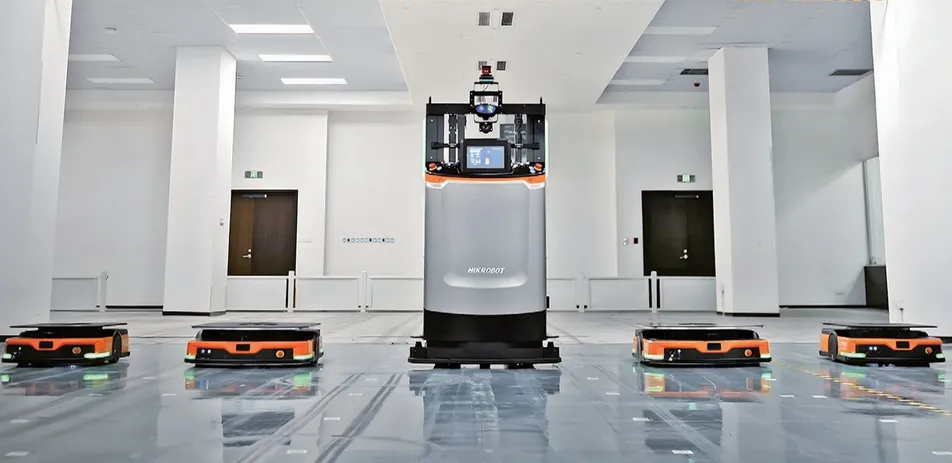

Reliable Heavy Duty Agv Mobile Robot Application

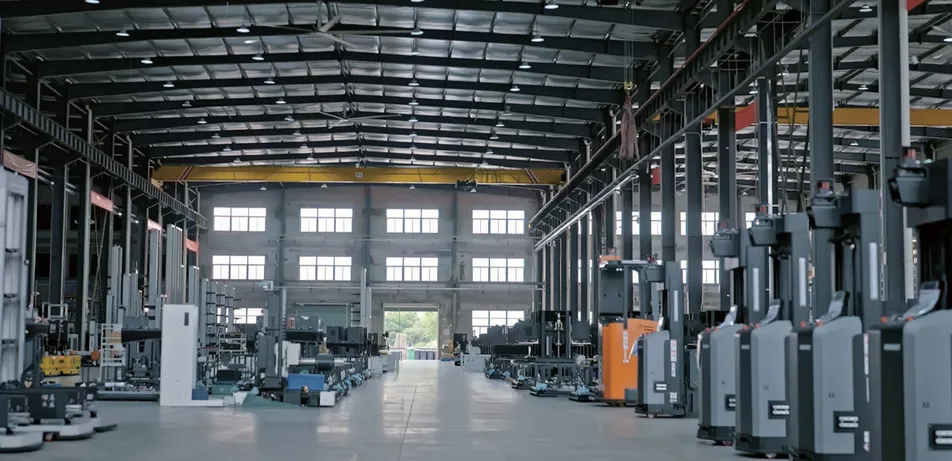

Reliable Heavy Duty Agv Mobile Robot Operation

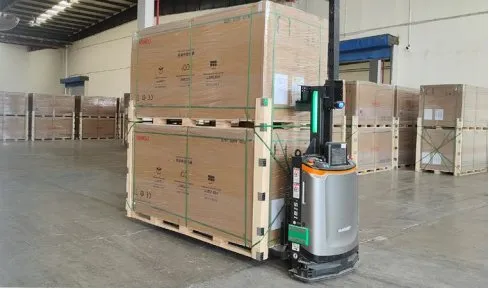

Reliable Heavy Duty Agv Mobile Robot Environment
Reliable Heavy Duty Agv Mobile Robot Stacking
Cases

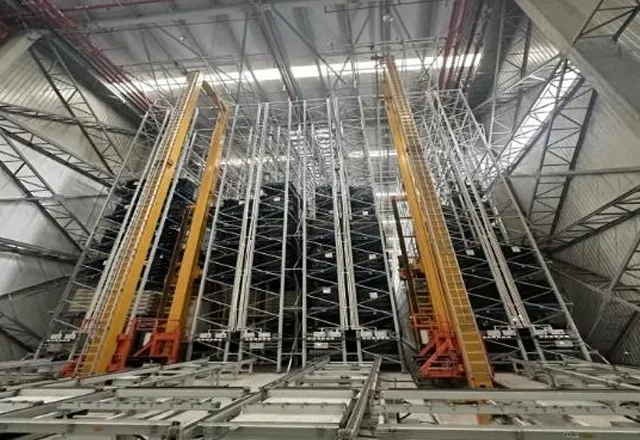

Automated Storage System Project for Raw Material Warehouse – in Shanghai
Automated Storage System Case Study

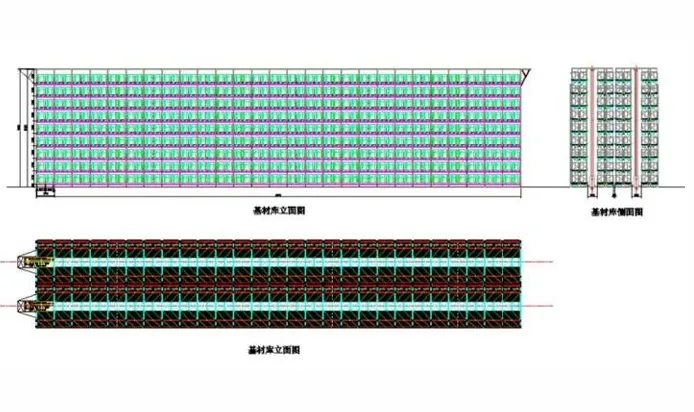

Automated Storage Warehouse System
Project Highlights
Automated warehouse design, stacker crane and system design.
Project Scope
2 stacker cranes, 4 sets of racks, 3,888 storage locations.
Inbound and outbound flow rate of 92 pallets per hour (P/H).
79 days for engineering design.
200 days for automated warehouse construction and final delivery.
Manufacturing & Technology Profile
Technology and Manufacturing Infrastructure
This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.
Other Products
Intelligent warehousing Systems
Latent Mobile Robot
Forklift Mobile Robot
Carton Transfer Unit
Software platforms
etc.
This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.
After Sales Service
  • Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
  • Extended Warranty: Optional coverage up to 36 months.
  • Global Support: 24/7 technical assistance and spare parts supply.
  • Training: On-site or remote operation/maintenance training.
Frequently Asked Questions (FAQ)
How should we handle AGV selection for our facility?
We recommend selecting the AGV hardware based on your actual operational requirements. Our technical support team is responsible for evaluating your workflow and proposing the most suitable AGV configuration.
Is dedicated software required to run these AGVs?
Yes. To enable successful AGV operation, dedicated robot dispatching and control software is required to work in conjunction with the AGV hardware.
Can we carry out the AGV implementation and commissioning by ourselves?
AGV commissioning typically requires a high level of professional expertise and hands-on experience. This implementation phase is managed by our experienced technical team to ensure optimal pathing and safety.
Can multiple AGVs or different models operate simultaneously at the same site?
Yes, absolutely. The system supports the simultaneous operation of multiple AGVs, including different models and configurations, at the same site to meet diverse material handling requirements.
What initial information is needed to begin introducing AGVs to our plant?
In the early stages, we require basic site details such as your factory layout, pallet dimensions, load specifications, and material handling workflows.
What is the typical timeline for complete AGV implementation?
The implementation timeline varies depending on the overall project scope and technical specifications. In standard scenarios, deployment can be successfully completed in as little as two weeks.
