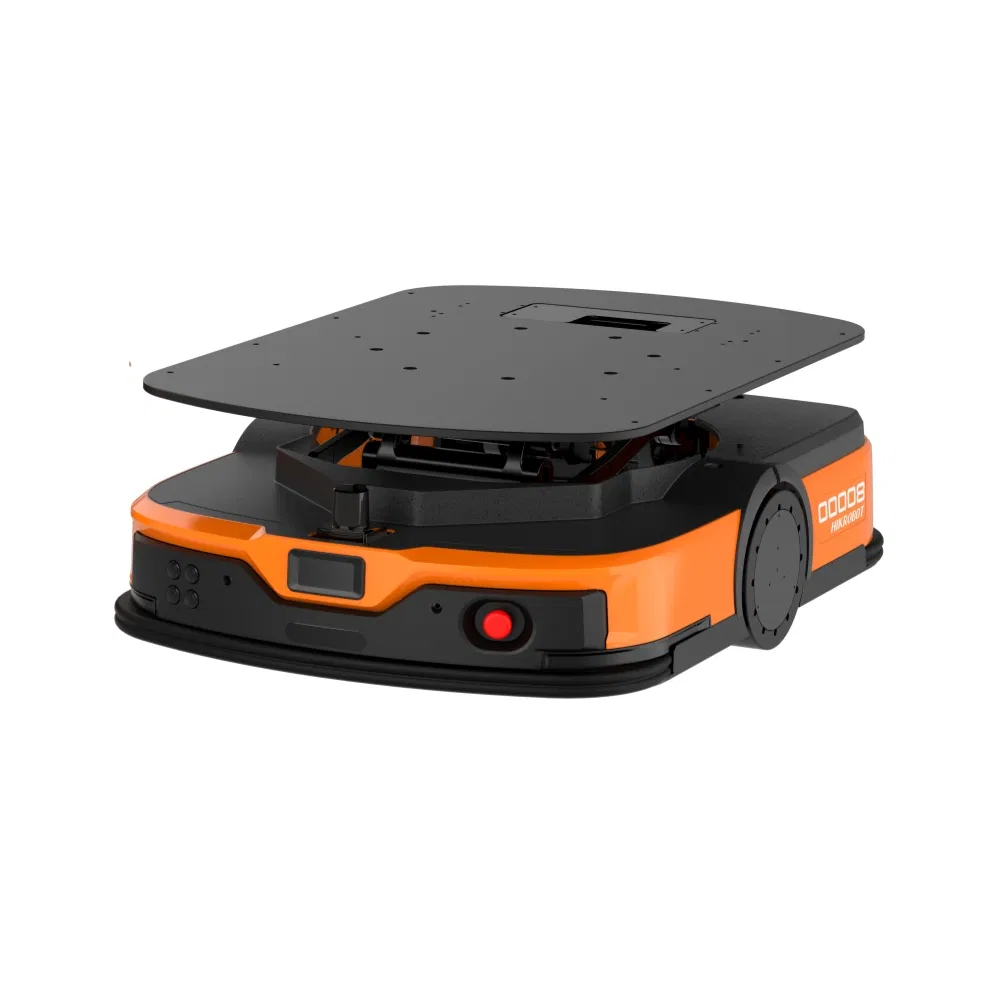

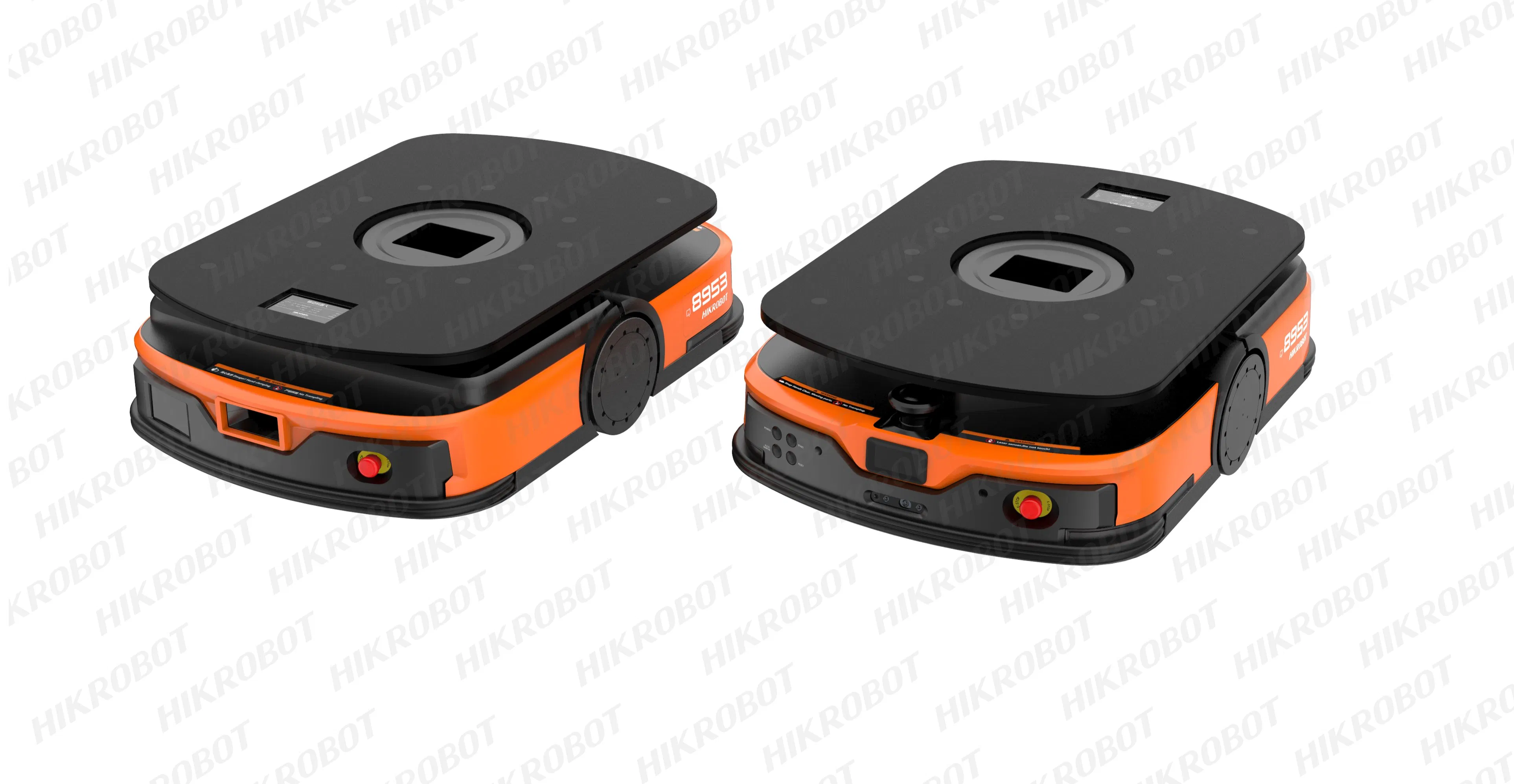

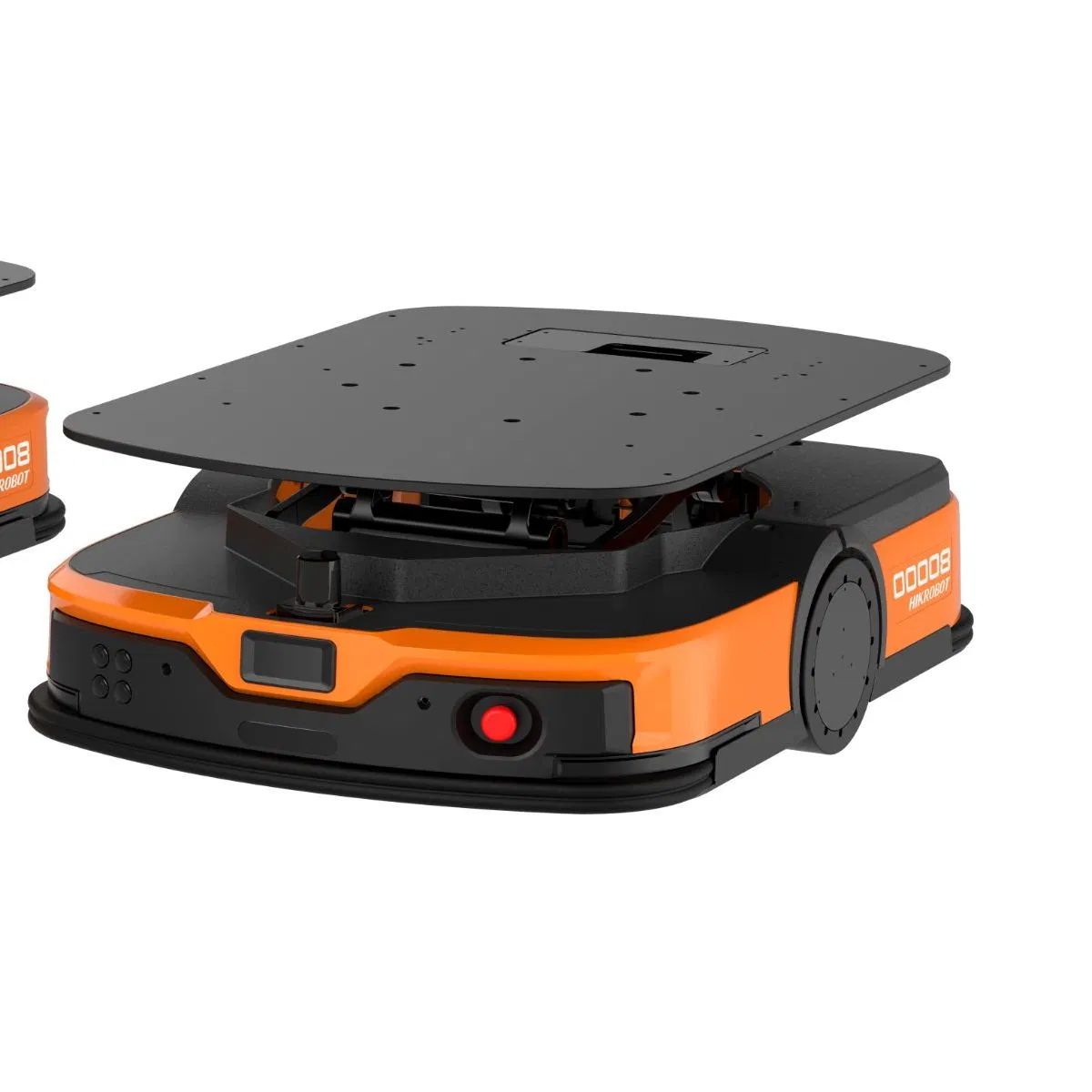

Industrial Automation Mobile Robot for 1000kg Load Capacity Operations

Overview

Basic Info.

Model NO.	Q7B-1000E
Load Capacity	1000 kg
Safety Features	Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner
Type	AMR (Autonomous Mobile Robot)
Navigation Mode	2D Barcode / L-Slam / V-Slam
Rated Load (Kg)	1000
Dimension (mm)	1150 * 820 * 300
Rotation Diameter	1200 mm
Chassis Above Ground	25 mm
Control Mode	Point to Point Control
Transport Package	Wooden Box
Specification	950 * 650 * 300
Origin	China

Packaging & Delivery

Package Size	135.00cm * 107.00cm * 47.00cm
Package Gross Weight	220.000kg

Product Description

Industrial Automation Mobile Robot for 1000kg Load Capacity Operations

Key Features

High Extensibility:
- Compatible with various upper-level structures, including rollers, small mechanical arms, and patrolling equipment.
- Supports hardware interface requirements such as power supply, communication, and I/O from upper-level structures.
Rich Products:
- Product range includes multiple series, with loading capacity ranging from 0 kg to 1000 kg.
- Developed by a unified platform as the lifting LMR, characterized with modules, assemblies, and rich third-party hardware devices.
High Flexibility & Precision:
- Intelligent integrated sensing using data from multiple sensors.
- Precise controlling for high-accuracy motions and docking.
- Multiple navigation modes switching among V-SLAM, L-SLAM, and 2D barcode navigation modes.
Multi-Safety Protection:
- Multi-directional stereoscopic protection and multiple safety protection measures.

Specification

Technical Specifications (Custom configurations available upon request.)

Model	Q3B-600D	Q7B-1000E
Front protection	Laser	Laser
Sound and light alarm	Support	Support
Bumper strip	Support	Support
Emergency stop button	Support	Support
Rated running speed (empty) (mm/s)	2000	2000
Rated acceleration (empty) (mm/s²)	1000	1000
Positioning accuracy (mm)/(°)	± 10 / ± 1	± 10 / ± 1
Run time (h)	6-8	6-8
Charging time (h)	≤ 1.5	≤ 1.5

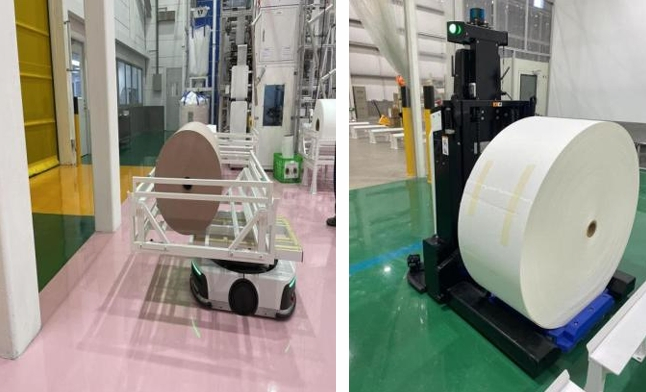

Configuration Applications

Upper-layer roller equipment

Upper-layer lifting equipment

Upper-layer mechanical arm equipment

Upper-layer belt equipment

Cases

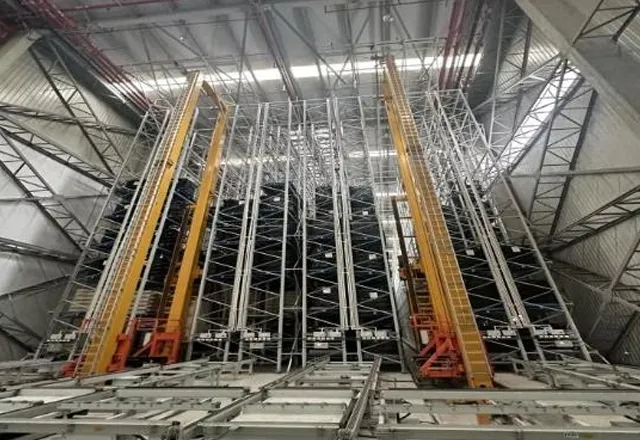

Automated Storage System Project for Raw Material Warehouse

Project Highlights

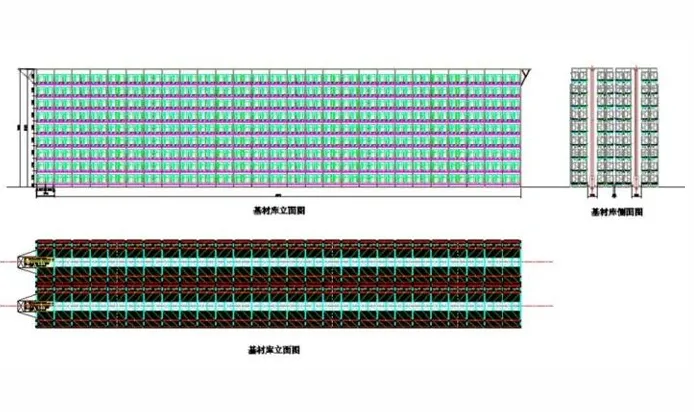

Automated warehouse design, stacker crane and system design

Project Scope

2 stacker cranes, 4 sets of racks, 3,888 storage locations. Inbound and outbound flow rate of 92 pallets per hour (P/H). 79 days for engineering design. 200 days for automated warehouse construction and final delivery.

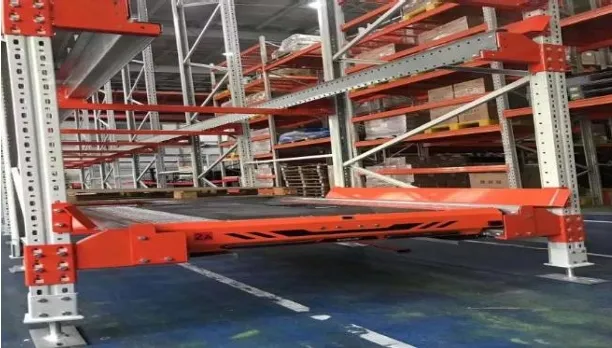

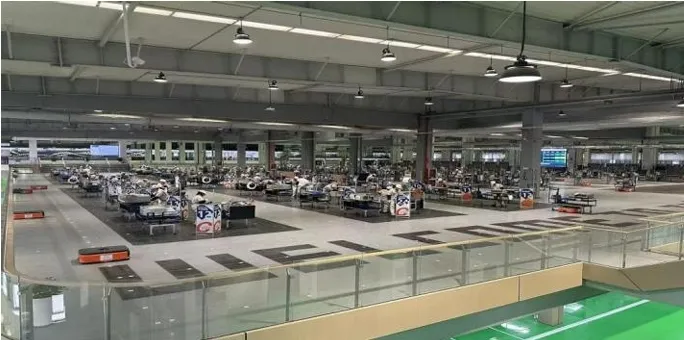

Automated Warehouse & LMR Project — Home Appliance Manufacturing Industry

Project Highlights

Automated warehouse, AGVs, shuttle racking system, latent mobile robots

Project Scope

Automated warehouse system, 120 LMRs. 100 pallets per hour (P/H), 40% reduction in labor costs. 30 days for shuttle-based automated warehouse delivery. 120 days for AGV logistics and material handling delivery.

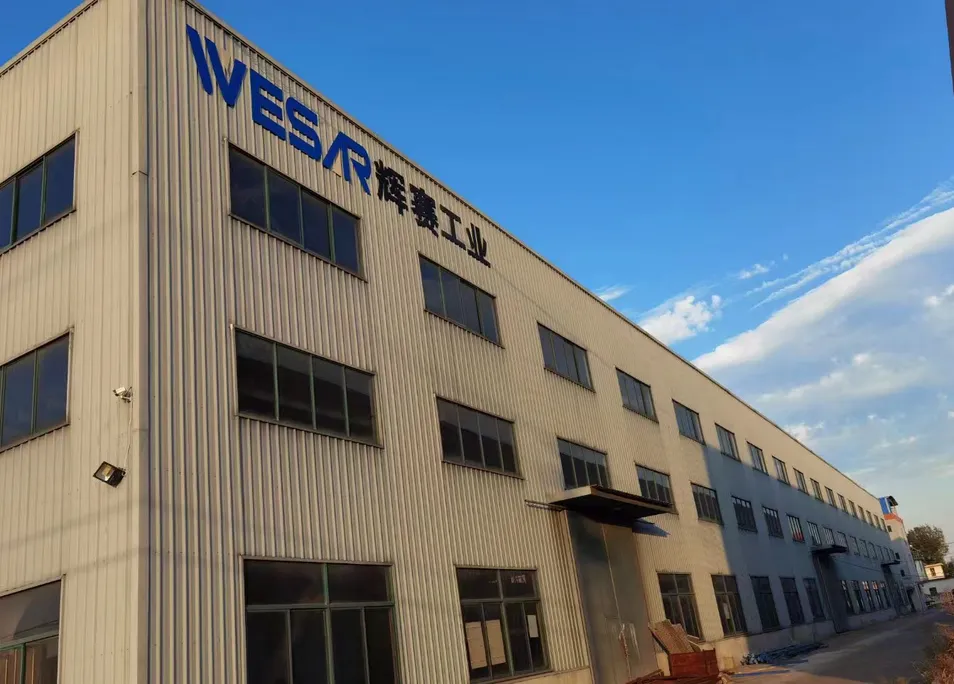

Company Profile

We are a professional enterprise providing one-stop smart factory solutions. Our core services encompass the production of smart shelving, intelligent logistics and warehousing handling robots, and the design and delivery of smart warehouses. We specialize in offering customized, expert-level integrated solutions, with service coverage including consulting and planning, software development, the manufacturing of automated production and assembly equipment, shelving manufacturing, automated storage and retrieval systems (ASRS), delivery of AGVs and AMRs, after-sales support, and the integration and application of advanced technologies.

Our team has established long-term, in-depth collaborations with renowned enterprises from Japan, Europe, and other regions, spanning industries such as automotive parts manufacturing, 3C product manufacturing, and the pharmaceutical sector. Officially expanding internationally in 2023, we have successfully completed and delivered smart warehouse projects in multiple countries including Bulgaria, Germany, and Thailand.

Why Choose Us?

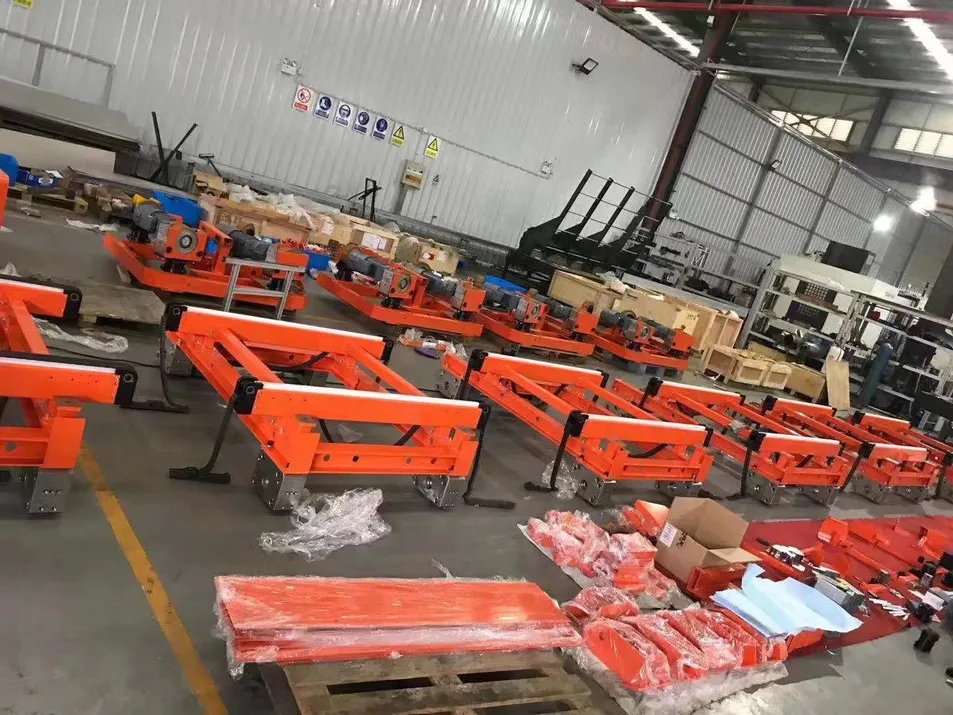

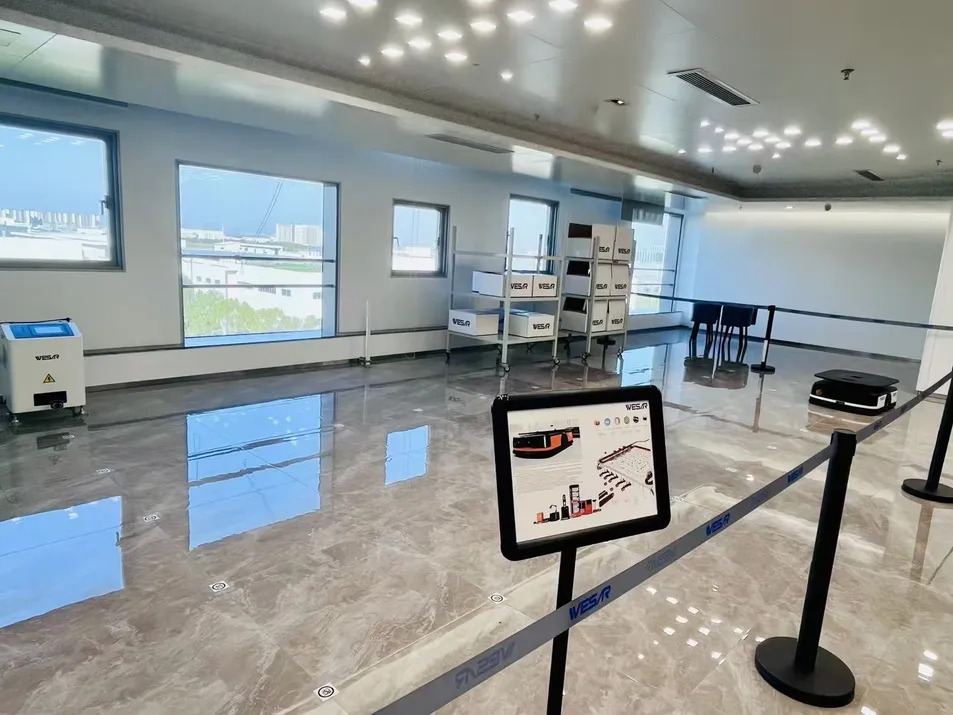

Our team comprises of 110+ hardworking employees, 6 talented software developers, and 16 experienced electrical and mechanical engineers, along with a 7000-square-meter factory.

Planning
Design
Manufacture
Installation
After-sales Service

Other Products

Intelligent warehousing Systems
Latent Mobile Robot
Forklift Mobile Robot
Carton Transfer Unit
Software platforms, etc.

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Frequently Asked Questions

How do we select the right AGV for our operations?

We recommend selecting the AGV hardware based on your actual operational requirements. Our team will analyze your needs and propose the most suitable AGV configuration.

Where can we get the final specifications for the current models?

As AGV hardware is continuously updated and upgraded, the final model and version specification shall be subject to the official info sheet provided by our technical team during project confirmation.

Is dedicated software required to run these AGVs?

Yes. To enable AGV operation, dedicated robot dispatching and control software is required to work in conjunction with the AGV hardware.

Can we implement and commission the AGV systems ourselves?

AGV commissioning typically requires a high level of professional expertise and hands-on experience. This work is handled by our expert commissioning team to ensure optimal safety and performance.

Can multiple types of AGVs operate simultaneously at the same site?

Yes, absolutely. Our dispatching system supports the co-operation of multiple AGVs, including different models and capacities, at a single facility to meet various material handling needs.

What information is needed to start planning an AGV implementation?

In the initial stage, we require the factory layout drawings, load details (pallet dimensions/weight), and specific flow requirements. Please prepare these details so our engineering team can review them.
