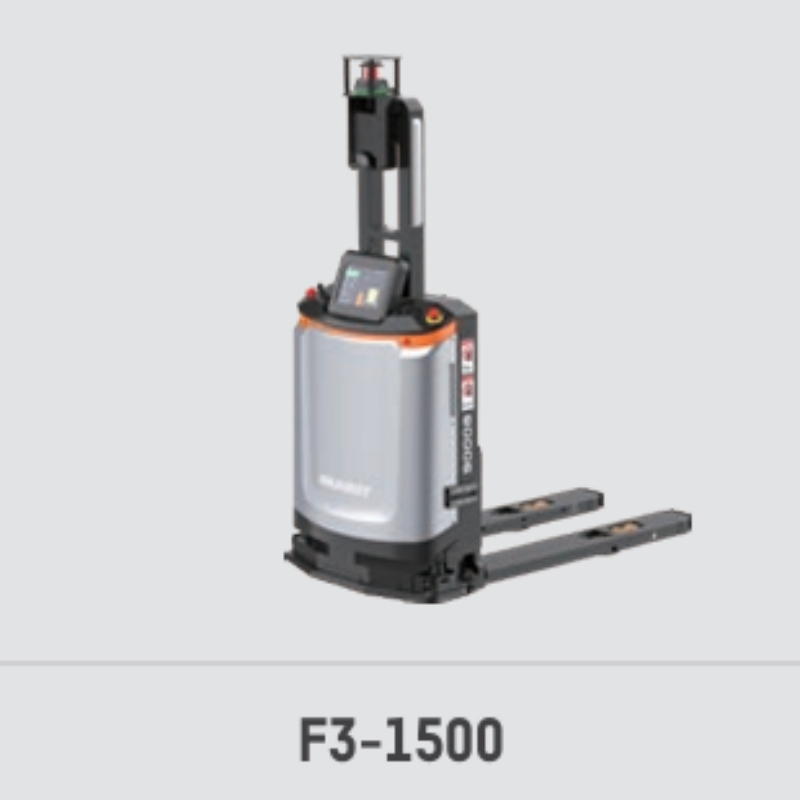

1500kg EU Pallet Material Transport Production Logistics Agv AMR Forklift Mobile Robot

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview & Basic Info
Model NO.
F3-1500
Load Capacity
1000 kg
Type
AMR (Autonomous Mobile Robot)
Dimension (L × W × H) (mm)
2245 * 806 * 2040
Weight (with Battery) (Kg)
440
Rated Load (Kg)
1000kg
Load Center Distance (C) (mm)
600
Fork Lifting Height (H3+H13) (mm)
215
Fork Above Ground After Lowering
90 mm
Fork Dimension (S/E/L) (mm)
85 / 180 / 1441
Fork Outer Width (B5) (mm)
680
Applicable Pallet Dimension (mm)
1800 * 1200
Control Mode
Point to Point Control
Safety Features
Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner
Transport Package
Wooden Box
Origin
China
Packaging & Delivery
Package Size
120.00cm * 200.00cm * 225.00cm
Package Gross Weight
800.000kg
Product Description
1500kg EU Pallet Material Transport Production Logistics Agv AMR Forklift Mobile Robot Banner
Carrying Series FMRs
Carrying series FMRs cover load ranging from 1,000kg to 3,000kg, with a maximum running speed of 2m/s. The lightweight FMR body is equipped with high-capacity batteries, which can be selected according to the needs of the right size, reducing redundancy with precise requirements. The specially designed thickness of the FMR body greatly reduces the width of the running aisle and improves the material storage space. The whole series adopts environmental contour navigation method and supports texture navigation, which makes full use of environmental information for localization and facilitates deployment and implementation.

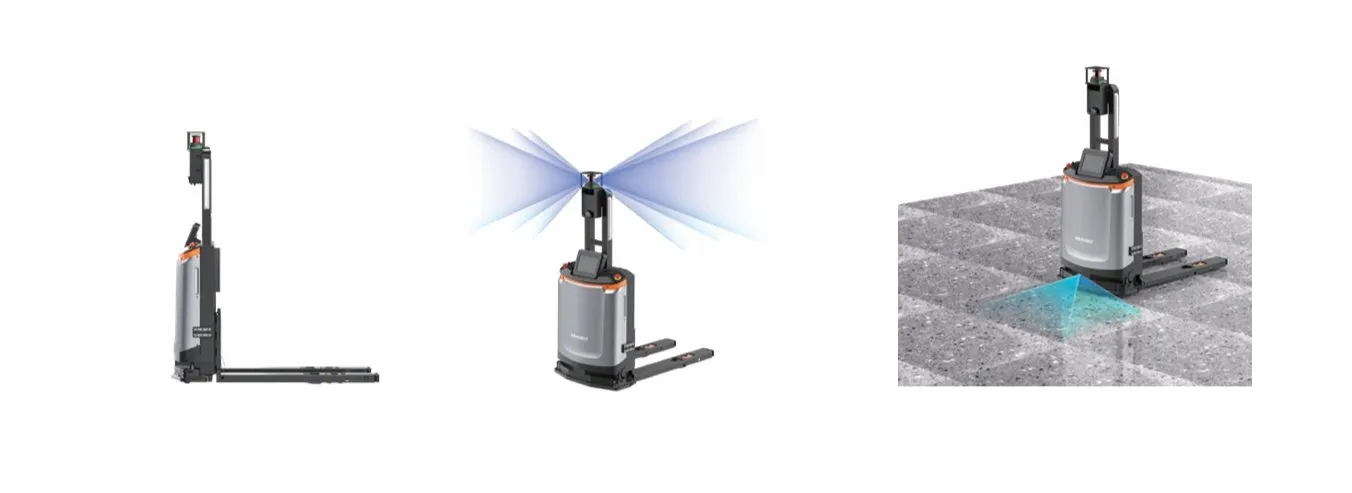

AMR Forklift Mobile Robot Operational Details
Docking & Transfer Scenarios
Lineside Carrying
Floor-to-Floor Transferring
Non-Passenger Freight Lifter Docking
Lineside Carrying Scenario
Floor-to-Floor Transferring Scenario

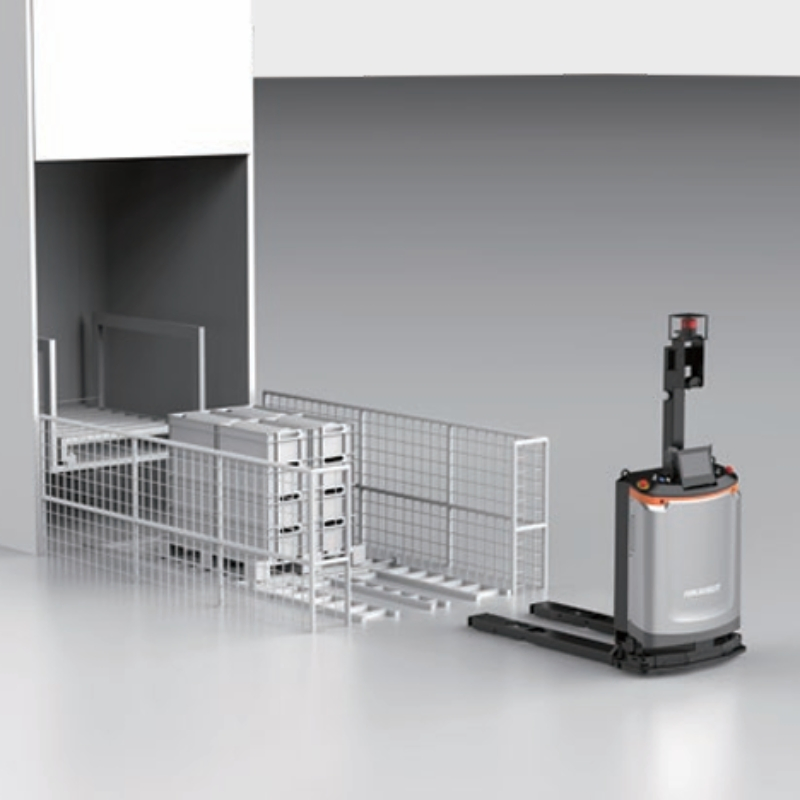

Lifter Docking Scenario
Key Features
Superior Performance
Efficient transportation: Maximum steady running speed up to 2m/s.
Wide load coverage: Fully independent design, with load ranging from 300kg to 3T.
Safe and reliable: 360° stereo sensing, recognizing various environments and objects.
Precise positioning: Millimeter-level positioning accuracy, combining laser and vision positioning.
Full-Featured
Pallet recognition: Automatic fork picking based on carrier offset.
Suspended low detection: Supports detecting suspended objects and low obstacles.
Directive compliance: Supports full directive CE architecture design, including mechanical, wireless, and electromagnetic directives.
Rich Models
Rich scenarios: Multiple forms of storage, including lineside carrying, deep storage, alleyway storage.
Diversified docking: Dock with other types of AMRs, elevators, automatic doors, conveyors, and other third-party devices.
Various carriers: Multiple types of pallets, frames, cage trolleys, flexible packages, and rolls.

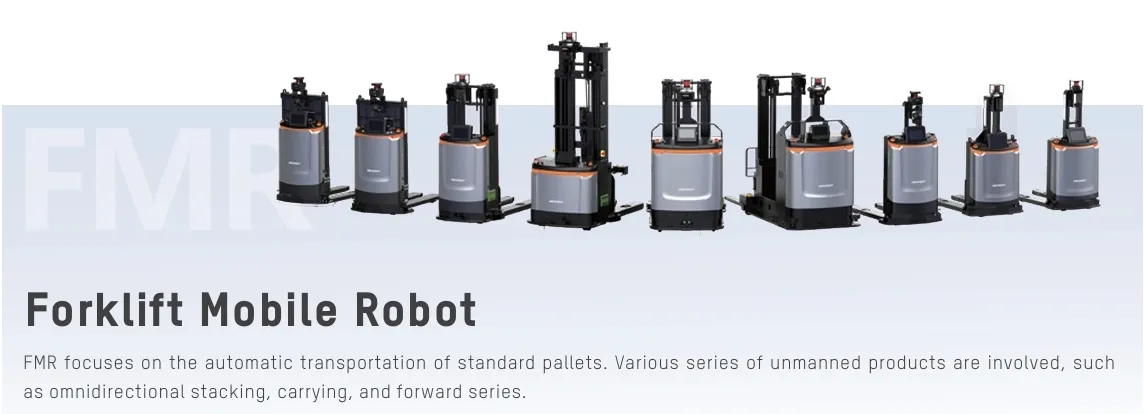

AMR Forklift Mobile Robot Navigation Paths
Specification Details
Model

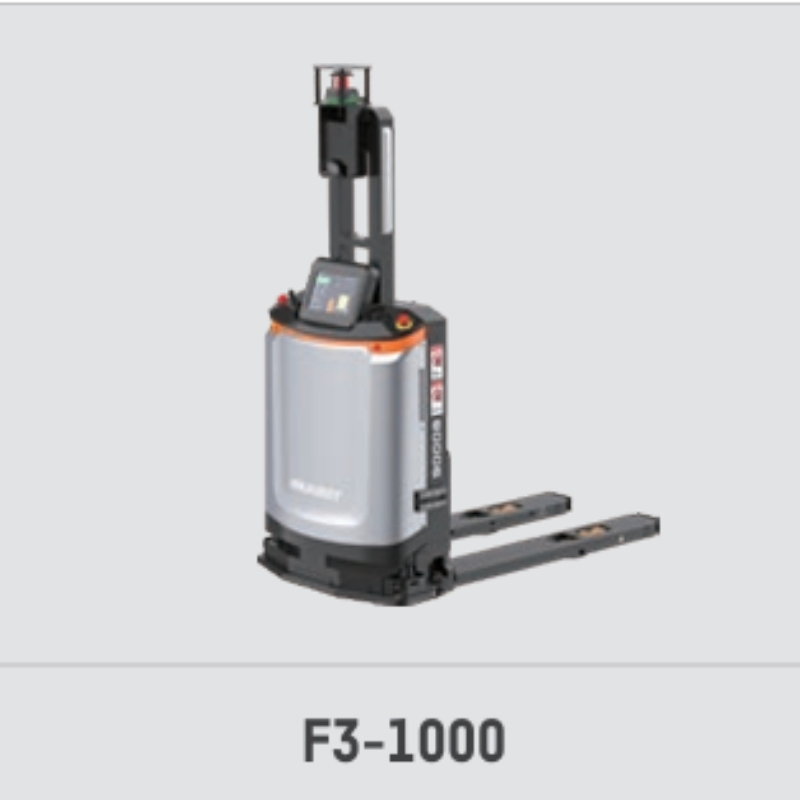

F3-1000
F3-1500

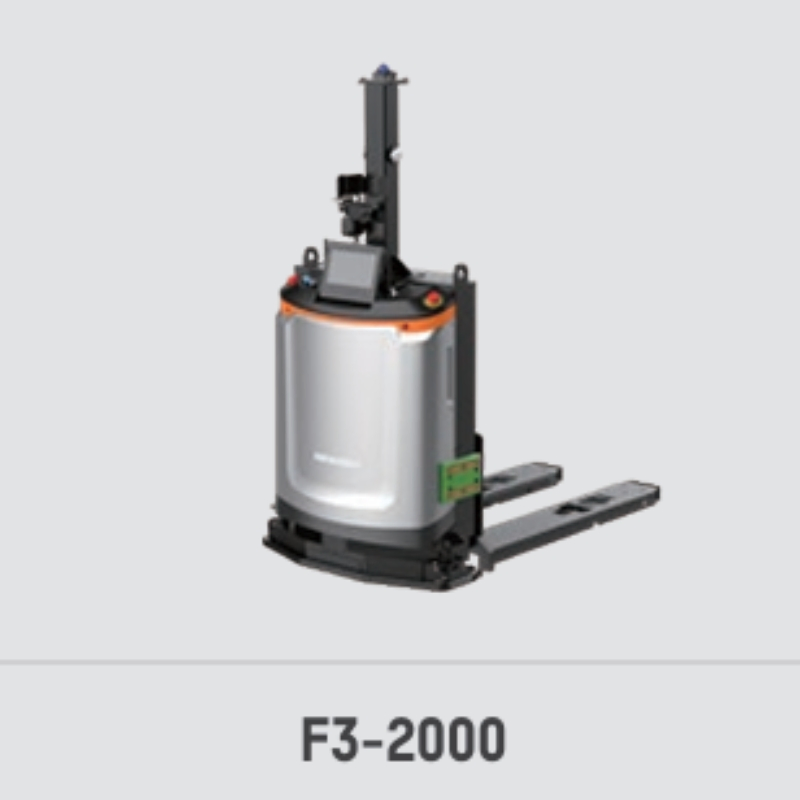

F3-2000

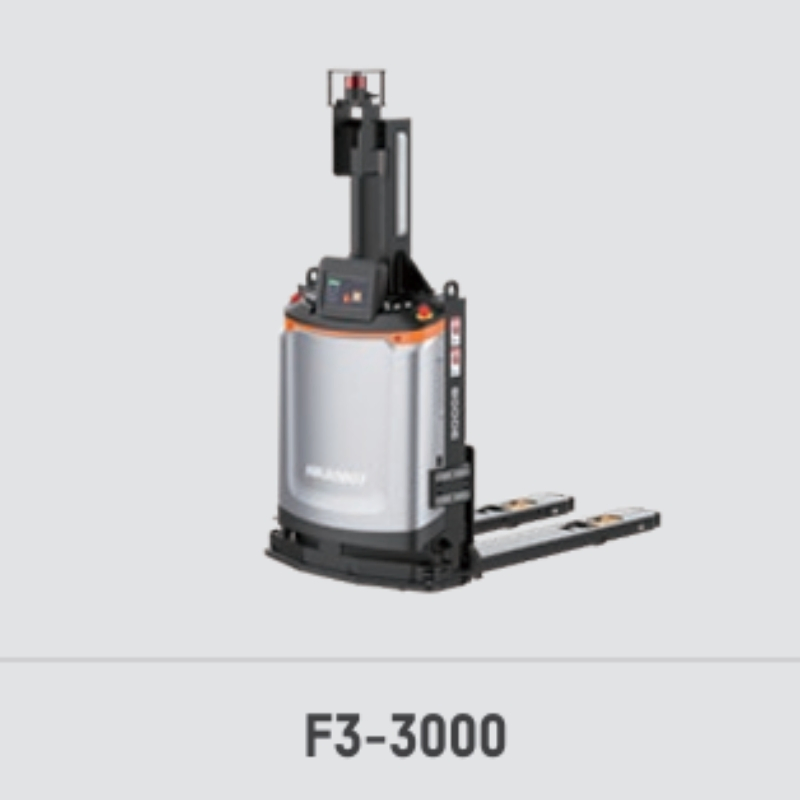

F3-3000
Rated running speed (m/s)
2.5
1.2
1.2
1.6
Positioning accuracy (mm)/(°)
±10/±1
±10/±1
±10/±1
±10/±1
Min. rotation radius (Wa) (mm)
1701
1297
1377
1480
Motion method
Forward, backward, arc, rotate in place
Forward, backward, arc, rotate in place
Forward, backward, arc, rotate in place
Forward, backward, arc, rotate in place
Min. aisle width (Ast) (mm)
2525
2191
2277
2230
Run time (h)
6-8
6-8
6-8
6-8
Charging time (h)
≤ 2
≤ 2
≤ 2
≤ 3
Laser obstacle avoidance
Support
Support
Support
Support
Recorder
Optional
Optional
Optional
Optional
Bumper Strip Detection
Support
Support
Support
Support
Pallet in-position detection
Support
Support
Support
Support
Fork collision detection
Support
Support
Support
Support
Emergency stop button
Support
Support
Support
Support
Indication light
Support
Support
Support
Support
Sound and light alarm
Support
Support
Support
Support
Human-machine interaction
Touchscreen
Touchscreen
Touchscreen
Touchscreen
Navigation Mode
L-SLAM/ 3D L-SLAM
L-SLAM/ 3D L-SLAM
L-SLAM/ 3D L-SLAM
L-SLAM/ 3D L-SLAM
Fork size customization
Customizable
Customizable
Customizable
Customizable
Pallet attitude recognition
Customizable
Customizable
Customizable
Customizable
Pallet binding recognition
Customizable
Customizable
Customizable
Customizable
Main Customers
Main Customers Global Showcase
After Sales Service
One-Year Warranty
Full quality assurance and technical backing for a complete year.
24-Hour Remote Support
Online technical assistance available around the clock to solve issues.
On-Site Assistance
On-site support provided within 48 hours after visa approval during warranty.
Company Profile

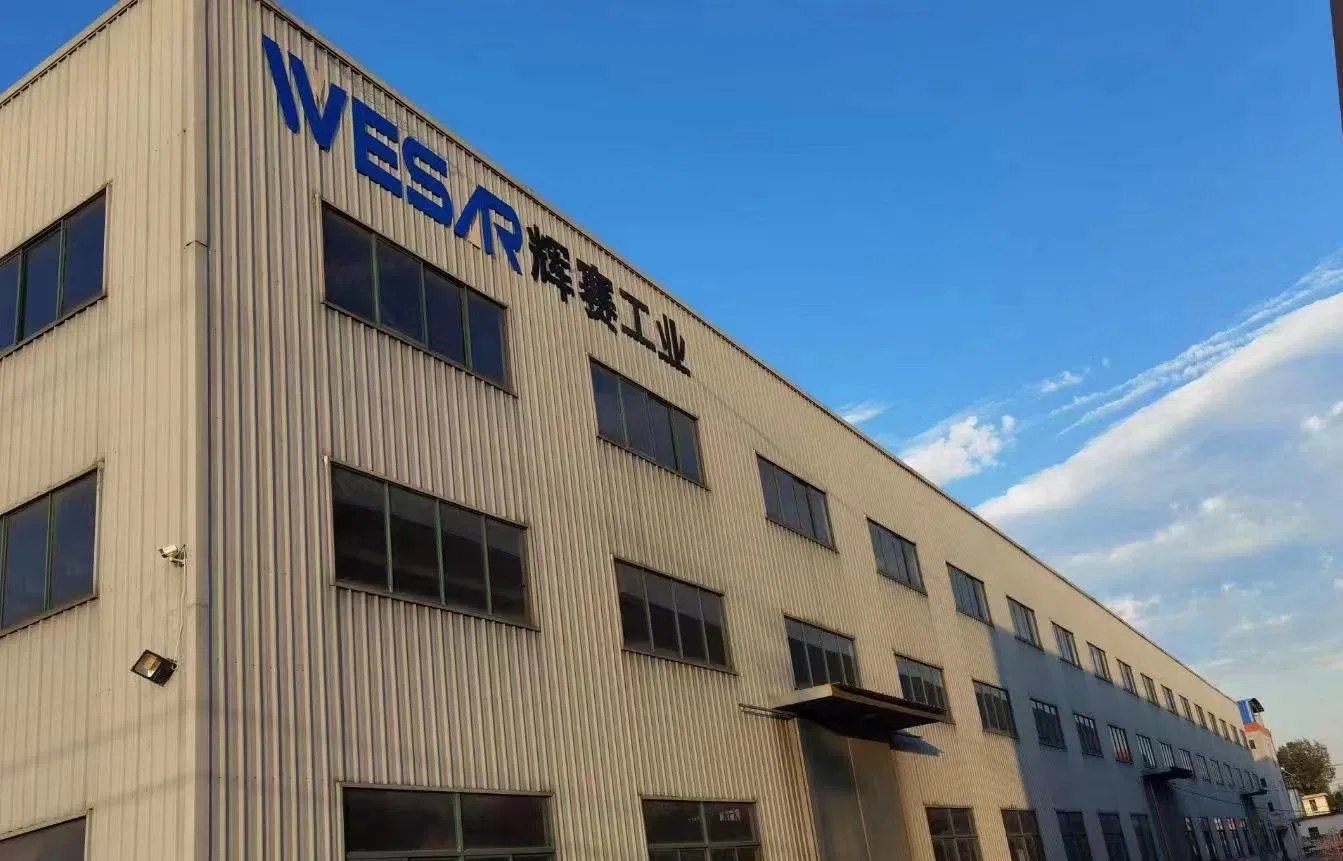

Intelligent Factory Solutions R&D and Manufacturing Base
As a one-stop intelligent factory solutions provider, we specialize in core services such as green intelligent logistics robots, intelligent factory system design, and construction. We are dedicated to offering customers expert-level, customized, integrated solutions that include consulting and planning, software development and equipment manufacturing, project implementation and after-sales support, as well as advanced technology integration and enablement.

Market-driven and managed by an experienced and knowledgeable team who has many years of industry experience, we guarantee customer satisfaction with a professional on-site installation and after-sales engineering team. Our product line includes: AGV robots, WMS systems, ASRS with storage shelves, factory equipment, logistics equipment, conveyor and mobile yard ramps, storage cabinets, etc. We also help our customers to develop their material flow solutions to bring the best value.
Certifications

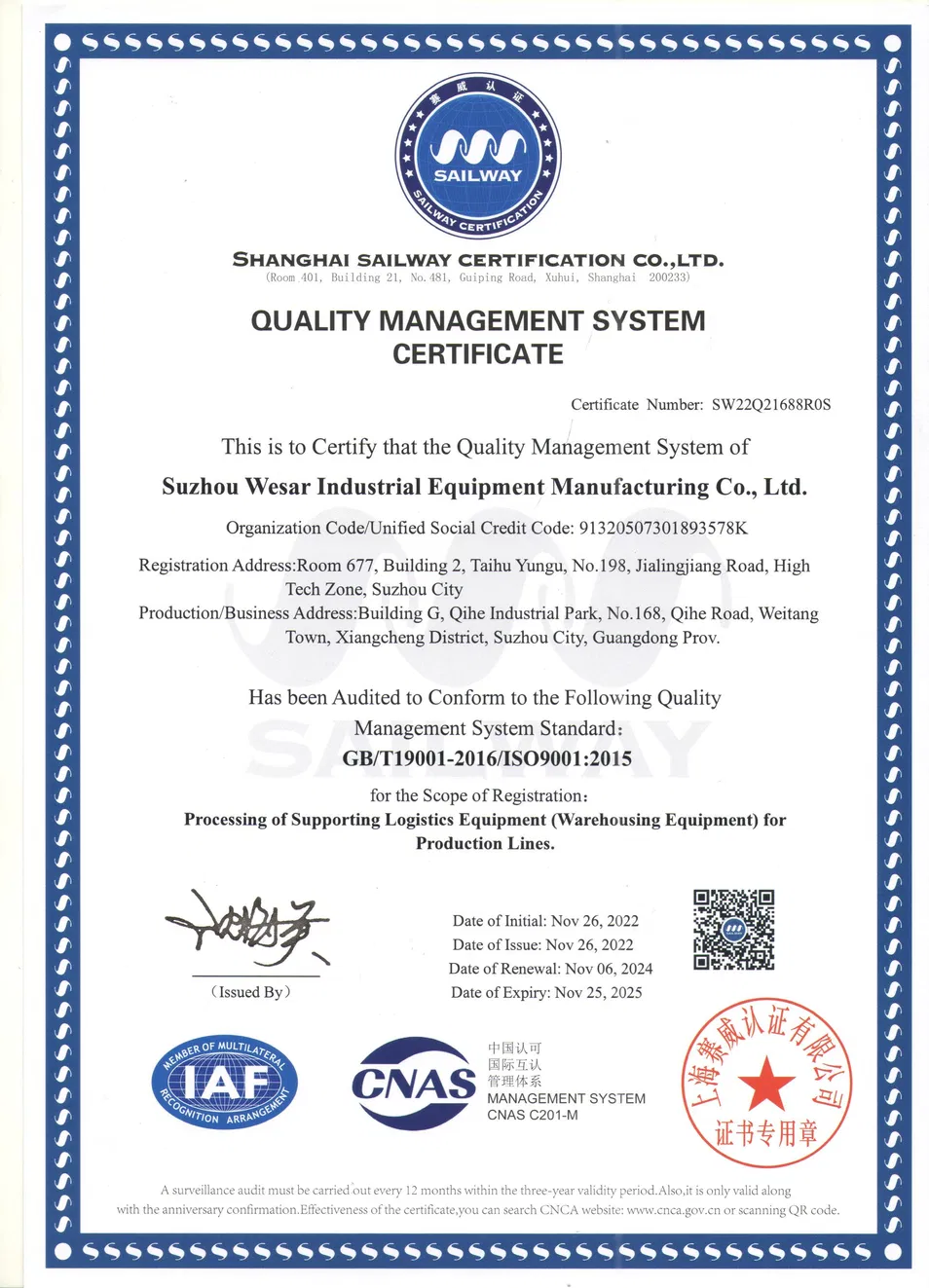

Product Quality Certification 1
Product Quality Certification 2
Frequently Asked Questions
How do we select the right AGV for our needs?
We recommend selecting the AGV hardware based on your actual operational requirements. Our engineering team will analyze your setup and propose the most suitable configuration.
Are the AGV models and versions regularly upgraded?
Yes, AGV hardware is continuously updated and upgraded. The final model and version will be subject to the official specifications provided at the time of your inquiry.
Is specialized software required for AGV operation?
Yes. To enable seamless AGV operations, dedicated robot dispatching and control software is required to work in conjunction with the AGV hardware.
Can we perform the AGV setup and implementation ourselves?
AGV commissioning requires a high level of professional expertise and hands-on experience. This setup process will be handled by our specialized engineering team.
Can multiple AGVs or different models operate at the same site?
Yes, absolutely. The control system supports the simultaneous operation of multiple AGVs, including different models, on the same site to meet diverse material handling requirements.
What information is needed to start an AGV integration project?
To start design and planning, we require your factory layout, pallet dimensions, and material weight details. Please reach out to our team to discuss your specific requirements.
