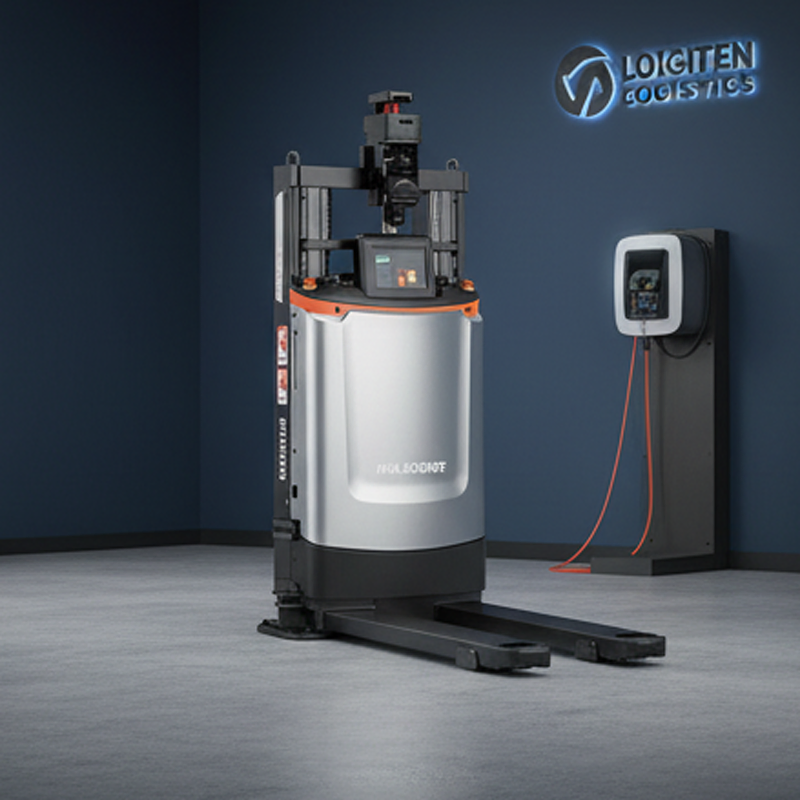

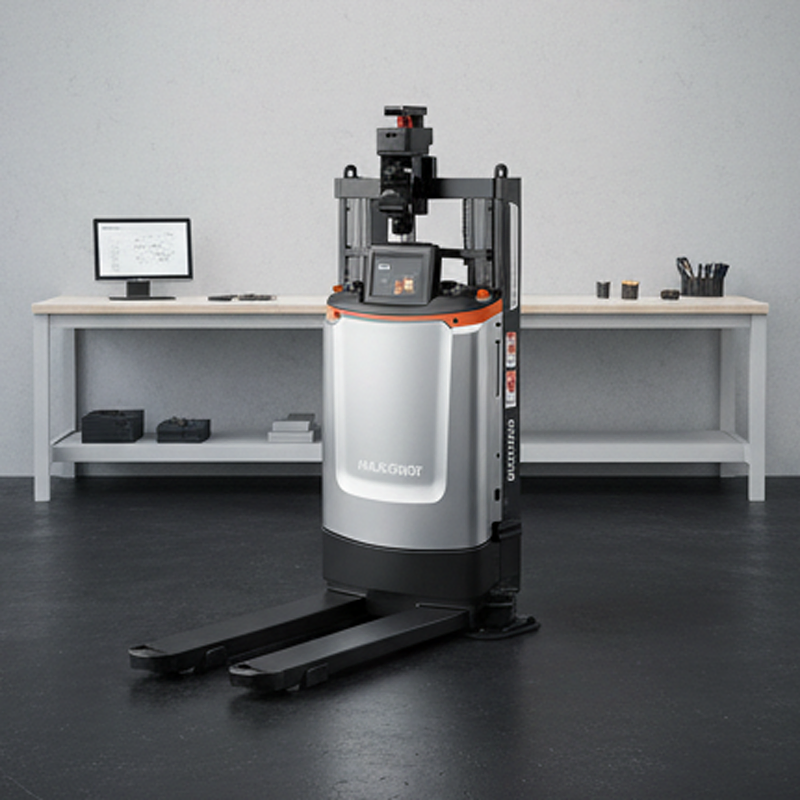

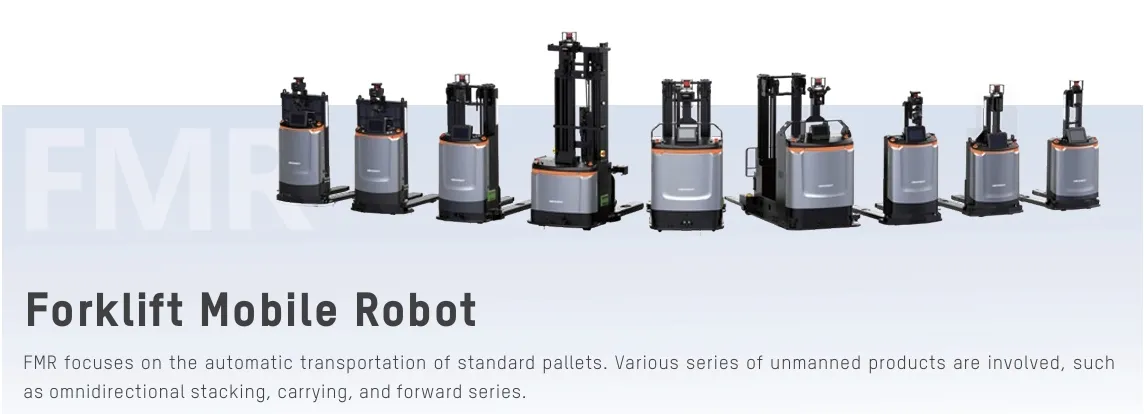

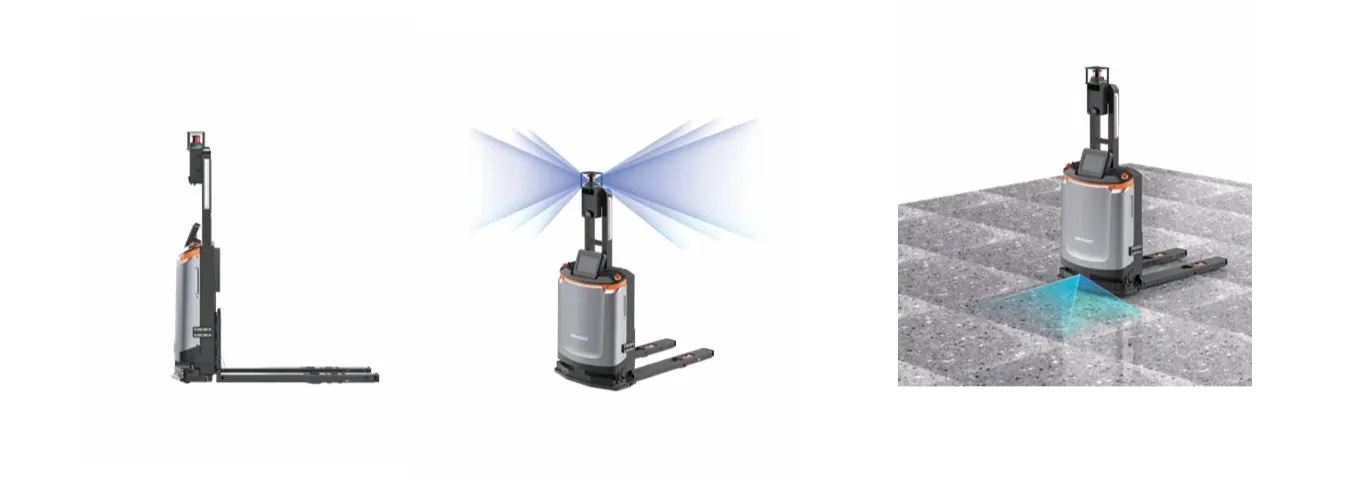

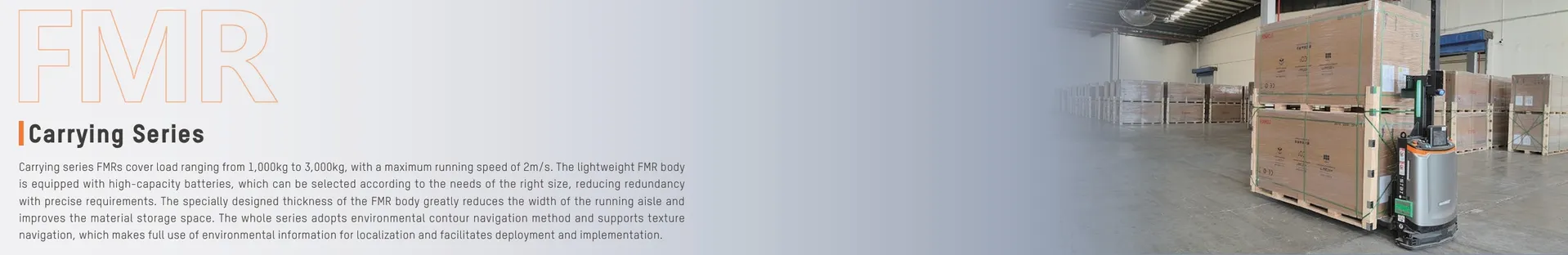

Carrying series FMRs cover load ranging from 1,000kg to 3,000kg, with a maximum running speed of 2m/s. The lightweight FMR body is equipped with high-capacity batteries, which can be selected according to the needs of the right size, reducing redundancy with precise requirements. The specially designed thickness of the FMR body greatly reduces the width of the running aisle and improves the material storage space. The whole series adopts environmental contour navigation method and supports texture navigation, which makes full use of environmental information for localization and facilitates deployment and implementation.
| Model | F3-1000 | F3-1500 | F3-2000 | F3-3000 |
|---|---|---|---|---|
| Rated running speed (m/s) | 2.5 | 1.2 | 1.2 | 1.6 |
| Positioning accuracy (mm)/(°) | ±10/±1 | ±10/±1 | ±10/±1 | ±10/±1 |
| Min. rotation radius (Wa) (mm) | 1701 | 1297 | 1377 | 1480 |
| Motion method | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place |
| Min. aisle width (Ast) (mm) | 2525 | 2191 | 2277 | 2230 |
| Run time (h) | 6-8 | 6-8 | 6-8 | 6-8 |
| Charging time (h) | ≤ 2 | ≤ 2 | ≤ 2 | ≤ 3 |
| Laser obstacle avoidance | Support | Support | Support | Support |
| Recorder | Optional | Optional | Optional | Optional |
| Bumper Strip Detection | Support | Support | Support | Support |
| Pallet in-position detection | Support | Support | Support | Support |
| Fork collision detection | Support | Support | Support | Support |
| Emergency stop button | Support | Support | Support | Support |
| Indication light | Support | Support | Support | Support |
| Sound and light alarm | Support | Support | Support | Support |
| Human-machine interaction | Touchscreen | Touchscreen | Touchscreen | Touchscreen |
| Navigation Mode | L-SLAM/ 3D L-SLAM (Customizable) | L-SLAM/ 3D L-SLAM (Customizable) | L-SLAM/ 3D L-SLAM (Customizable) | L-SLAM/ 3D L-SLAM (Customizable) |
| Fork size customization | Customizable | Customizable | Customizable | Customizable |
| Pallet attitude recognition | Customizable | Customizable | Customizable | Customizable |
| Pallet binding recognition | Customizable | Customizable | Customizable | Customizable |

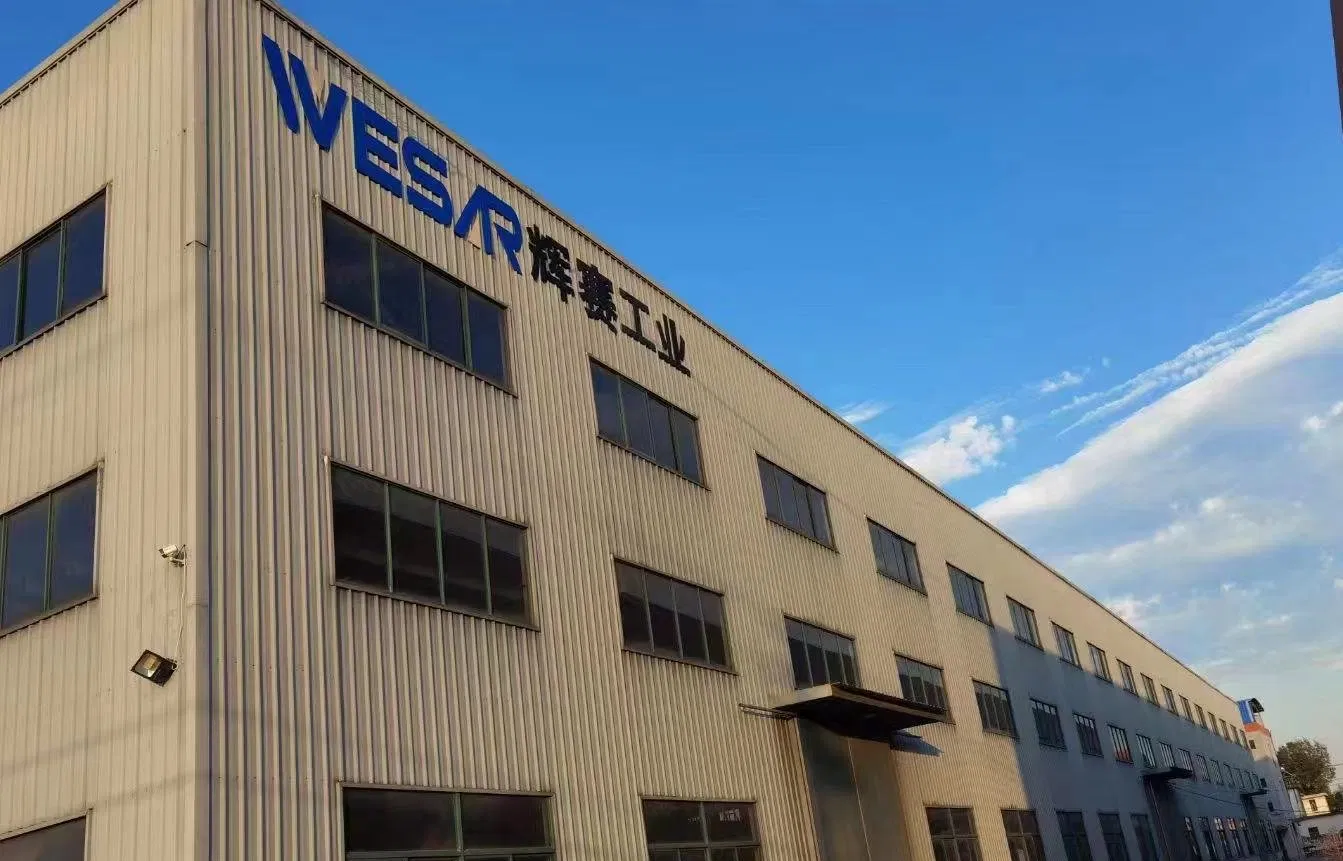

As a one-stop intelligent factory solutions provider, the company specializes in core services such as green intelligent logistics robots, intelligent factory system design and construction. We are dedicated to offering customers expert-level, customized, integrated solutions that include consulting and planning, software development and equipment manufacturing, project implementation and after-sales support, as well as advanced technology integration and enablement.
The company is market-driven and managed by an experienced and knowledgeable team, who has many years of industry experience. Furthermore, a professional on-site installation and after-sales engineering team guarantees customer satisfaction. The product line includes: AGV robots, WMS systems, ASRS with storage shelves, factory equipment, logistics equipment, conveyor and mobile yard ramps, storage cabinet, etc. We also help our customers to develop their material flow solutions. These tailor-made solutions bring the best value to customers.
We recommend selecting the AGV hardware based on the customer's actual operational requirements. Our team will be responsible for proposing the most suitable AGV configuration.
Yes. As AGV hardware is continuously updated and upgraded, the final model and version shall be subject to the official information provided by our team.
Yes. To enable AGV operation, dedicated robot dispatching and control software is required to work in conjunction with the AGV hardware.
AGV commissioning typically requires a high level of professional expertise and hands-on experience. This part of the work is handled by our professional team. Additional fees may apply for commissioning services.
Yes, absolutely. We support the operation of multiple AGVs, including different models, at the same site to meet various material handling requirements.
The implementation timeline varies depending on the project scope and specifications. In some cases, deployment can be completed in as little as two weeks.
