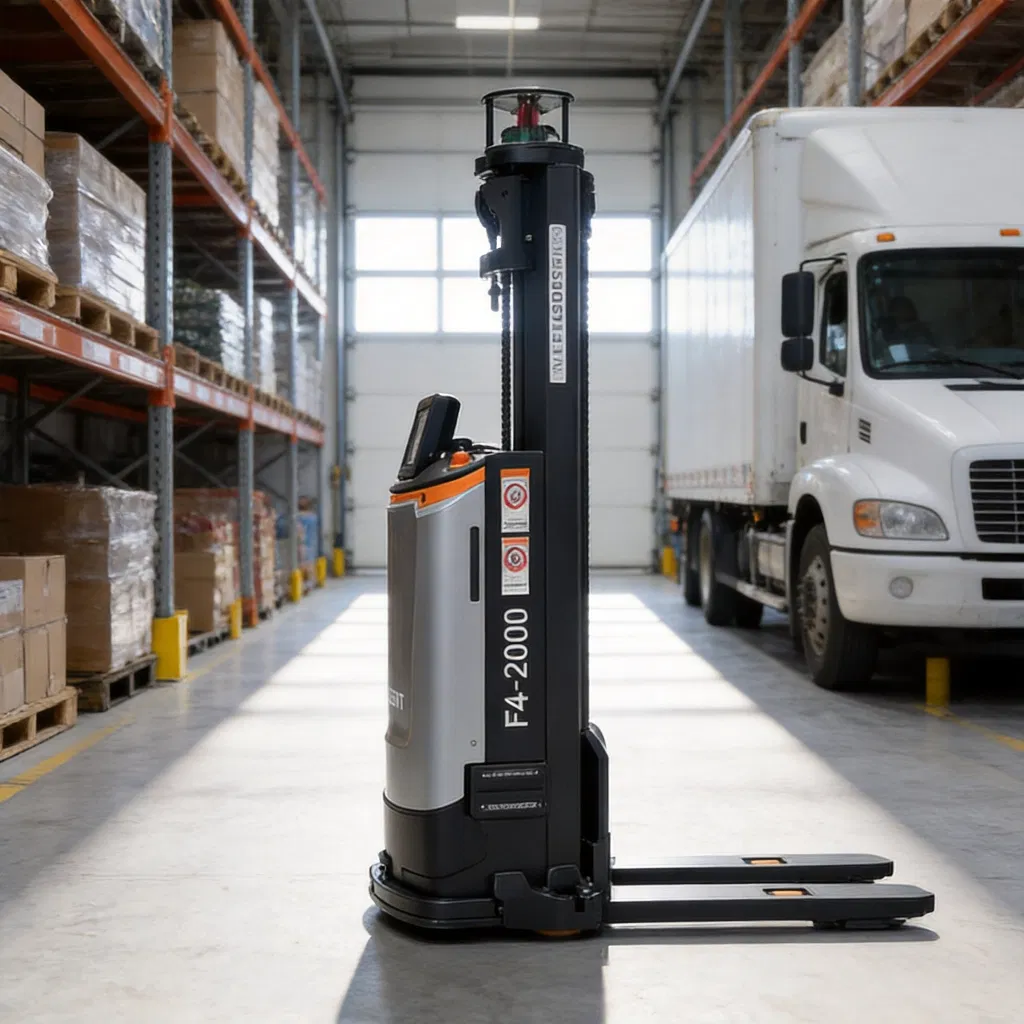

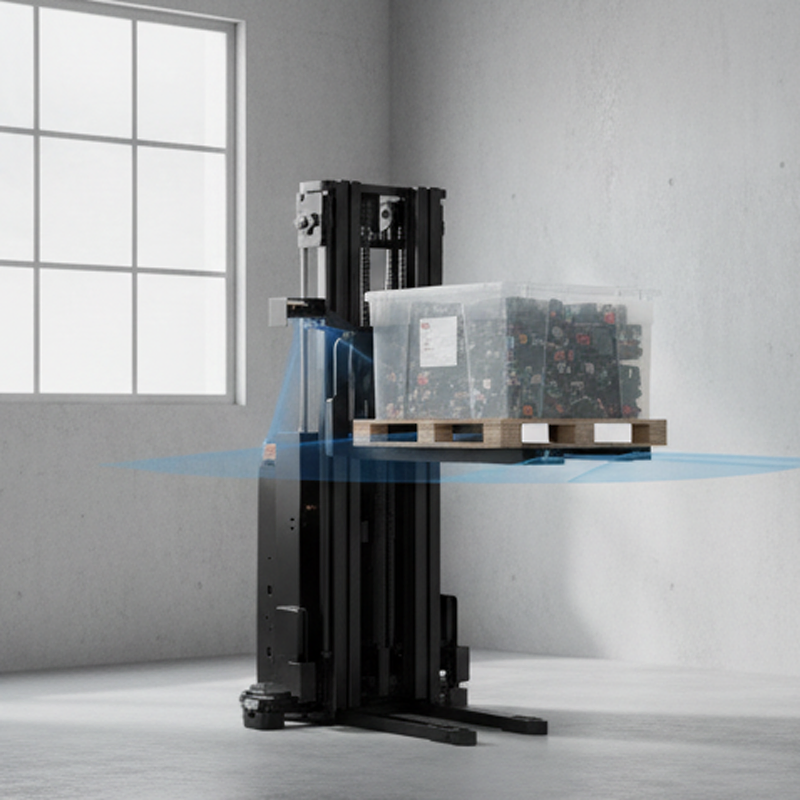

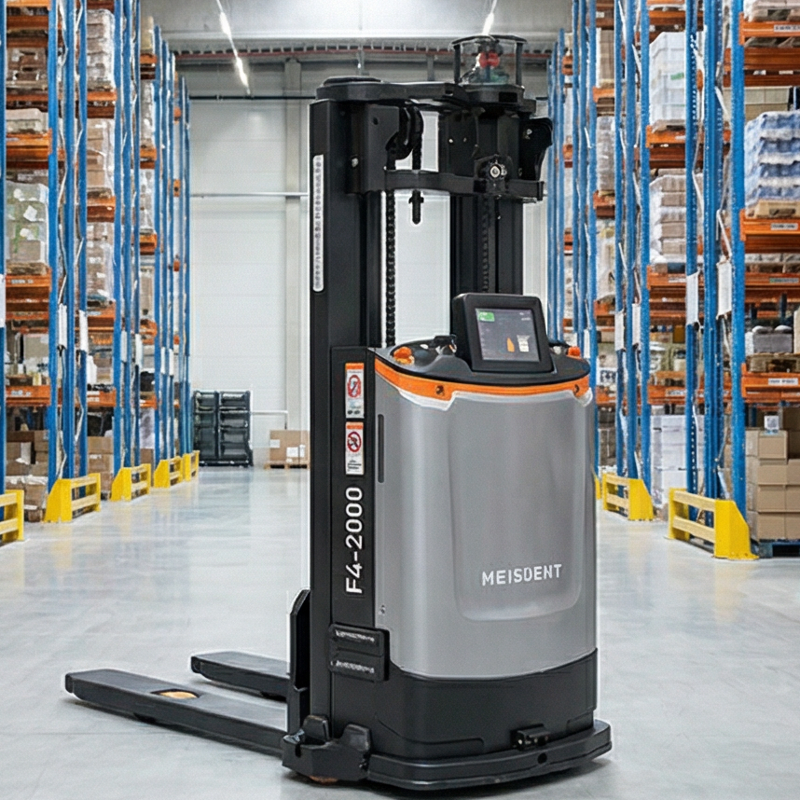

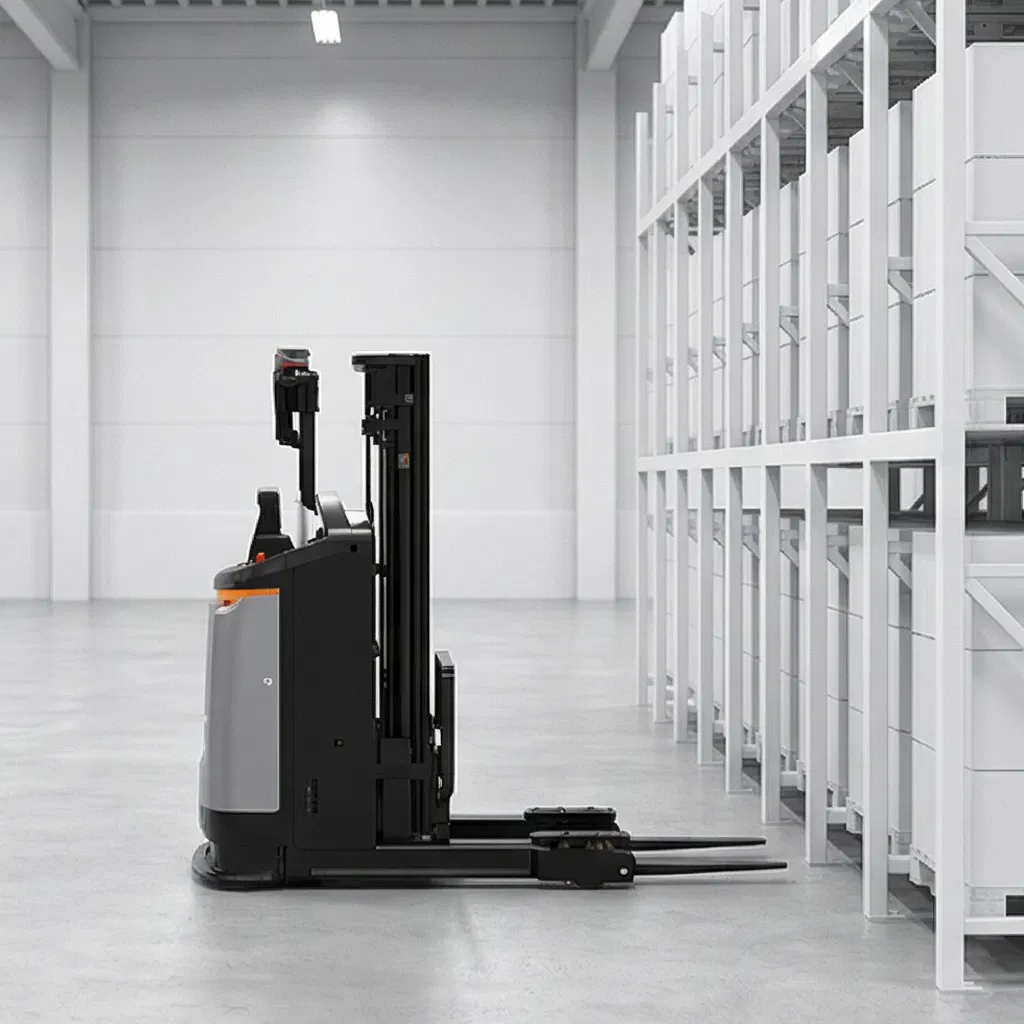

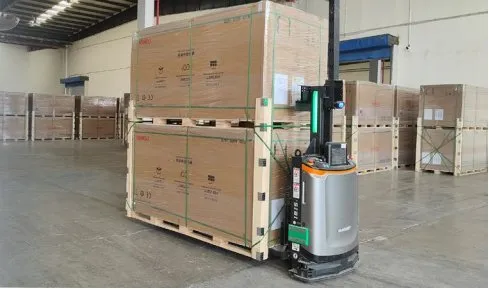

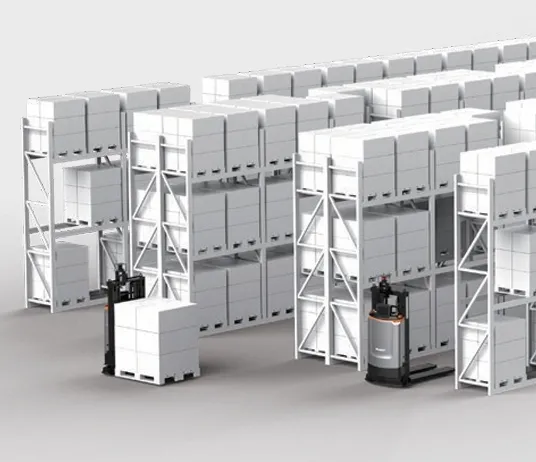

Stacking series FMRs cover the load ranging from 1,000kg to 3,000kg, with the highest lifting height being customized up to 4.5m. The specially designed thickness of the FMR body greatly reduces the operation aisle width, and effectively improves the storage space of materials. Adopting iconic robot head design and modular components, 80% of the components can be used in different scenarios. The whole series obtains full directive CE marking, which are the preferred product series for logistics solutions.
| Model NO. | F4-1000C |
| Load Capacity | 1000 kg |
| Safety Features | Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner |
| Type | AMR (Autonomous Mobile Robot) |
| Dimension (L*W*H) | 1692*990*1983 mm |
| Weight (with Battery) | 700 Kg |
| Rated Load | 1000 Kg |
| Load Center Distance | 600 mm |
| Fork Lifting Height | 1331 mm |
| Fork Ground Clearance | 81 mm (After Lowering) |
| Fork Dimension | 65/180/1233 mm |
| Fork Outer Width | 680 mm |
| Applicable Pallet | 1200*1000 mm |
| Control Mode | Point to Point Control |
| Origin | China |
| Package Size | 120.00cm * 200.00cm * 225.00cm |
| Package Gross Weight | 800.000kg |
| Transport Package | Wooden Box |
| Model | F4-1000C | F4-1500 | F4-2000 (3m) | F4-2000 (4.5m) | F4-3000 |
|---|---|---|---|---|---|
| Rated running speed (m/s) | 1.2 | 1.2 | 1.2 | 1.2 | 1.5 |
| Positioning accuracy (mm)/(°) | ±10/±1 | ±10/±1 | ±10/±1 | ±10/±1 | ±10/±1 |
| Min. rotation radius (Wa) (mm) | 1183 | 1316 | 1400 | 1400 | 1891 |
| Motion method | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place |
| Min. aisle width (Ast) (mm) | 2062 | 2490 | 2065 | 2065 | 2864 |
| Run time (h) | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 |
| Charging time (h) | ≤ 2 | ≤ 2 | ≤ 2 | ≤ 2 | ≤ 2 |

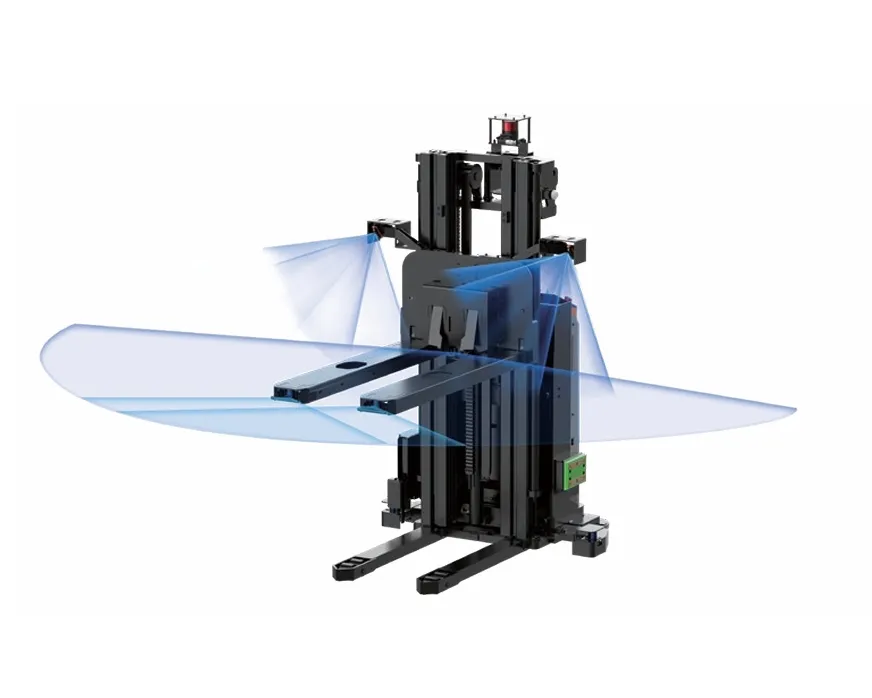

| Laser obstacle avoidance | Support | Support | Support | Support | Support |
| Recorder | Optional | Optional | Optional | Optional | Optional |
| Bumper Strip Detection | Support | Support | Support | Support | Support |
| Pallet in-position detection | Support | Support | Support | Support | Support |
| Fork collision detection | Support | Support | Support | Support | Support |
| Emergency stop button | Support | Support | Support | Support | Support |
| Navigation Mode | L-SLAM/ 3D L-SLAM (Customizable) | L-SLAM/ 3D L-SLAM (Customizable) | L-SLAM/ 3D L-SLAM (Customizable) | L-SLAM/ 3D L-SLAM (Customizable) | L-SLAM/ 3D L-SLAM (Customizable) |
Automated warehouse design, stacker crane and system design.
