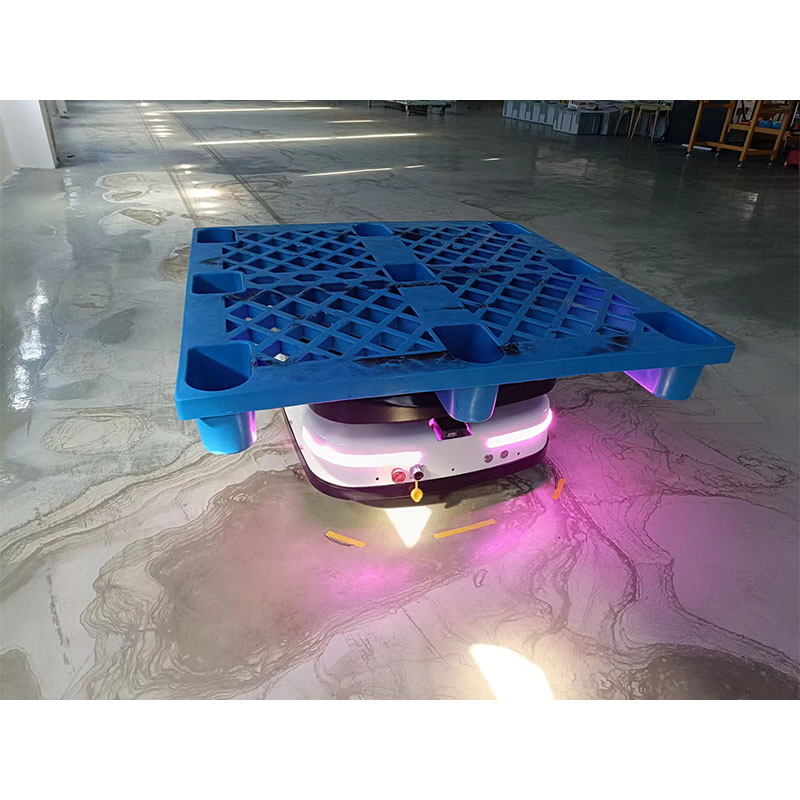

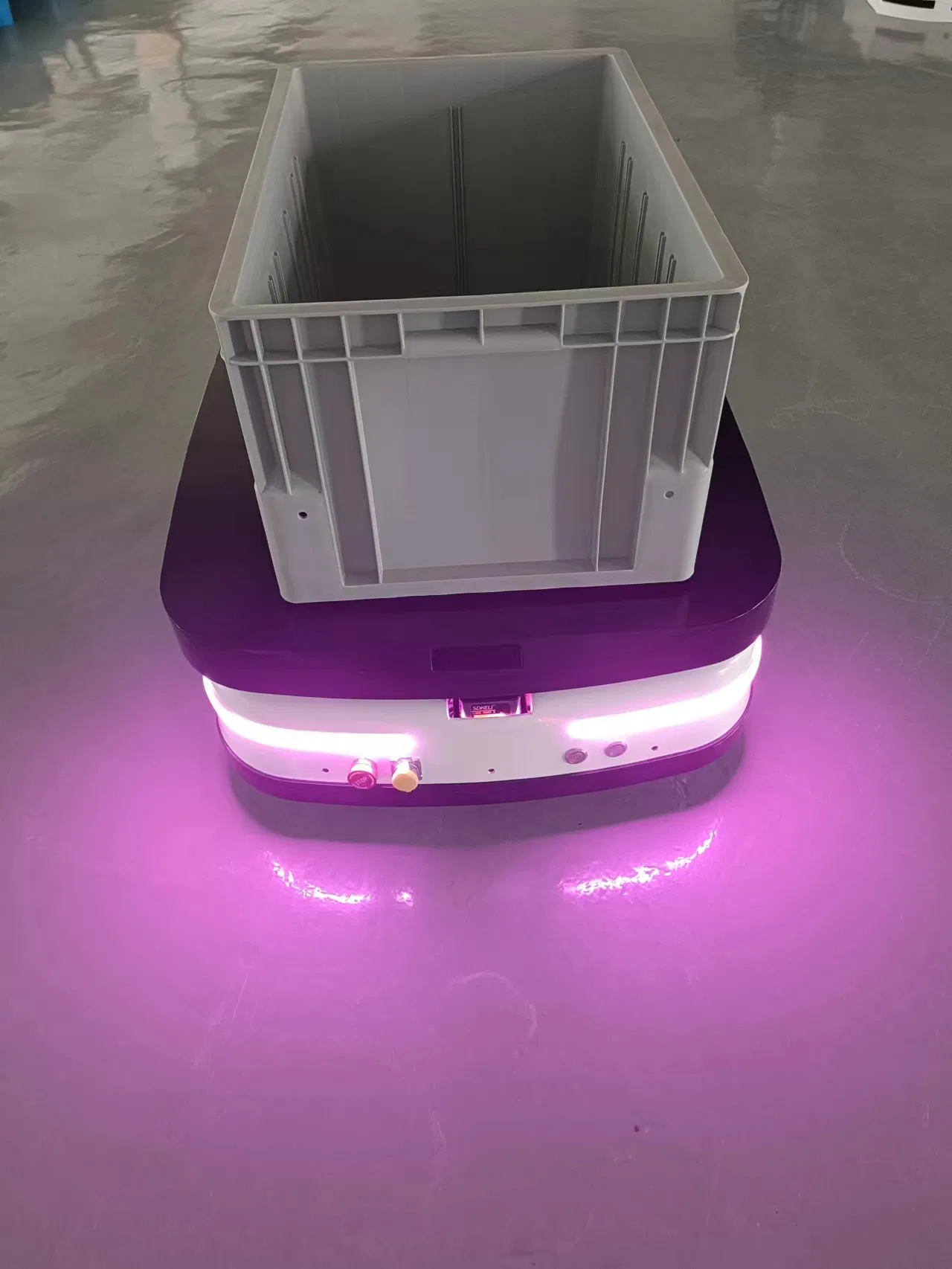

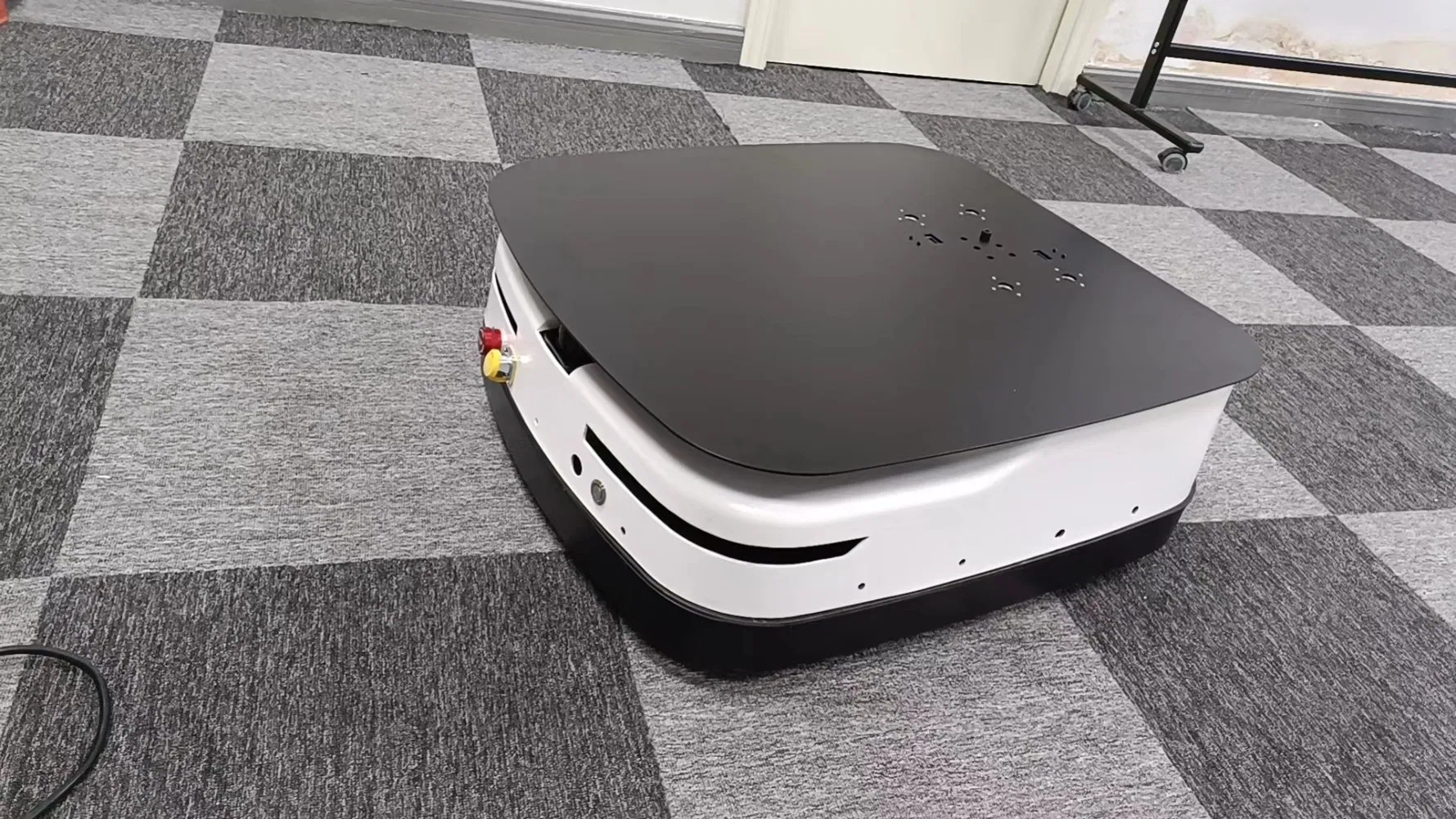

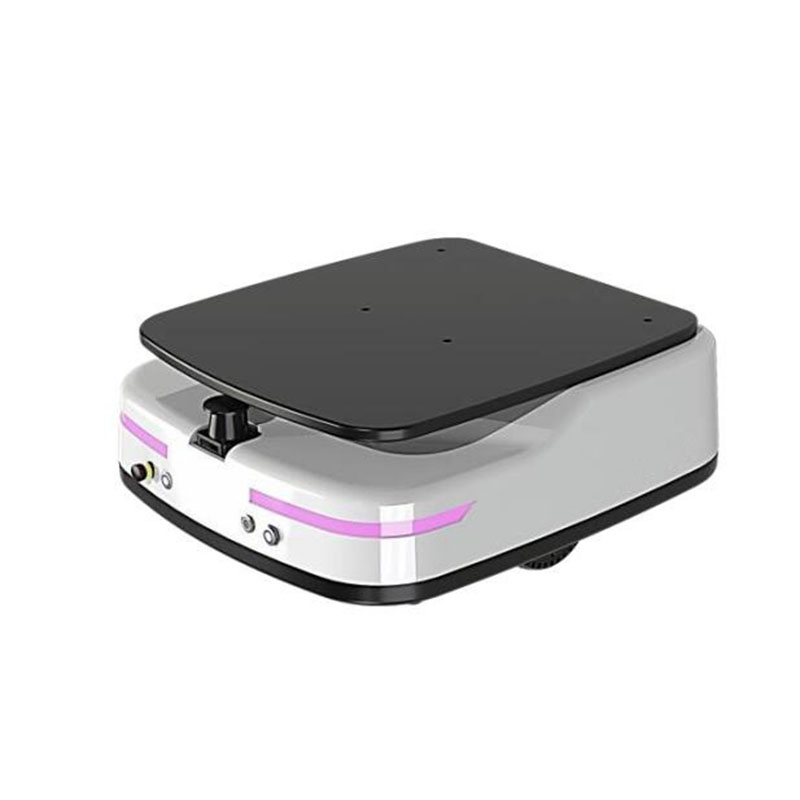

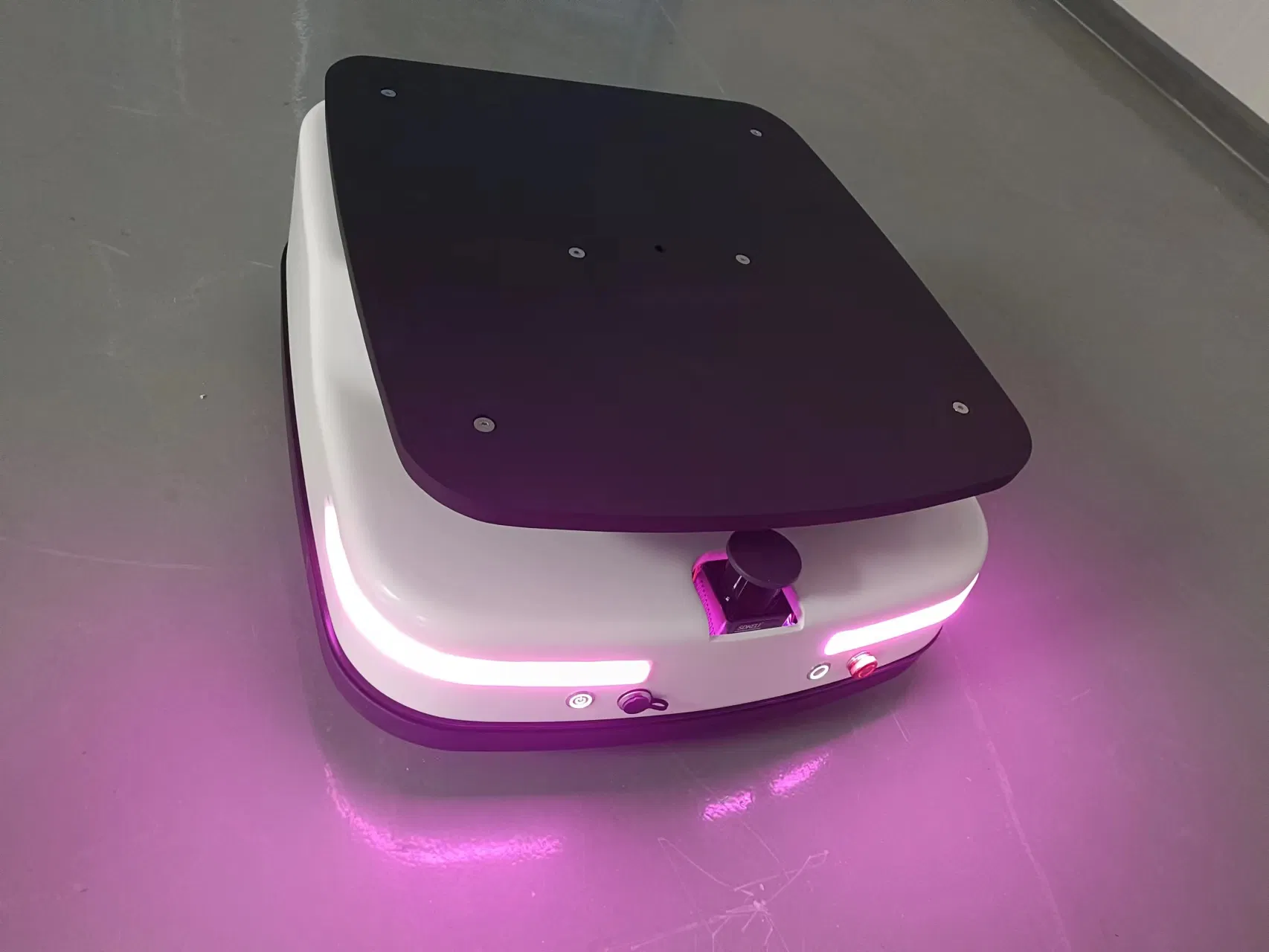

Material Handling Robot Transport Robot Lifting Platform Agv Robot
Model: HT-17300 AMR
| Serial No. | Item | Parameters |
|---|---|---|
| 1 | Machine dimensions | L750xW660xH300mm |
| 2 | Machine net weight | about 69kg |
| 3 | Maximum lifting capacity | 300kg (Recommended frequent load < 300KG) |
| 4 | Max speed | 1.5m/s (empty run) |
| 5 | Maximum acceleration | 1.0m/s² |
| 6 | Navigation mode | laser SLAM |
| 7 | Obstacle avoidance range | ≤ 25m |
| 8 | Communication method | WIFI Wireless communication |
| 9 | Walking position accuracy | ± 1cm |
| 10 | Lift control method | Closed-loop servo control system |
| 11 | Power supply method | Lithium battery |
| 12 | Power Supply voltage | 48V |
| 13 | Full battery charge and discharge cycles | ≥ 2000 times |
| 14 | Single full charge endurance time | Lithium battery 80% charge, Endurance time > 5h |
| 15 | Charging method | Automatic charging |
| 16 | Operating mode | Automatic mode / Manual mode |
| 17 | Operating temperature / Charging temperature | 0~45ºC (Normal temp) / -20~0ºC (Low temp) |
| 18 | Mobile-mounted motor power | 680W |
| 19 | Lift-mounted motor power | 400W~750W |
| 20 | Motor brand | Self-developed maintenance-free gearbox and motor integrated machine |
| 21 | Packing | Wooden case |
Packaging: 1 set in a wooden case.
Shipping: By express, by air, by sea, by truck or by rail.
Delivery time: About 70 natural days after order confirmed.
We provide test videos at the time of delivery.
Technical support includes API interfaces, protocols, communication environment requirements, etc.
The warranty period is 1 year, and non-human-caused parts failures are eligible for free replacement within a year, except for batteries.
For batch order, if required training and on site installation and debugging, we can dispatch engineer abroad to assist, the cost will be counted separately.
Can I purchase products which are not shown on the website?
Yes. Please send us your detailed requirements and we will try to help with your specific needs.
How to make payment?
You can pay us by Paypal, L/C, T/T and West Union, etc.
Can you offer the customers product sample?
Yes. After receiving your inquiry, we will arrange to send the sample within 3 days.
How do you pack the goods?
According to customer's request.
Can you also offer the service with OEM and ODM?
Yes. We can offer OEM/ODM service. Please send us your brand information and specification.
How long is the warranty of your products?
Generally, it's one-year-warranty. During the warranty period, we offer you free maintenance.
