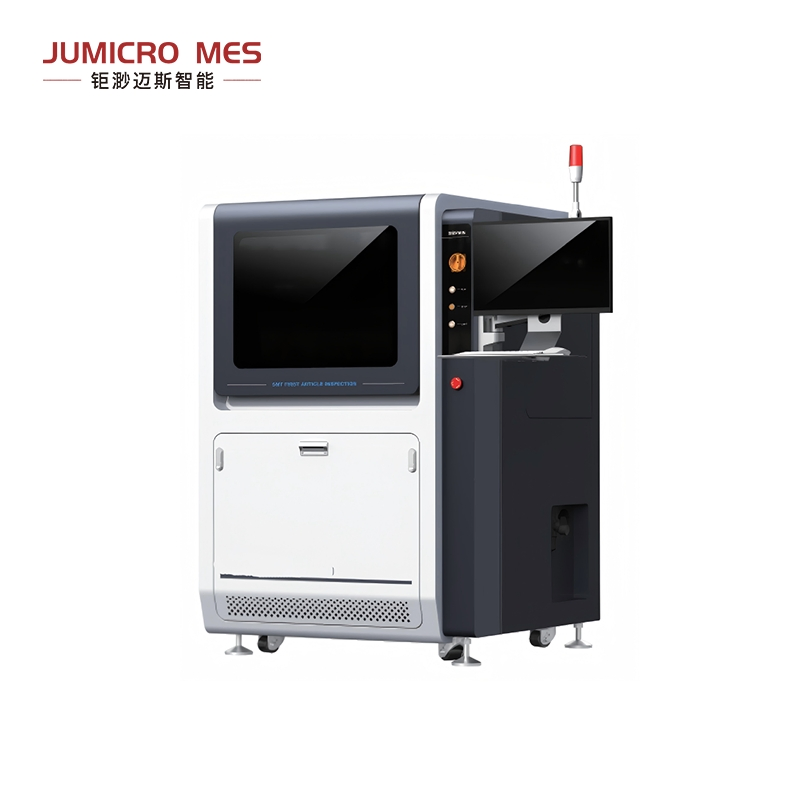

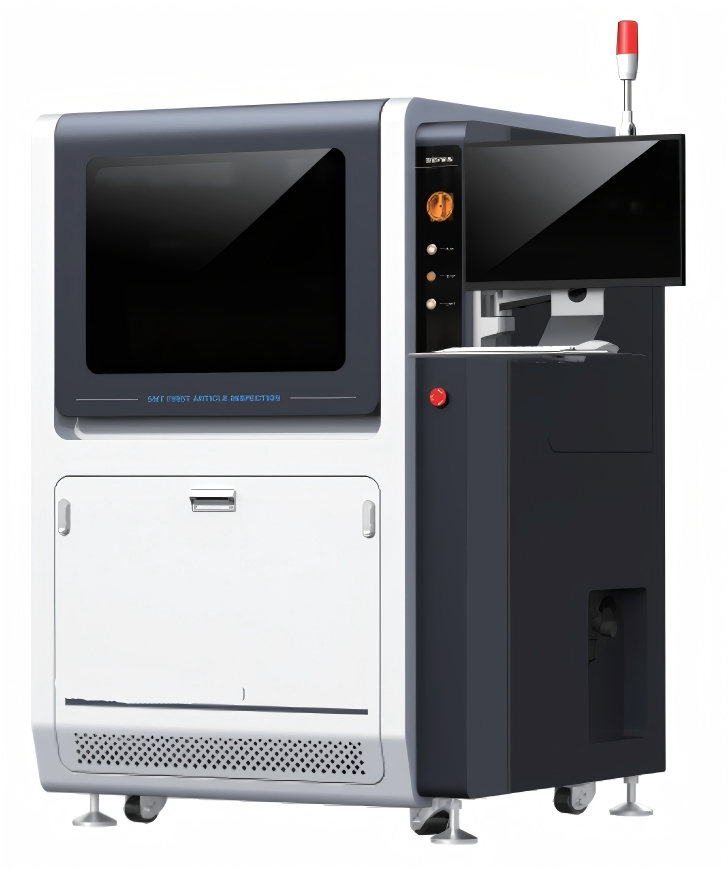

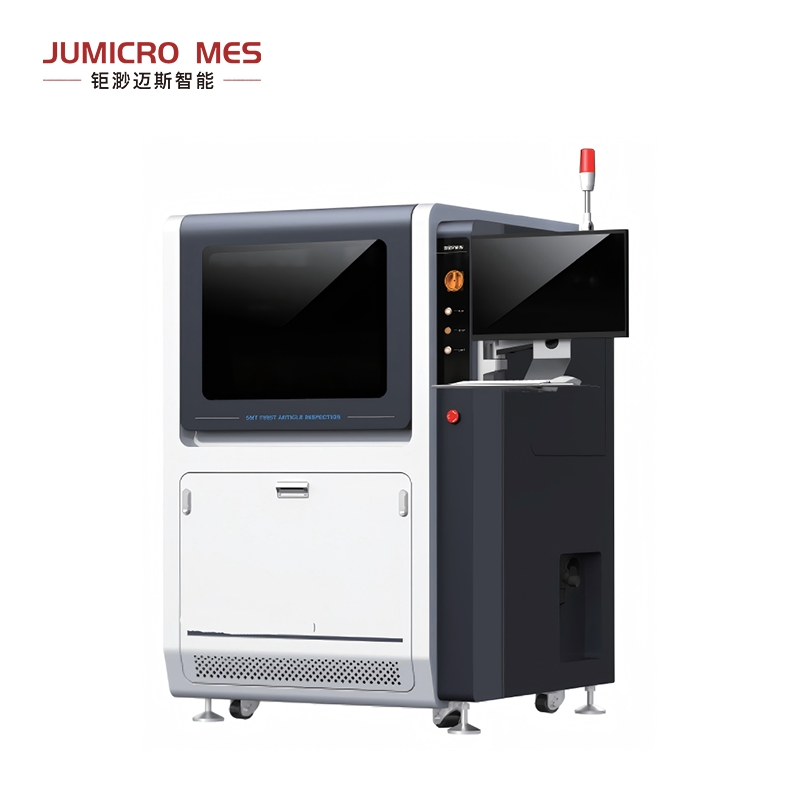

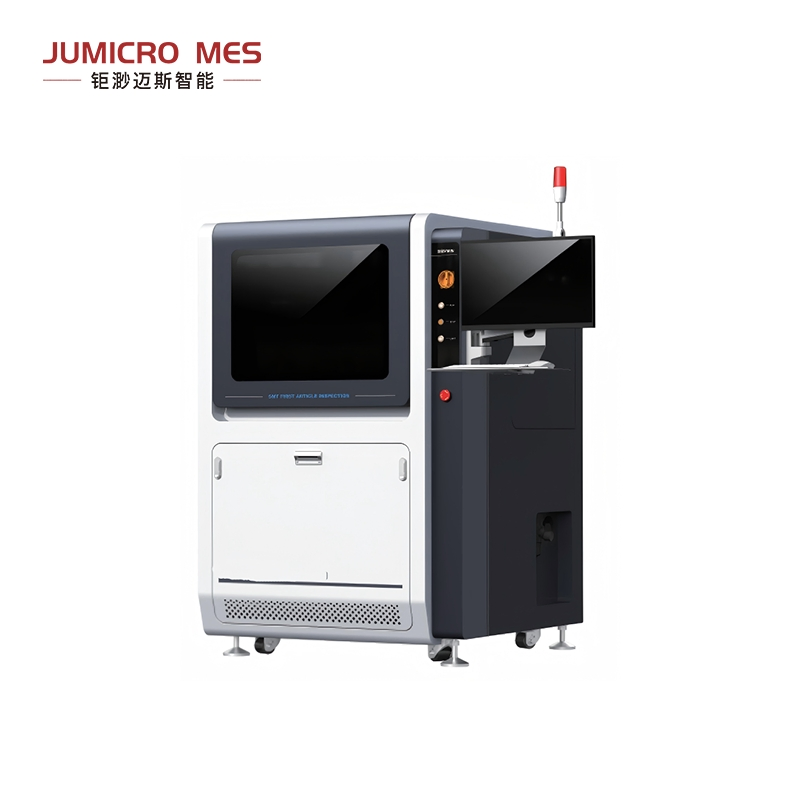

Offline Detection First Article Inspection System with Flexible Element Angles

Product Specifications

Device type	JMSJJC-FAl860
Device size	Width 1150mm x depth 1620mm x height 1650mm
Weight of equipment	800KG
Detection mode	Offline detection
Specifications of detectable components	For sizes up to 01005 in the British system, only one set of probes is needed to test all components
Test content	1. Measurement: resistance, capacitance and inductance are automatically measured by probes, and the test results are automatically determined.
Test content	2. Character detection: IC, transistor and other automatic optical character inspection is used to quickly check the screen printing and polarity.
LCR bridge	Test frequency: 20Hz~300KHz basic accuracy: 0.05%
	Measurement display range: R:0.01m ohms-99.9999M ohms
	L:0.01nH~9999.9H
	C:0.00001pF~9.9999F
	The test software automatically controls the selection of measurement positions and parameters
SPC process control	The test data can be recorded throughout the process, and reports in PDF format can be output. The test scenario can be restored later to provide traceability basis
Element Angle	Support Angle 0~±90°
MES system connection	Open communication interface is available
PCB range of sizes	50×50mm~550×750mm
Net height above and below PCB	The height of the upper surface of the PCB is 35mm
Net height above and below PCB	PCB lower surface: 50mm
Signal interface	/

Main Product

Offline Detection First Article Inspection System with Flexible Element Angles

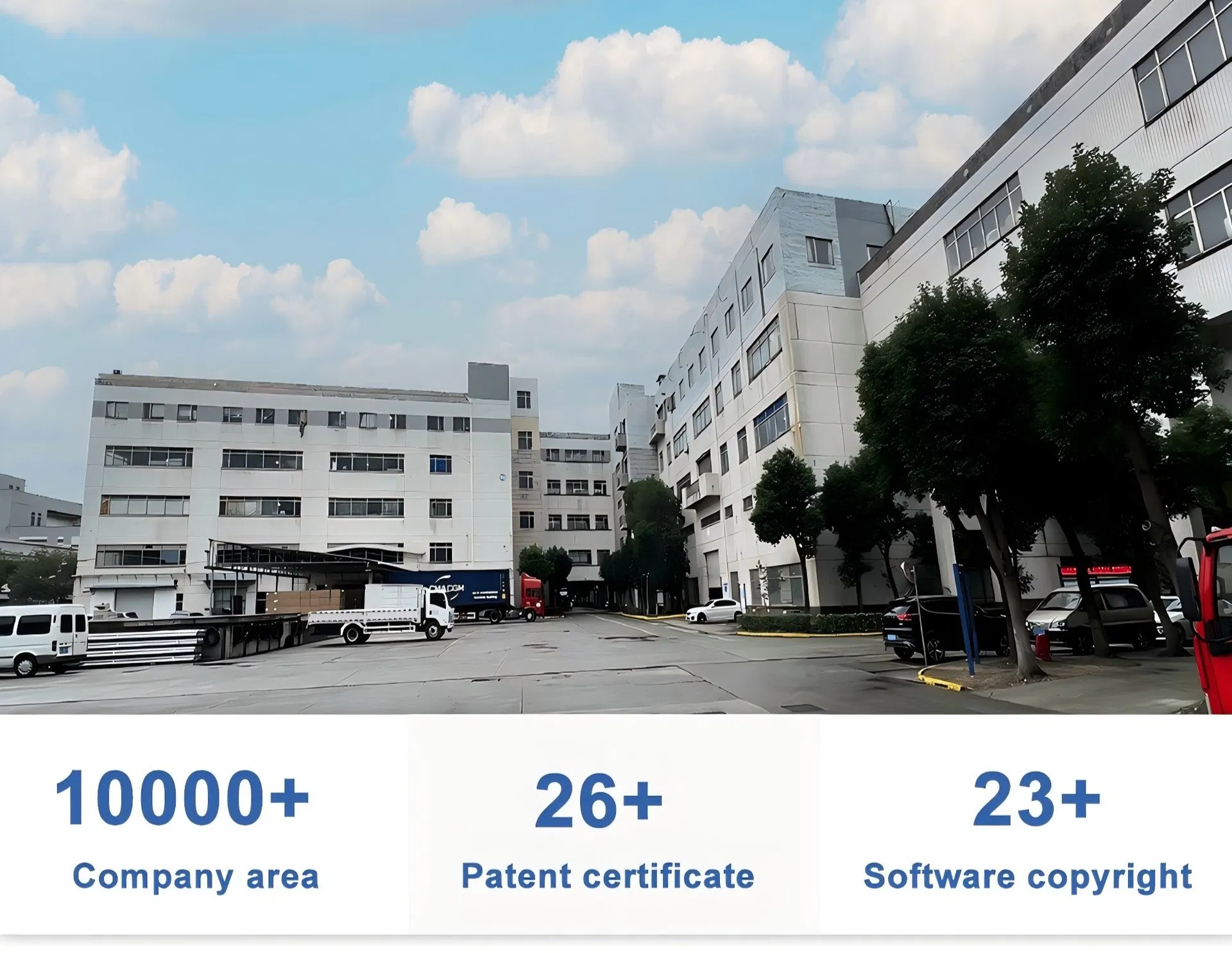

Company Profile
