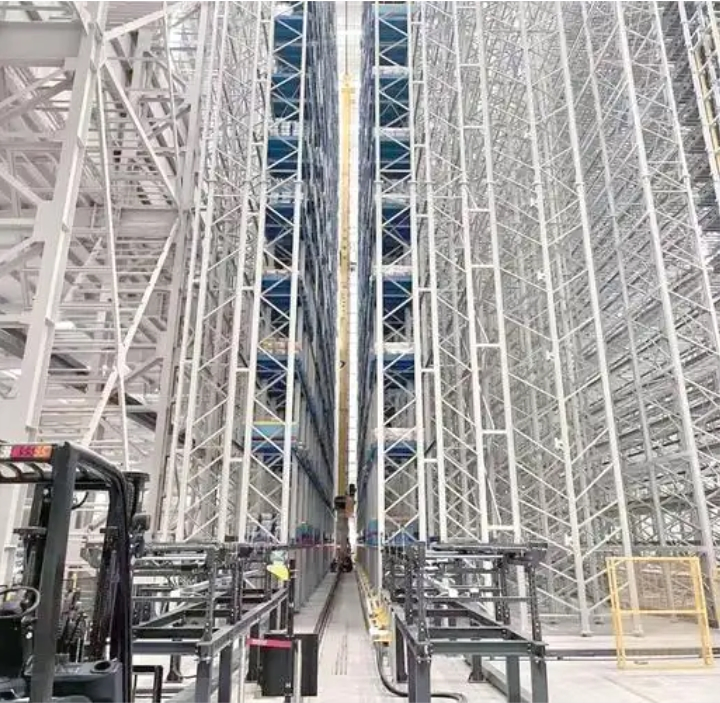

Automated Storage and Retrieval System as/RS Management for Steel Coils Warehousing

Product Description

Automated Storage and Retrieval System for Steel Coils Warehousing
The intelligent stereoscopic warehouse, also known as the automated stereoscopic warehouse or the Automated Storage and Retrieval System (AS/RS), is an intelligent warehousing system that integrates mechanical equipment, electronic control, and information technology, capable of fully automating the entire process of goods storage, retrieval, handling, inventory taking, and management. Its core logic is "expanding space vertically, replacing manual labor with equipment, and driving management with data". It stores goods vertically through high-rise stereoscopic shelves and, in conjunction with automated handling equipment and computer management systems, achieves rationalization of high-rise warehouses, automation of storage and retrieval, and simplification of operations.
Specification
System composition
  • 1. High-layered storage rack: made of reinforced steel materials, the height can reach above 20 meters in vertical.
  • 2. Alley stacking machine: steer in different alleys to store or retrieve goods automatically, it's the main transferring machine.
  • 3. Transferring system: transfer the goods to stacking machine or retrieve goods from stacking machine.
  • 4. AGV/AMR system: automatic leading carrying shuttles, steer in warehouse, realize the flexible transferring in different areas.
  • 5. Automatic control system: the underlying control system that drives various devices is currently mainly based on fieldbus technology to achieve precise control of the equipment.
  • 6. WMS/WCS systems: softwares, for controlling hardwares.
Automated Storage and Retrieval System AS/RS Management for Steel Coils Warehousing
AS/RS System Layout Overview
AS/RS Operations Video Demonstration
The main types of AS/RS
  • 1. Pallet type: It is suitable for the storage of bulk goods in industries such as automobiles and manufacturing.
  • 2. Miniload type: It is suitable for scenarios such as disassembled picking of electrical components, pharmaceuticals, and e-commerce.
  • 3. Shuttle system: It is suitable for high-density storage, like steel coils.
  • 4. Parent-child system: It is suitable for high-density storage, like steel coils.
  • 5. KIVA system (storage rack to man): Like Amazon goods picking.

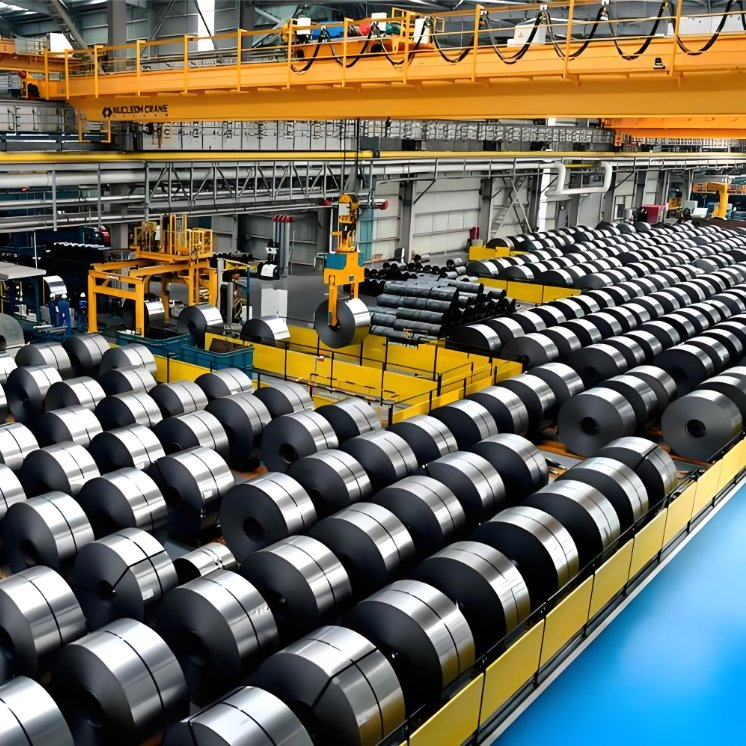

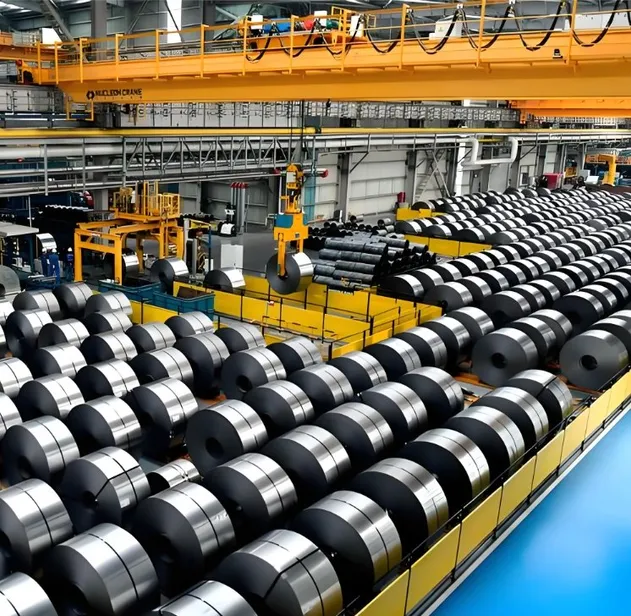

Steel coils lifting
Steel coils lifting

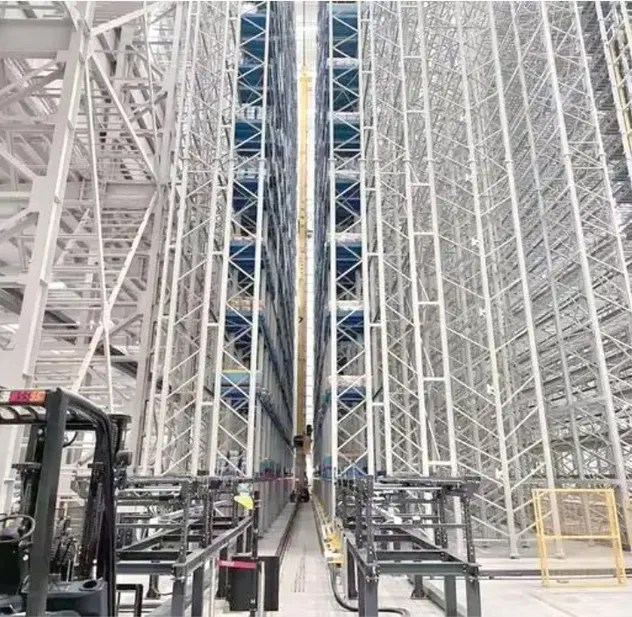

Storage steel rack
Storage steel rack

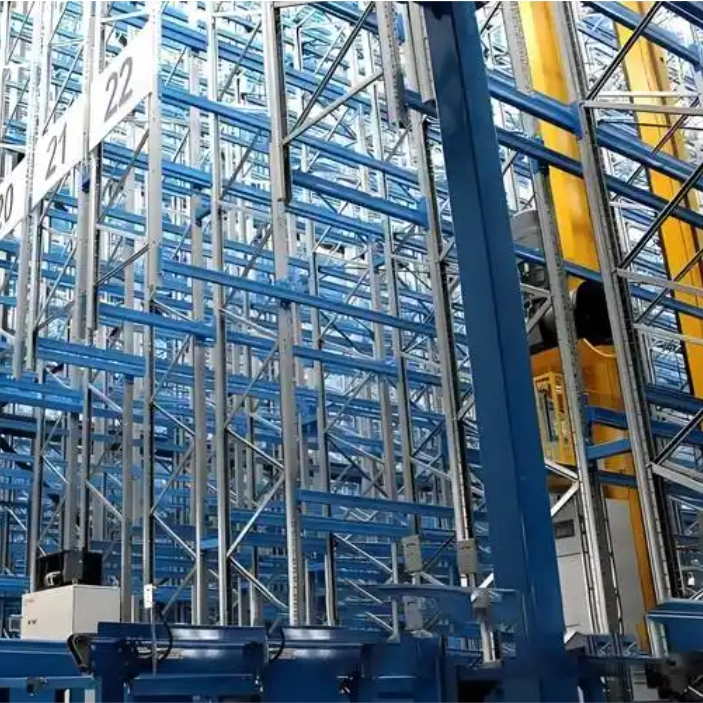

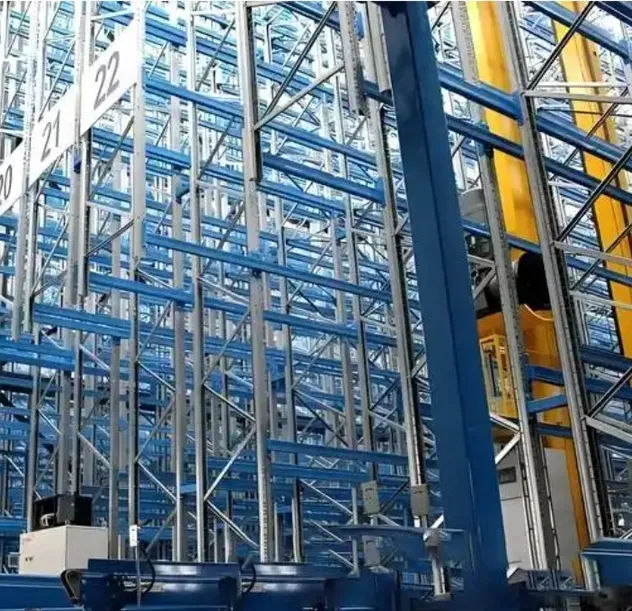

Storage steel rack and stacking machine
Storage steel rack and stacking machine
Technical Specifications for Steel Coils Warehousing
(Custom configurations available upon request.)
Items Specifications Items Specifications
Three-dimensional storage rack 20~30m, reinforced steel Conveying system Roller system, chain system, etc
Heavy alley stacking machine Height < 30m, load 20~30 tons Shuttle Two/four directions
Unmanned overhead crane Lifting weight 20~50 tons Lifter between racks Common 1~60 tons
Heavy AGV/RGV Load 5~35 tons coil Rotary/Transfer cart To enter or move out coils
WMS: warehousing management system, it's the "Brain" of the system, usually integrates with ERP.
WCS: warehousing control system, it's the middle layer between WMS and devices, responsible for decomposing instructions.
MES: manufacturing execution system, can integrate with WMS and WCS.
After Sales Service
Standard Warranty

1~3 years system warranty support.

Extended Warranty

Optional extended coverage up to 3~5 years.

Global Support

24/7 technical assistance and prompt spare parts supply.

Training Services

On-site installation, commissioning, remote technical guidance, and maintenance training.

R&D and Manufacturing Capabilities

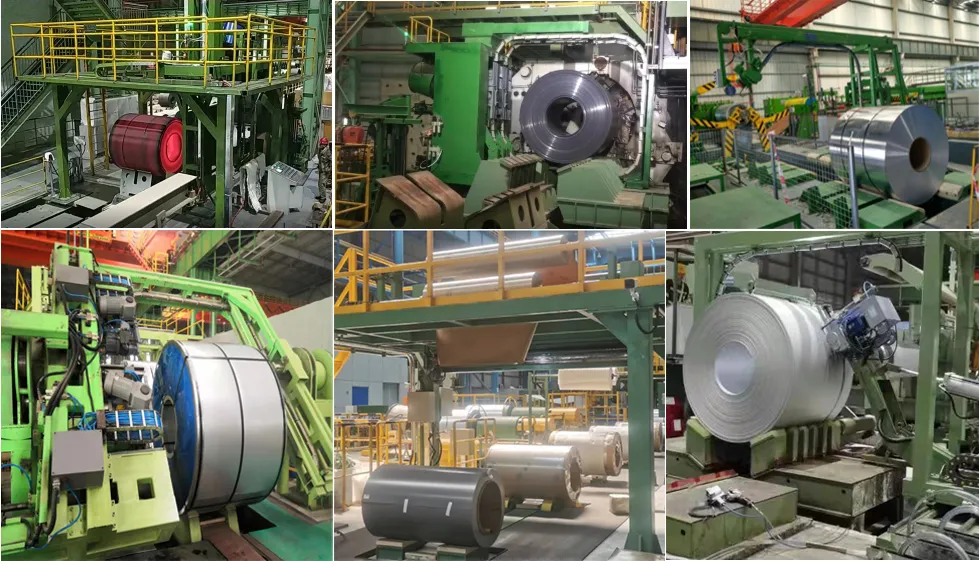

R&D Center
Production Facility

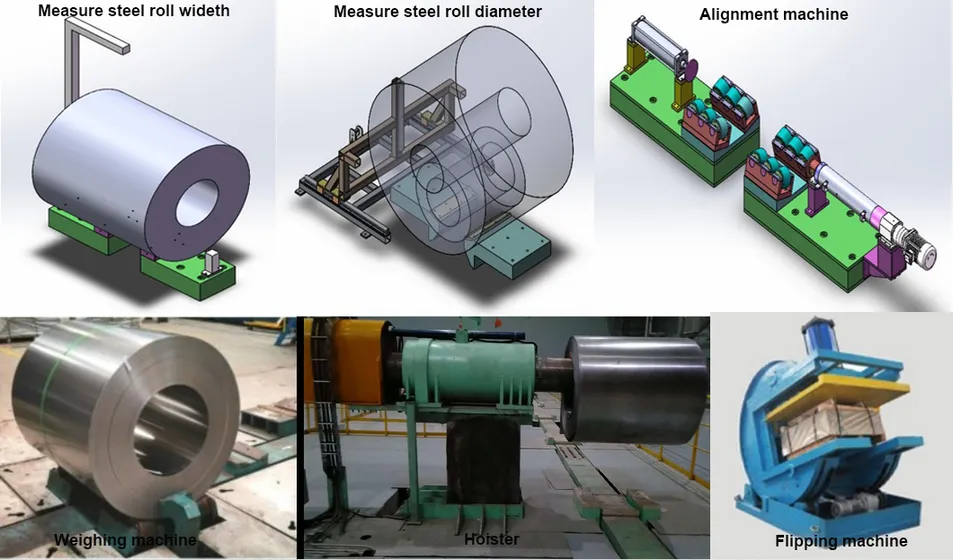

Manufacturing Center
R&D, Manufacturing

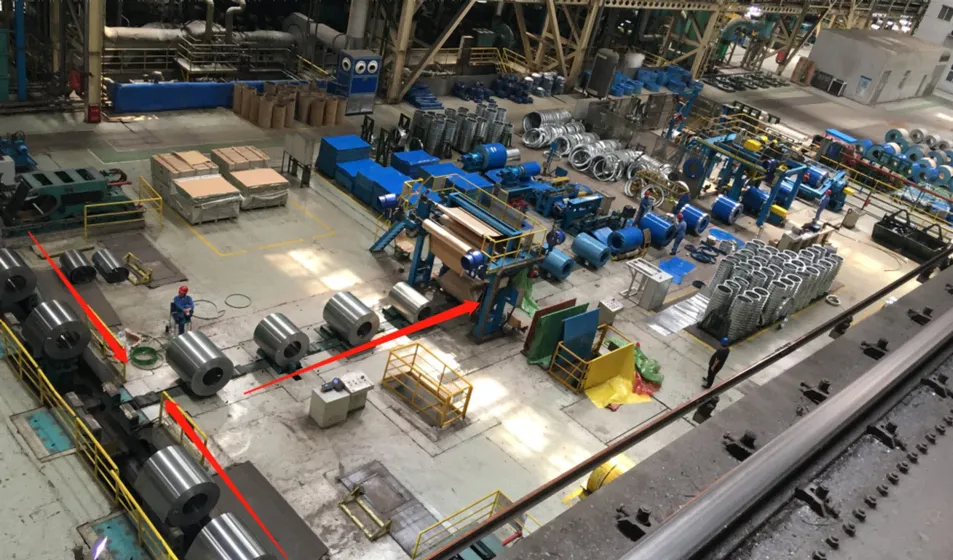

Steel coils packaging line
Steel coils packaging line
Frequently Asked Questions (FAQ)

What's the lead time for orders?

Standard models ship in 180~270 days; customized units require 270~290 days.

Do you provide after-sales service overseas?

Yes, we support on-site installation and commissioning, as well as comprehensive operational personnel training worldwide.

What documents do you provide for export?

We provide a full export package including Technical documents, Manuals, Commercial Invoices, Packing Lists, Bills of Lading, and COC (Certificate of Conformity), etc.

What components make up the automated storage system?

The system consists of high-layered storage racks, alley stacking machines, transferring systems, AGV/AMR systems, automatic control systems, and WMS/WCS software integrations.

What are the primary types of AS/RS systems you offer?

The systems include Pallet type, Miniload type, Shuttle systems, Parent-child systems, and KIVA systems, depending on specific industry requirements.

Can the technical specifications be customized for steel coil operations?

Yes, all storage racks, stacking machine heights, crane lifting capacities, and WMS software controls are fully customizable to meet specific warehouse layout demands.
