| Parameters | Economic Type | Standard Type | Advanced Type | |
|---|---|---|---|---|
| Outline |  |
 |
 |
|
| Loading Capacity Max. | Max 1500kg | Max 1500kg | Max 1500kg | |
| Move | Running Speed | Vmax_empty: 1.0m/s Vmax_full: 0.8m/s |
Vmax_empty: 1.0m/s Vmax_full: 0.8m/s |
Vmax_empty: 1.5m/s Vmax_full: 1.0m/s |
| Drive Motor | Domestic brush servo motor 48VDC 600W | Domestic brushless servo motor 48VDC 600W | Imported brushless servo motor 48VDC 600W | |
| Servo Driver | Domestic customized servo driver | Domestic customized servo driver | Imported brushless servo driver | |
| Lift | Lift Motor | Imported motor 48VDC 500W | Imported motor 48VDC 500W | Imported motor 48VDC 500W |
| Lift Height | ≤45mm | ≤45mm | ≤45mm | |
| Move Positioning: Laser Sensor | Germany P+F/SICK | Germany P+F/SICK | Germany P+F/SICK | |
| Pallet Positioning: Laser Sensor | Germany P+F/SICK | Germany P+F/SICK | Germany P+F/SICK | |
| Lift Control: Proximity Switch | Germany P+F | Germany P+F | Germany P+F | |
| Object Detection: Photosensor | Germany P+F/SICK | Germany P+F/SICK | Germany P+F/SICK | |
| Control System | Siemens S7-200 PLC | Siemens S7-200 PLC | Siemens S7-200 PLC | |
| Remoter: two-way | Customized IMT | Customized IMT | Customized IMT | |
| Power Supply | Lithium battery | Lithium battery | Lithium battery | |
| Battery Capacity | 48V, 30AH | 48V, 30AH | 48V, 30AH | |
| Running Time | ≥8h | ≥8h | ≥8h | |
| Charging Time | 3~4H | 3~4H | 3~4H | |
| Battery Lifetime | Charge times ≤1000 | Charge times ≤1000 | Charge times ≤1000 | |
| Operation Mode | Remote control | Remote control | Remote control | |
| Running Noise | ≤60db | ≤60db | ≤60db | |
| Painting Color | frame(black) others(light gray) | frame(black) others(light gray) | frame(red) others(light gray) | |
| Ambient Temperature | Temp: 0ºC~50ºC Humidity: 5% ~ 95% |
Temp: 0ºC~50ºC Humidity: 5% ~ 95% |
Temp: 0ºC~50ºC Humidity: 5% ~ 95% |
|
To ensure the stability and safety of our racking structures and to provide you with peace of mind for the secure use of our products, we have implemented multiple safety measures and employed high-standard structural design.
| Products Support | Details |
|---|---|
| Free Consultation | Yes, Any Questions You Can Consult With Free. |
| Support For Custom | Yes |
| Free Design | Yes, CAD/PDF/3D Drawing |
| Free Sample | Available (Delivery Cost By Buyer) |
| 3D Sample | Yes, 1:1 3D Sample, Save Your Time And Cost of Trial and Error |
| Pre-installation | Yes |
| Capacity Test | Yes, If Needed. |
| OEM & ODM | Available |
| Lead Time | 15-20 Days For Regular Pallet Racking, One Container |
| Installation Service | Yes, Submit the Installation Drawing Or Video, and send the Engineer To Your Site If Needed. |
| Maintenance Service | Yes, We Submit a Free Maintenance Guide. |
| Repair Service | Yes, We Submit Repair Services. |

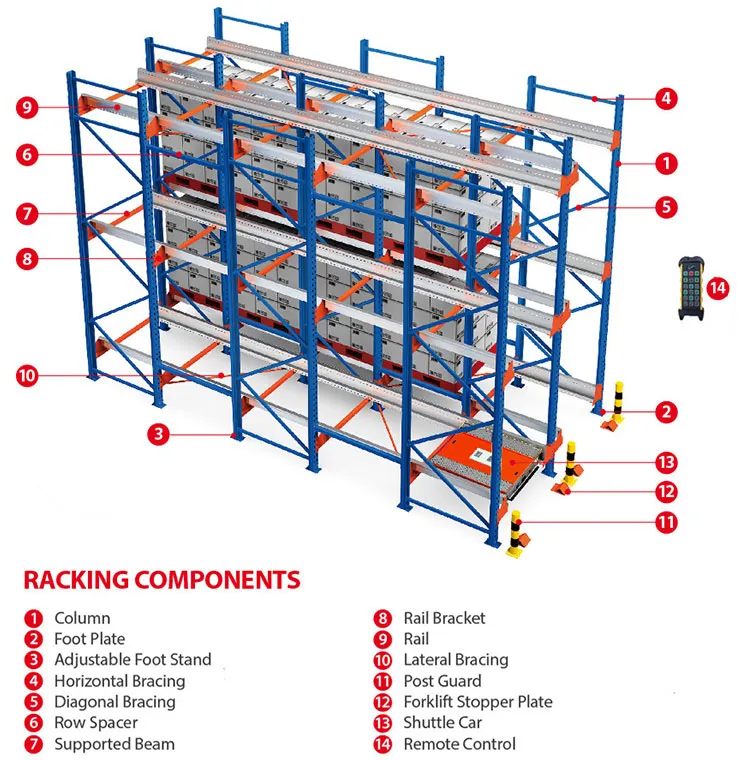

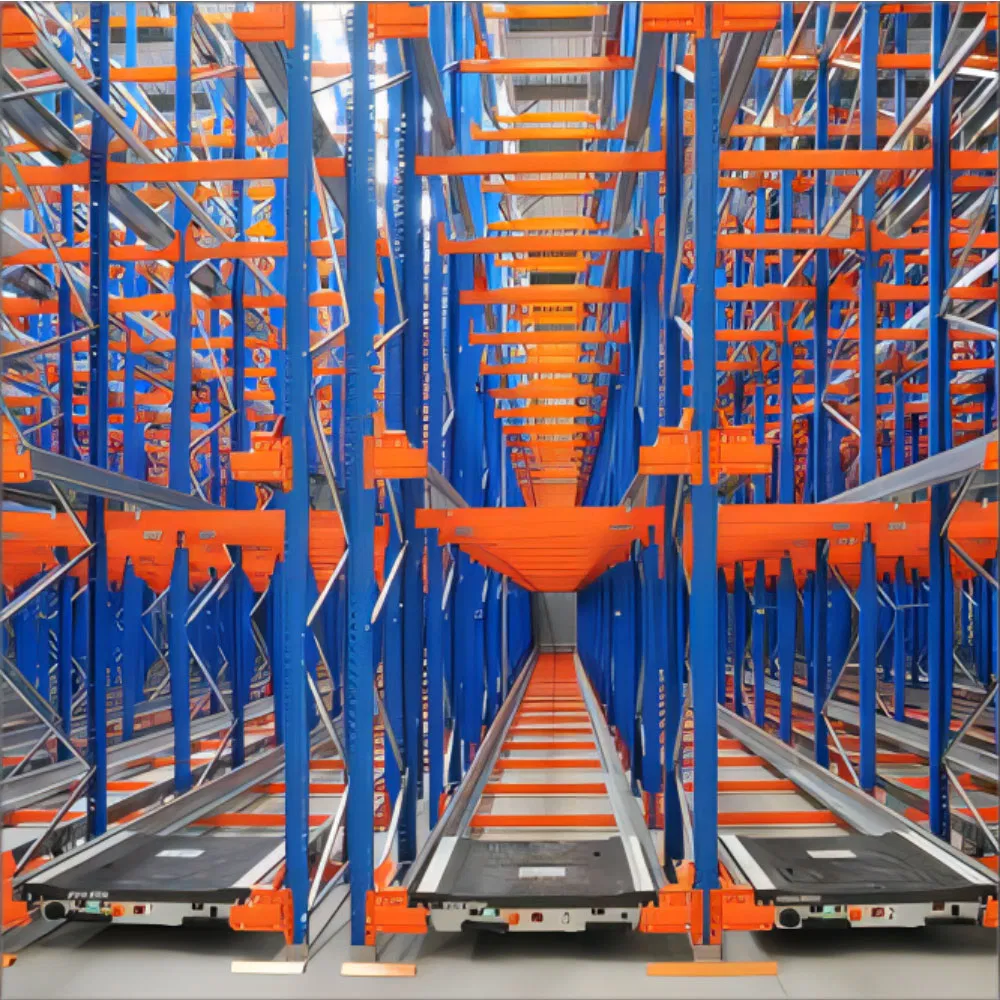

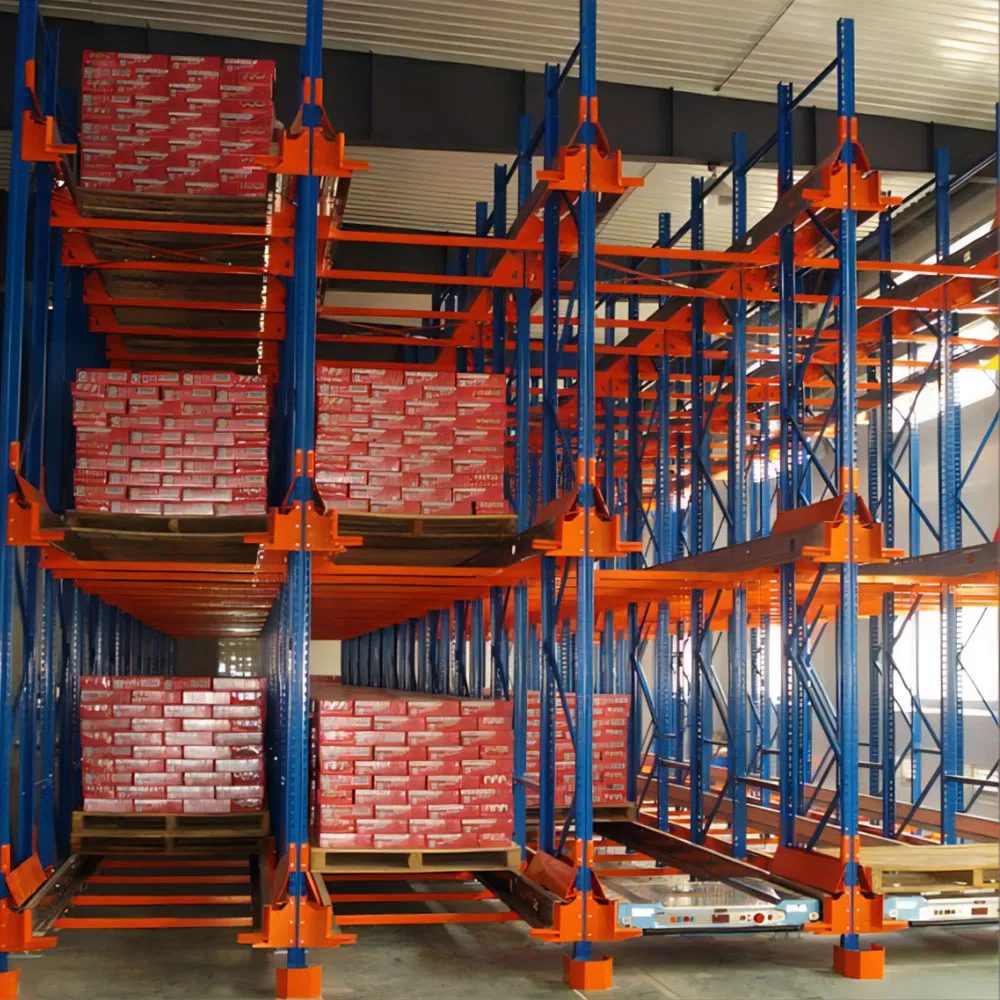

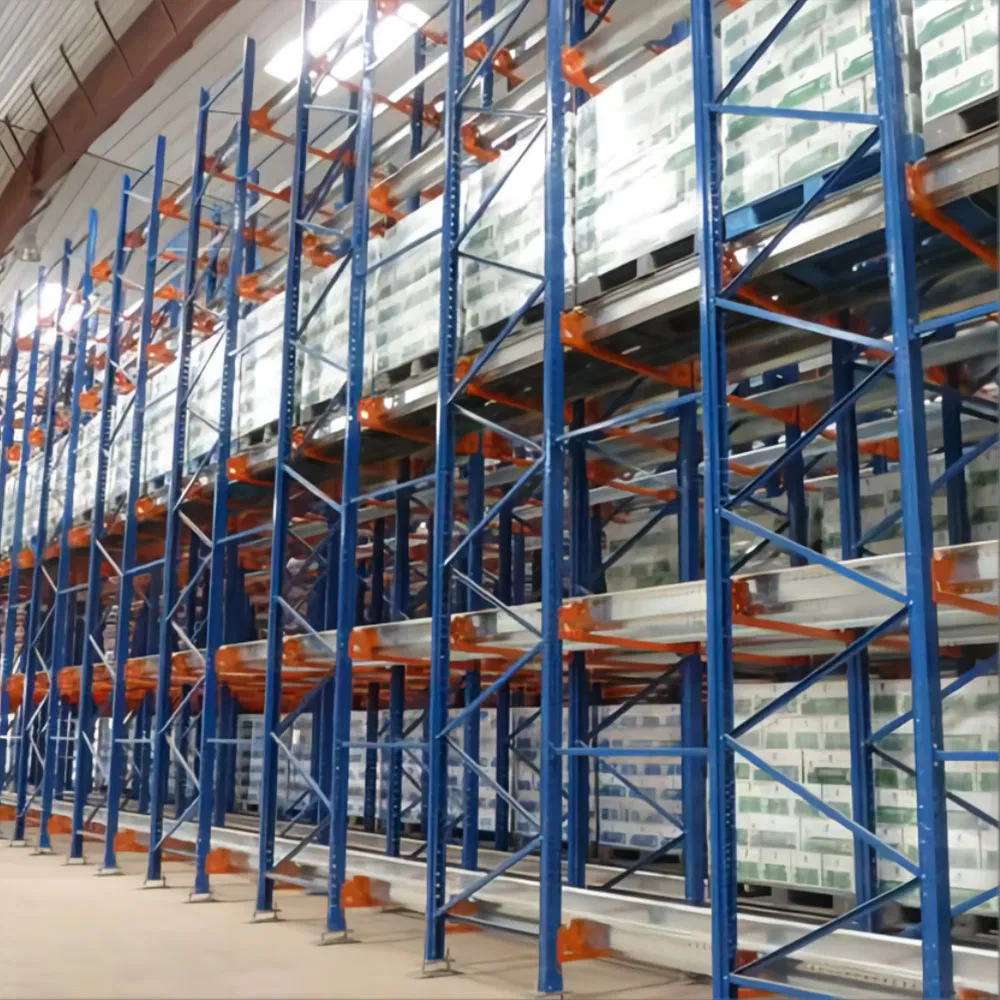

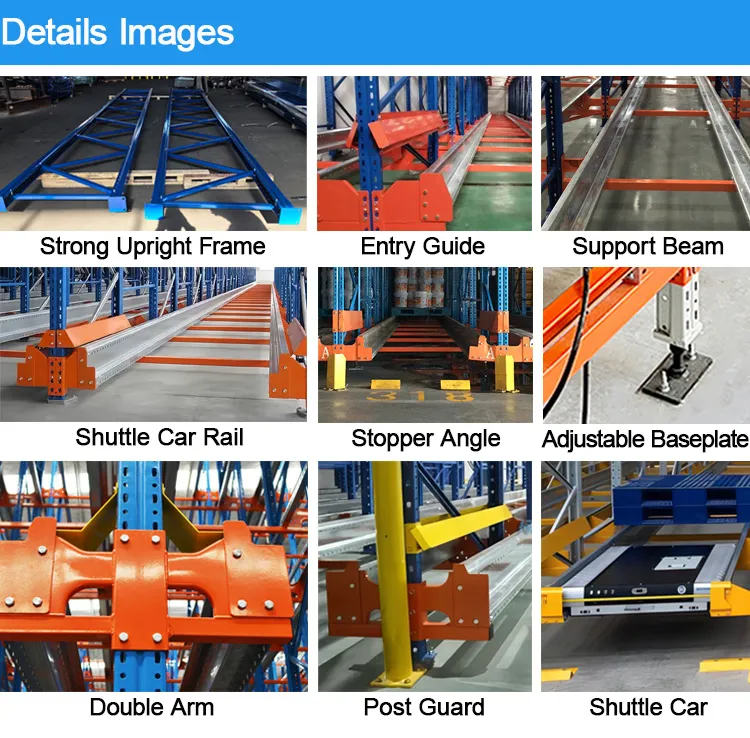

A pallet shuttle rack system consists of the following premium components:

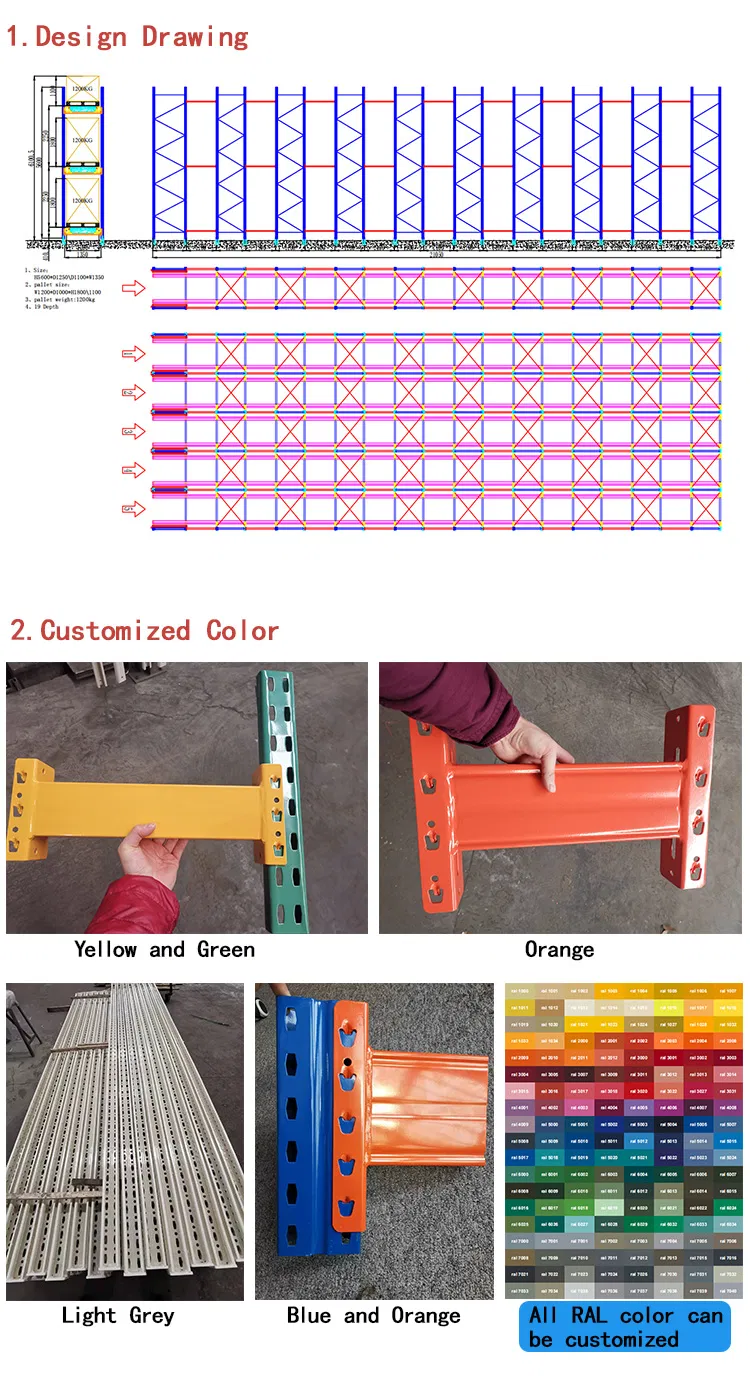

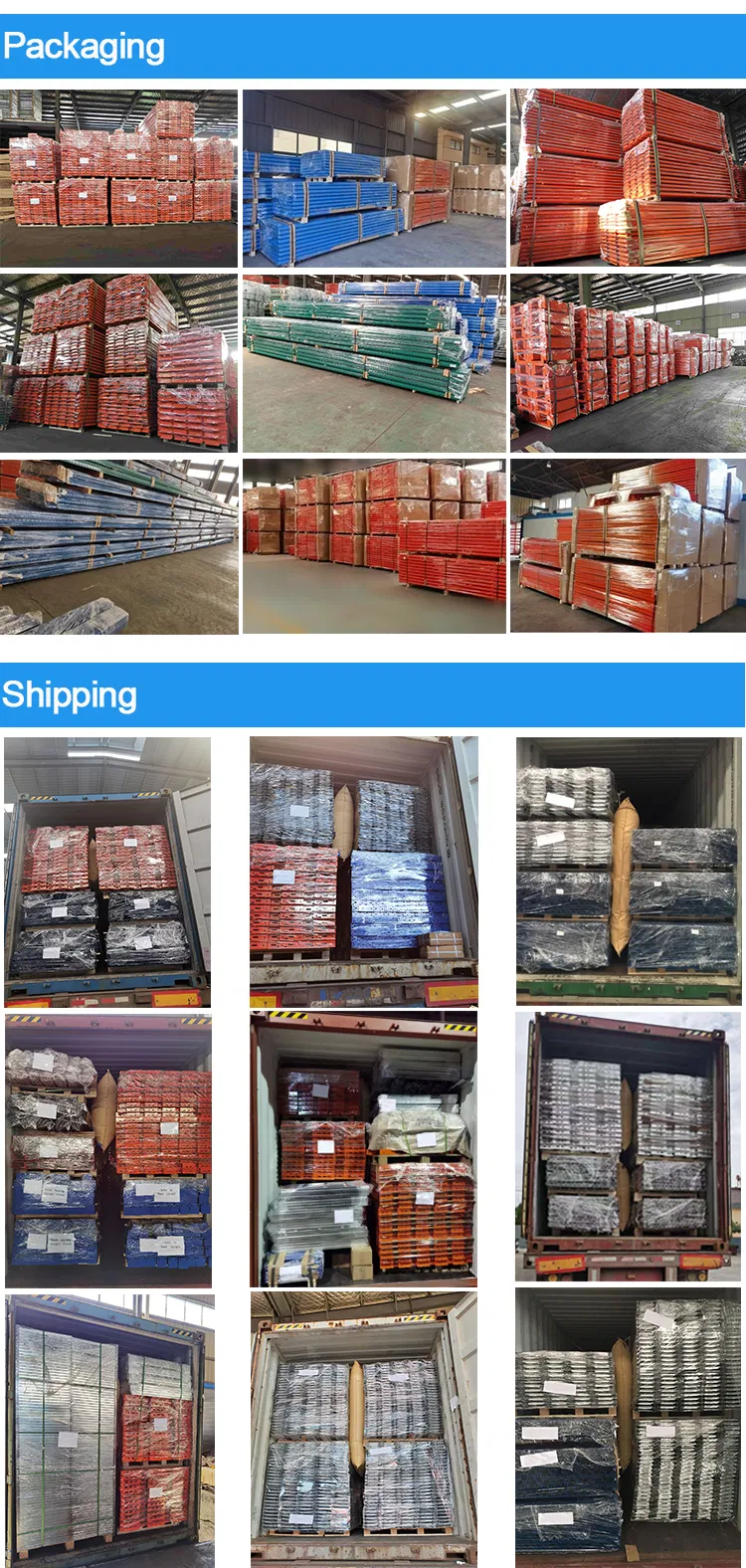

We support extensive customization services for our clients, including drawing configurations, custom colors, specialized packaging, and sizing requirements.

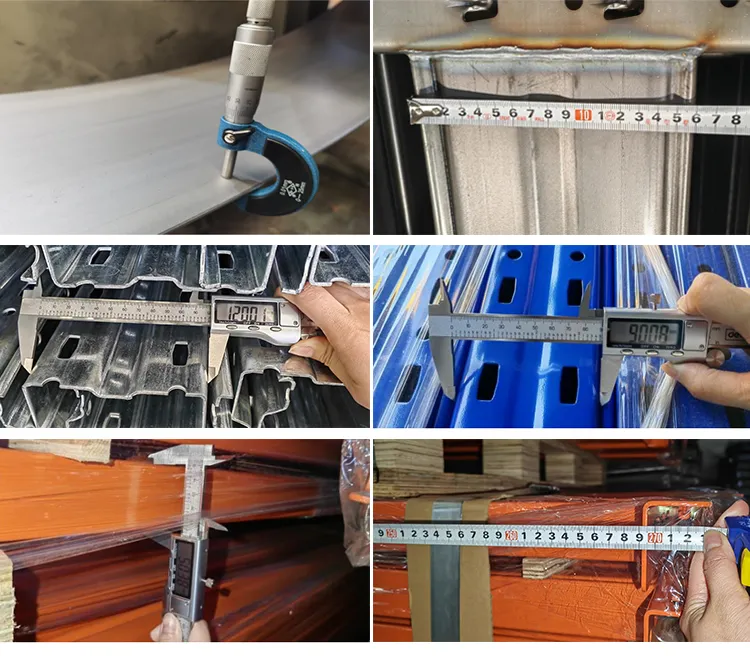

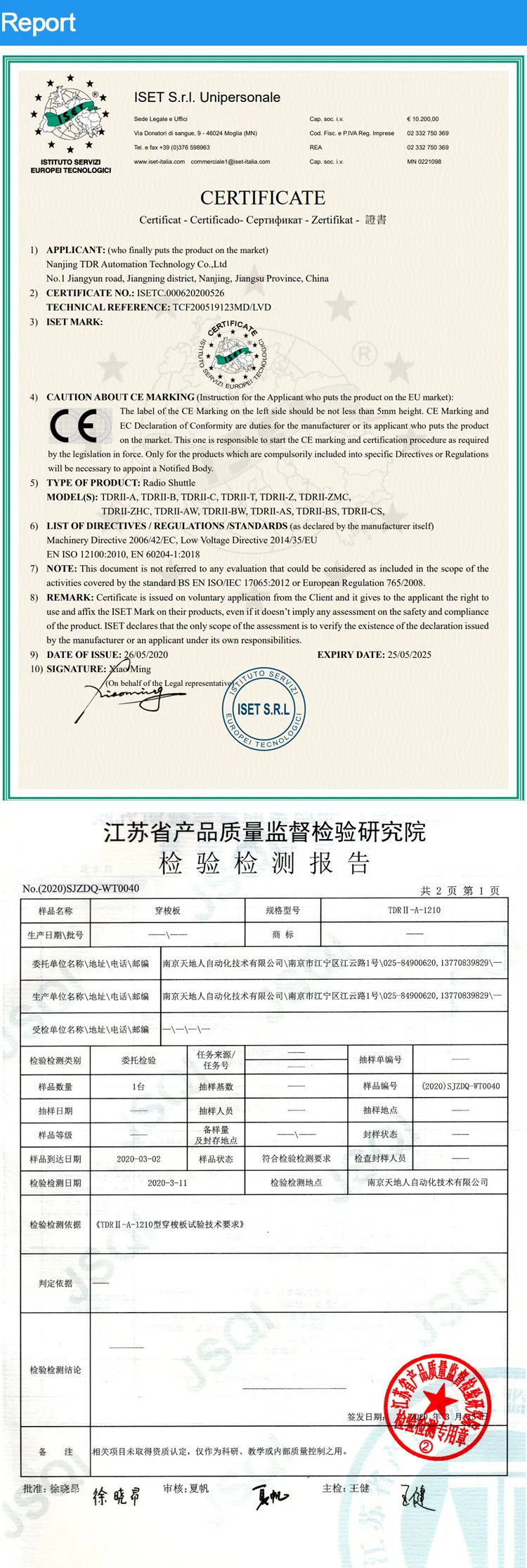

Our systems undergo rigorous quality checks by a professional inspection team consisting of 15 people. We monitor and test the pallet racking quality at every stage of the production process to guarantee high durability.

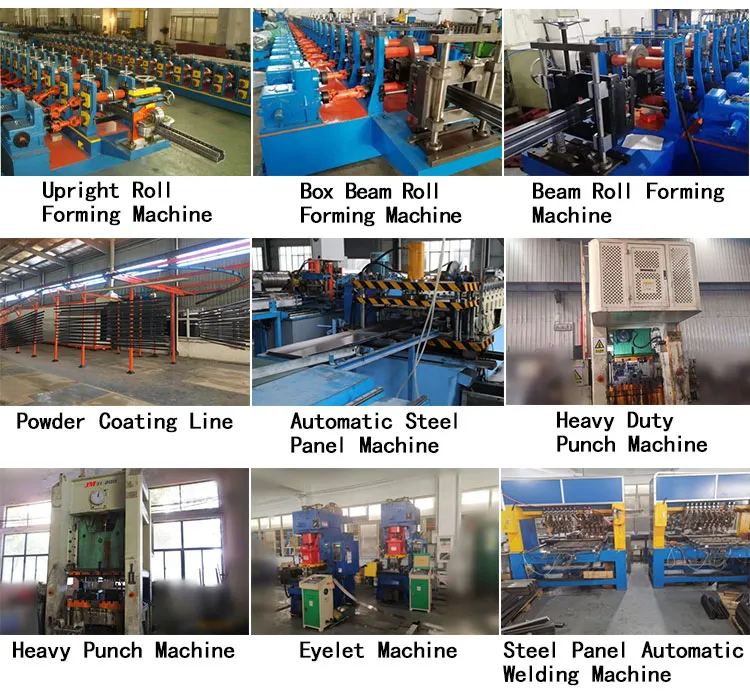

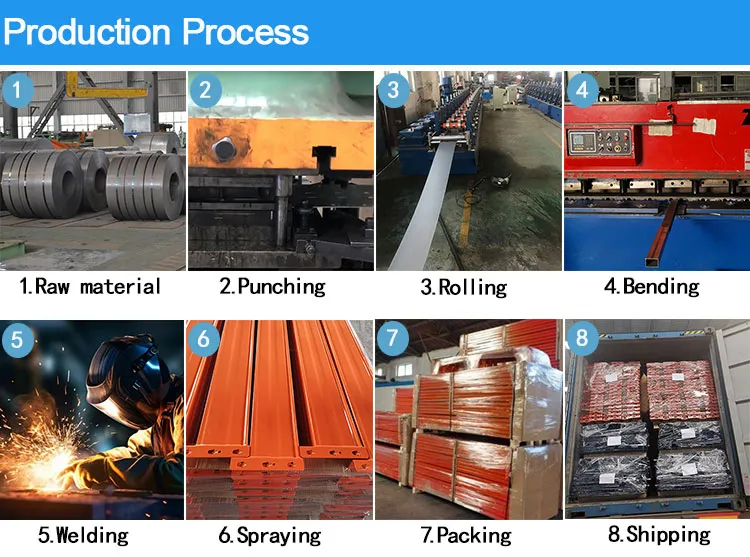

We utilize a variety of advanced manufacturing equipment to make sure the delivery time and structural quality are kept within our strict control parameters.

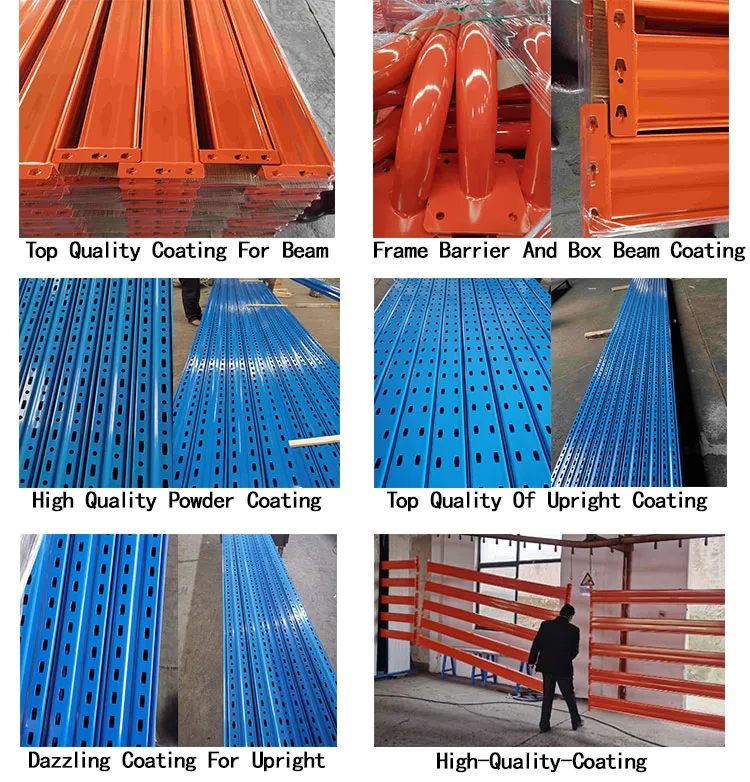

We utilize a double pickling technology to fully oxidize the steel surface, forming a highly effective protective layer. This allows the resin powder to adhere securely to the steel frame, greatly extending your racking system lifespan.
We are dedicated to the production of high-quality racking storage systems, providing optimized configurations to maximize space efficiency and inventory management.

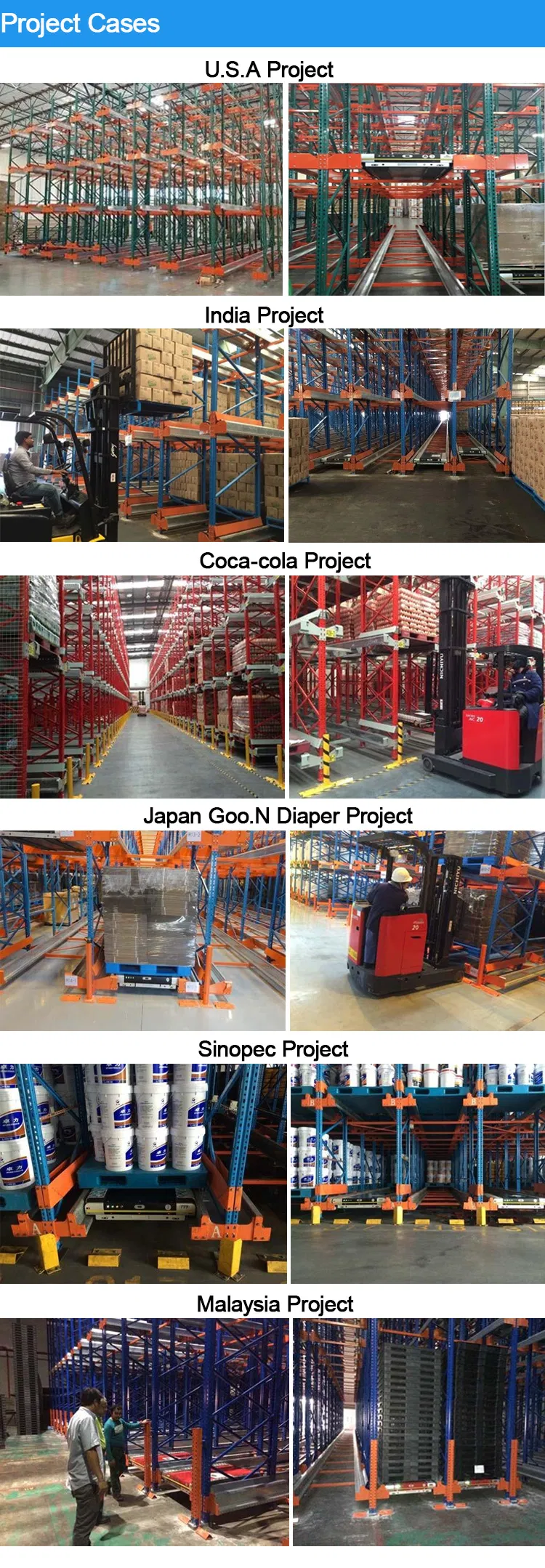

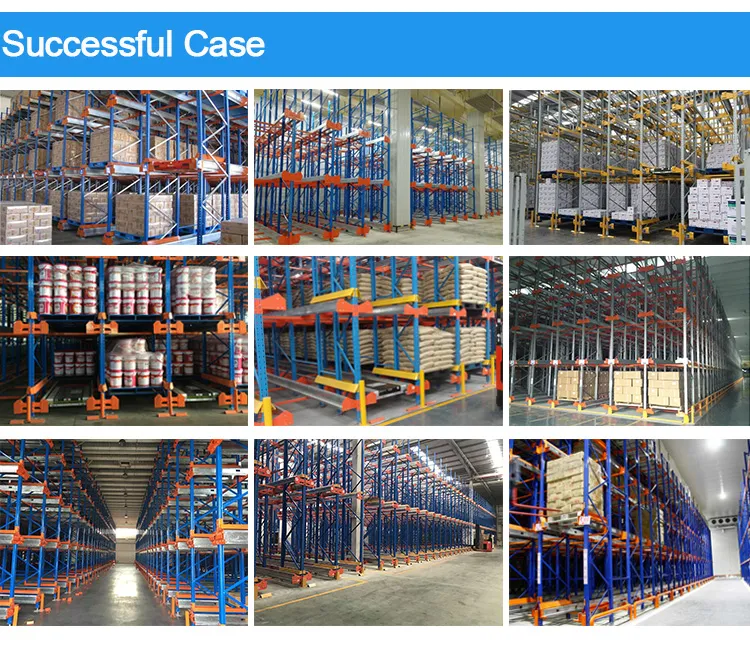

With over 23 years of exporting experience, we have shipped our systems to over 85 countries worldwide. Our automated facility and state-of-the-art technologies provide the optimal framework for producing durable warehouse solutions. We offer a 10-year warranty to protect your racking system, ensuring that user satisfaction and reliability always come first.
